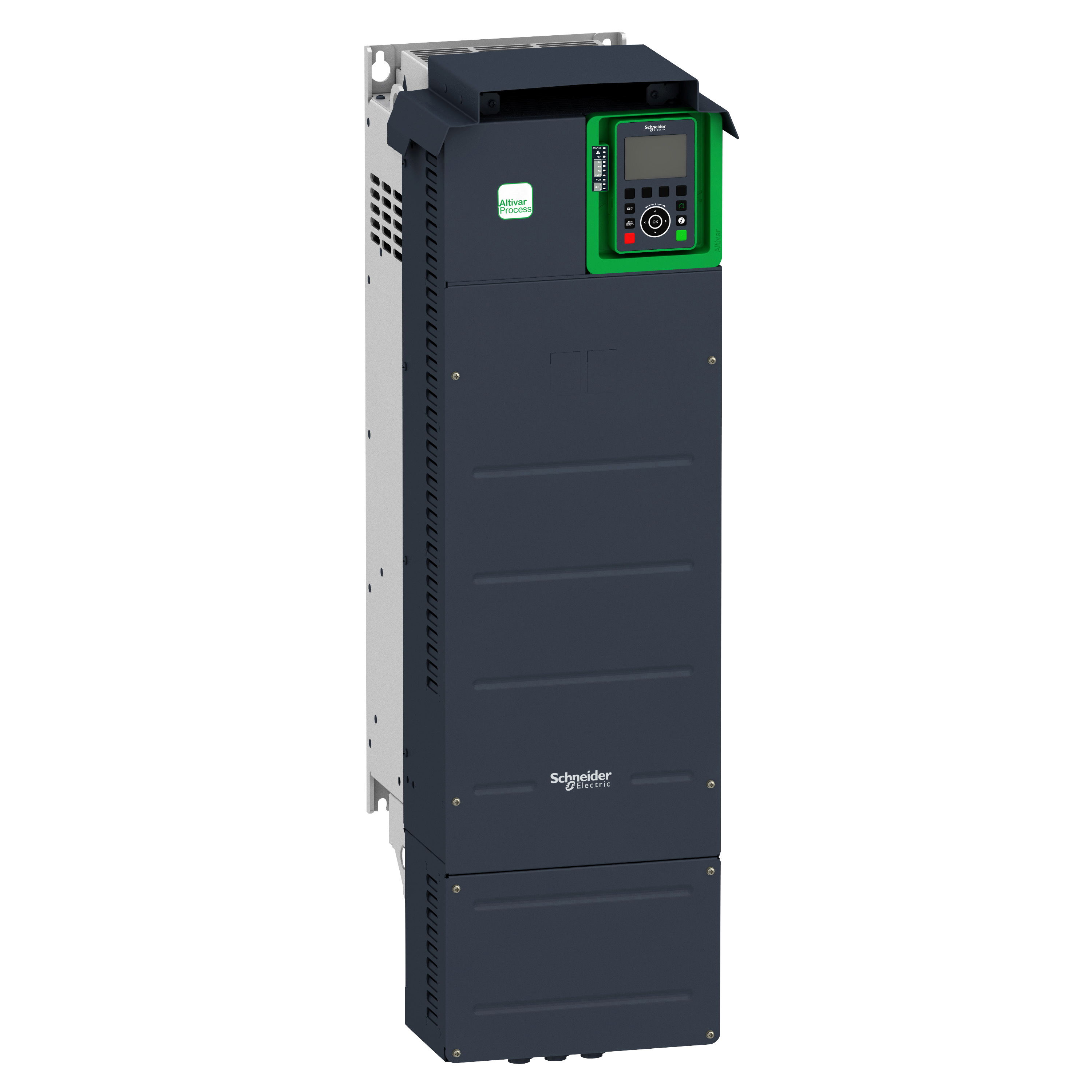

Schneider Electric ATV930D37M3 Altivar™ 3-Phase Variable Speed Drive, 200 to 240 V, 128 A at 200 V/107.8 A at 240 V Normal Duty, 104.7 A at 200 V/88.6 A at 240 V Heavy Duty, 50 hp Normal Duty, 40 hp Heavy Duty, 11.42 in W x 12.81 in D
Custom_Product_Images_Illustration
Schneider Electric ATV930D37M3 Altivar™ 3-Phase Variable Speed Drive, 200 to 240 V, 128 A at 200 V/107.8 A at 240 V Normal Duty, 104.7 A at 200 V/88.6 A at 240 V Heavy Duty, 50 hp Normal Duty, 40 hp Heavy Duty, 11.42 in W x 12.81 in D
SKUPDW~12041699
MFGR #ATV930D37M3
$/ea
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar™ ATV930, 200 to 240 V, 128 A at 200 V/107.8 A at 240 V Normal Duty, 104.7 A at 200 V/88.6 A at 240 V Heavy Duty, 50 hp Normal Duty, 40 hp Heavy Duty, 11.42 in Width, 12.81 in Depth, 36.3 in Height, IP21 Enclosure, Wall Mounting
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar™ ATV930, 200 to 240 V, 128 A at 200 V/107.8 A at 240 V Normal Duty, 104.7 A at 200 V/88.6 A at 240 V Heavy Duty, 50 hp Normal Duty, 40 hp Heavy Duty, 11.42 in Width, 12.81 in Depth, 36.3 in Height, IP21 Enclosure, Wall Mounting
Alternate Catalog Number ATV930D37M3 Application Industrial Applications ARRA Compliant N Buy American Compliant N Catalog Number ATV930D37M3 Communication Modbus serial;Modbus TCP;EtherNet/IP;Ethernet;2-wire RS 485 Country of Origin IN Currency USD Current Rating 123 A 2.5 kHz heavy duty;149 A 2.5 kHz normal duty A Display Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) EU RoHS Indicator Y Gross Volume Per Pack 16632.00 Gross Volume per Pack Metric 272548.58 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.6020 lb Gross Weight per Pack Metric 60.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 59.0000 in Height [Metric] 59.0000 cm Input Voltage 200...240 V - 15...10 % Item Group 22277 Length 114.5000 in Length [Metric] 114.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548078&lang=en-us Mounting Wall mount Returnable N Size 12.81 in Standard IP21 Substitute Product Catalog Number VW3A1112 Type Variable speed drive;2 RJ45;1 RJ45 UNSPSC 39122001 Width [Metric] 46.0000 cm Brand Square D™ Manufacturer Schneider Electric Depth 12.815 in Width 46.0000 in Industrial Applications Constant torque standard;optimized torque mode;variable torque standard;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;motor screw terminal 95...120 mm² AWG 3/0...250 kcmil;line side screw terminal 70...120 mm² AWG 2/0...250 kcmil;DC bus screw terminal 70...120 mm² AWG 2/0...250 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV930D37M3 |
| Application | Industrial Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATV930D37M3 |
| Communication | Modbus serial;Modbus TCP;EtherNet/IP;Ethernet;2-wire RS 485 |
| Country of Origin | IN |
| Currency | USD |
| Current Rating | 123 A 2.5 kHz heavy duty;149 A 2.5 kHz normal duty A |
| Display | Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 16632.00 |
| Gross Volume per Pack Metric | 272548.58 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.6020 lb |
| Gross Weight per Pack Metric | 60.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 59.0000 in |
| Height [Metric] | 59.0000 cm |
| Input Voltage | 200...240 V - 15...10 % |
| Item Group | 22277 |
| Length | 114.5000 in |
| Length [Metric] | 114.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548078&lang=en-us |
| Mounting | Wall mount |
| Returnable | N |
| Size | 12.81 in |
| Standard | IP21 |
| Substitute Product Catalog Number | VW3A1112 |
| Type | Variable speed drive;2 RJ45;1 RJ45 |
| UNSPSC | 39122001 |
| Width [Metric] | 46.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Depth | 12.815 in |
| Width | 46.0000 in |
| Industrial Applications |
| Constant torque standard;optimized torque mode;variable torque standard;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;motor screw terminal 95...120 mm² AWG 3/0...250 kcmil;line side screw terminal 70...120 mm² AWG 2/0...250 kcmil;DC bus screw terminal 70...120 mm² AWG 2/0...250 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
