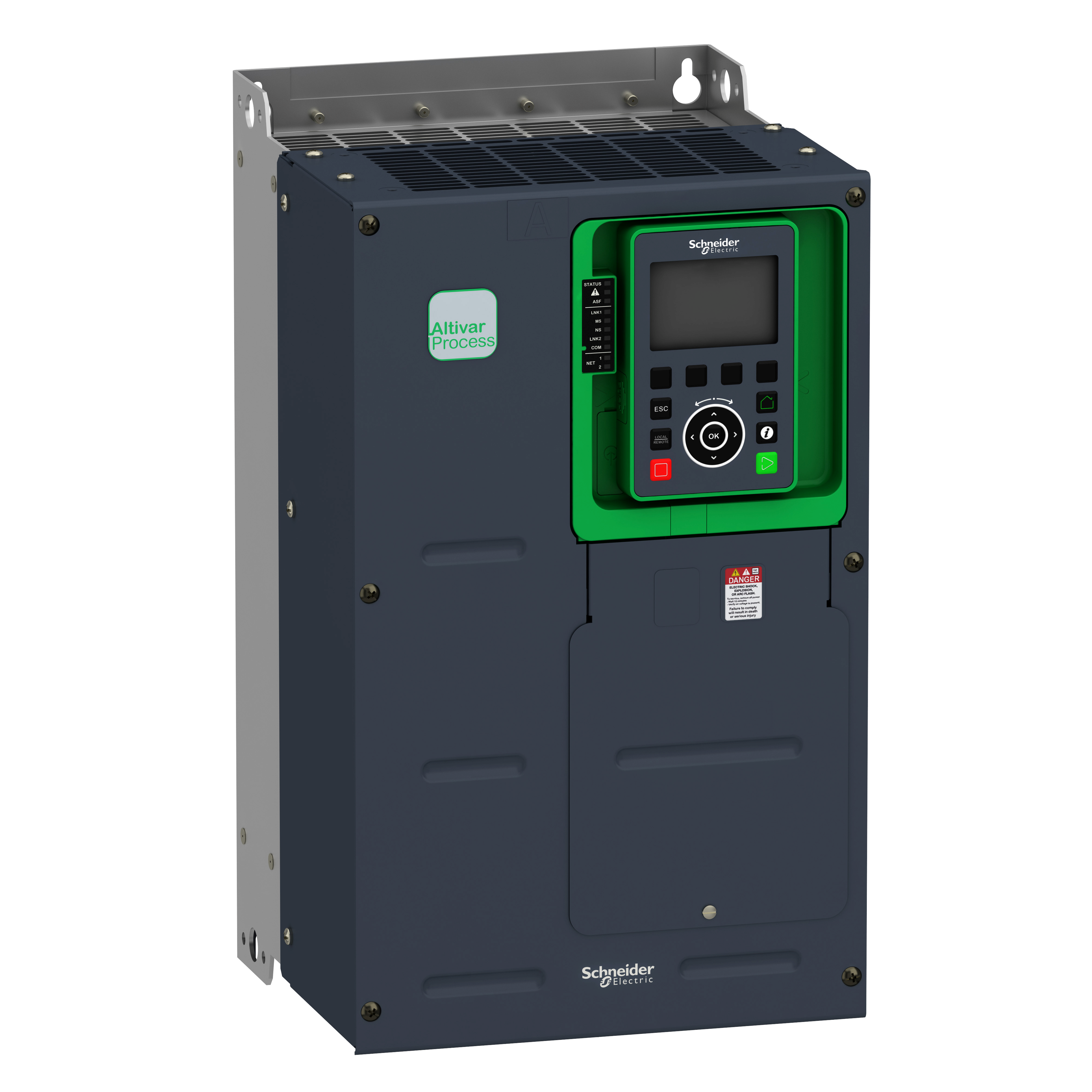

Schneider Electric ATV630U30Y6 Altivar™ Variable Speed Drive, 500 to 690 VAC, 4.7 A at 500 V/4.8 A at 690 V Normal Duty, 3.4 A at 500 V/3.6 A at 690 V Heavy Duty, 3 hp at 500 V Normal Duty, 2 hp at 500 V/3 hp at 690 V Heavy Duty, 9.69 in W x 9.53 in D
Schneider Electric ATV630U30Y6 Altivar™ Variable Speed Drive, 500 to 690 VAC, 4.7 A at 500 V/4.8 A at 690 V Normal Duty, 3.4 A at 500 V/3.6 A at 690 V Heavy Duty, 3 hp at 500 V Normal Duty, 2 hp at 500 V/3 hp at 690 V Heavy Duty, 9.69 in W x 9.53 in D
SKUPDW~12906940
MFGR #ATV630U30Y6
$/ea
Schneider Electric Variable Speed Drive, Series: Altivar™ ATV630, 500 to 690 VAC, 4.7 A at 500 V/4.8 A at 690 V Normal Duty, 3.4 A at 500 V/3.6 A at 690 V Heavy Duty, 3 hp at 500 V Normal Duty, 2 hp at 500 V/3 hp at 690 V Heavy Duty, 9.69 in Width, 9.53 in Depth, 16.54 in Height, IP00/IP20 Enclosure, Wall Mounting
Schneider Electric Variable Speed Drive, Series: Altivar™ ATV630, 500 to 690 VAC, 4.7 A at 500 V/4.8 A at 690 V Normal Duty, 3.4 A at 500 V/3.6 A at 690 V Heavy Duty, 3 hp at 500 V Normal Duty, 2 hp at 500 V/3 hp at 690 V Heavy Duty, 9.69 in Width, 9.53 in Depth, 16.54 in Height, IP00/IP20 Enclosure, Wall Mounting
Alternate Catalog Number ATV630U30Y6 Application Material Handling an Hoisting Applications ARRA Compliant N Buy American Compliant N Catalog Number ATV630U30Y6 Communication 2-wire RS 485;Ethernet Country of Origin US Currency USD Current Rating 3.1 A 4 kHz heavy duty;4.2 A 4 kHz normal duty Display 1 LED (red) for presence of voltage;3 LEDs (dual colour) for embedded communication status;3 LEDs for local diagnostic;4 LEDs (dual colour) for communication module status EU RoHS Indicator Y Gross Volume Per Pack 9424.00 Gross Volume per Pack Metric 154431.09 Gross Weight Per Pack 0.3150 lb Gross Weight per Pack Metric 30.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 49.0000 in Height [Metric] 48.2600 cm Item Group 22276 Length 80.0000 in Length [Metric] 39.3700 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=461078214&lang=en-us Mounting Wall Mount Returnable N Standard 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6;15 gn 11 ms IEC 60068-2-27 Type variable speed drive UNSPSC 39122001 Width [Metric] 81.2800 cm Brand Square D™ Manufacturer Schneider Electric Width 40.0000 in Material Handling an Hoisting Applications adjustable PID regulator;break on the control circuit drive;control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGmotor screw terminal 4...10 mm² 12 AWG...8 AWG;external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;forced convection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection;line side screw terminal 4...10 mm² 12 AWG...8 AWG;line supply overvoltage drive;line supply phase loss drive;line supply undervoltage drive;motor phase break motor;overcurrent between output phases and earth drive;overheating drive;overload of output voltage drive;overspeed drive;overvoltages on the DC bus drive;safe torque off drivemotor phase break drive;safe torque off motor;short-circuit protection drive;STO (safe torque off) SIL 3;thermal protection drive;thermal protection motor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV630U30Y6 |
| Application | Material Handling an Hoisting Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATV630U30Y6 |
| Communication | 2-wire RS 485;Ethernet |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 3.1 A 4 kHz heavy duty;4.2 A 4 kHz normal duty |
| Display | 1 LED (red) for presence of voltage;3 LEDs (dual colour) for embedded communication status;3 LEDs for local diagnostic;4 LEDs (dual colour) for communication module status |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 9424.00 |
| Gross Volume per Pack Metric | 154431.09 |
| Gross Weight Per Pack | 0.3150 lb |
| Gross Weight per Pack Metric | 30.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 49.0000 in |
| Height [Metric] | 48.2600 cm |
| Item Group | 22276 |
| Length | 80.0000 in |
| Length [Metric] | 39.3700 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=461078214&lang=en-us |
| Mounting | Wall Mount |
| Returnable | N |
| Standard | 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-61 gn (f= 13-200 Hz) conforming to IEC 60068-2-6;15 gn 11 ms IEC 60068-2-27 |
| Type | variable speed drive |
| UNSPSC | 39122001 |
| Width [Metric] | 81.2800 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Width | 40.0000 in |
| Material Handling an Hoisting Applications |
| adjustable PID regulator;break on the control circuit drive;control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWGmotor screw terminal 4...10 mm² 12 AWG...8 AWG;external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protectioninternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;forced convection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection;line side screw terminal 4...10 mm² 12 AWG...8 AWG;line supply overvoltage drive;line supply phase loss drive;line supply undervoltage drive;motor phase break motor;overcurrent between output phases and earth drive;overheating drive;overload of output voltage drive;overspeed drive;overvoltages on the DC bus drive;safe torque off drivemotor phase break drive;safe torque off motor;short-circuit protection drive;STO (safe torque off) SIL 3;thermal protection drive;thermal protection motor |
