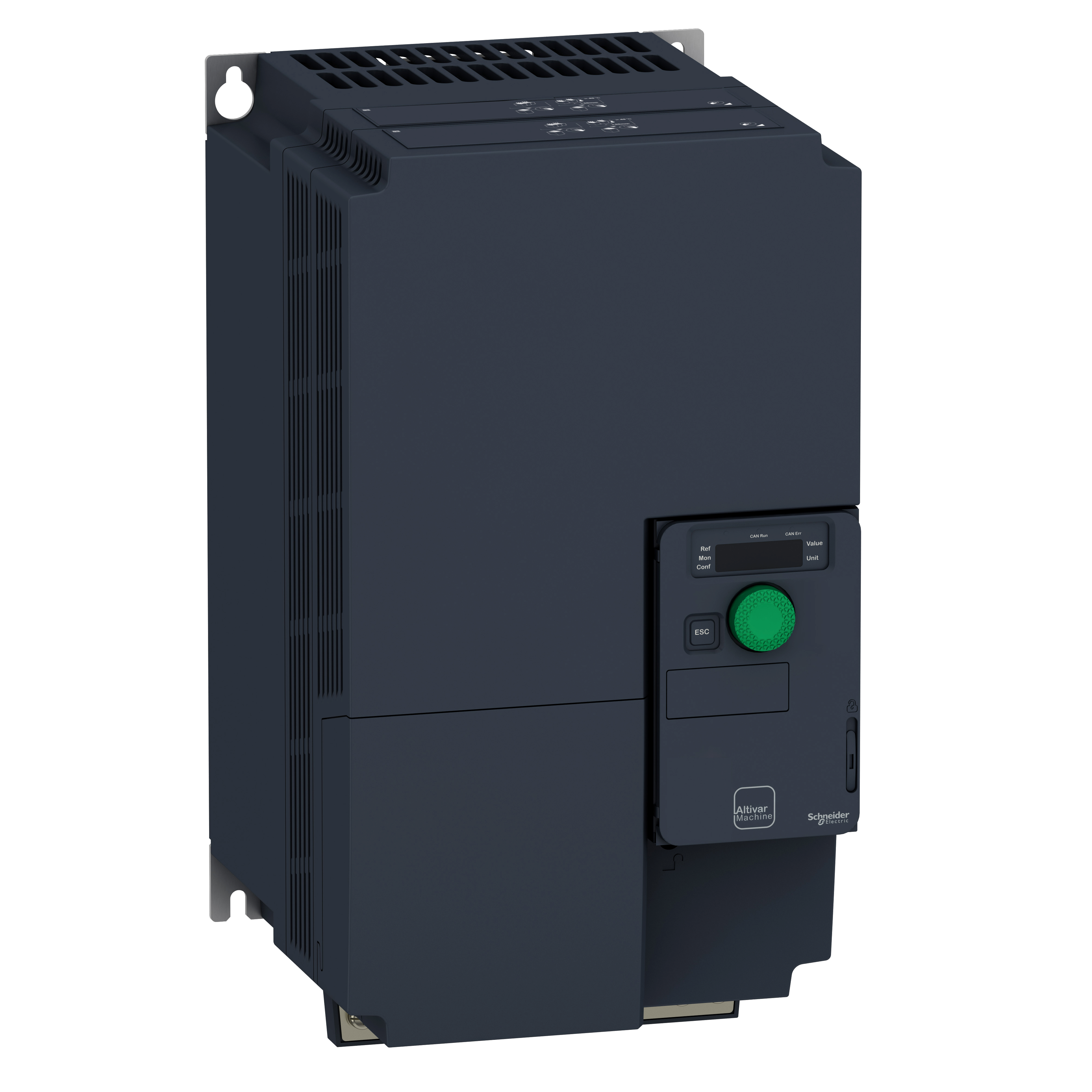

Schneider Electric ATV320D15N4C Altivar™ 3-Phase Variable Speed Drive, 380 to 500 V, 47.3 A at 380 V/33.3 A at 500 V Heavy Duty, 7.09 in W x 7.8 in D
AC Variable Frequency Drives
1168870
MFG #: ATV320D15N4C
Square D™
2691.21000
/ ea
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar™ ATV320, 380 to 500 V, 47.3 A at 380 V/33.3 A at 500 V Heavy Duty, 7.09 in Width, 7.8 in Depth, 12.99 in Height, IP20 Enclosure, Wall Mounting
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_ABY71PWCO9X2L5VT.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2311022_V1.pdf(Service Manual URL)
- Spec Sheet URL - 11003_EOT3S6MNRW52PG4Z.pdf(Spec Sheet URL)
- User Manual URL(User Manual URL)
- Applications
- Features
| For complex machines |
| Voltage/frequency ratio, 5 points;flux vector control without sensor, standard;voltage/frequency ratio - Energy Saving, quadratic U/f;flux vector control without sensor - Energy Saving;voltage/frequency ratio, 2 points;Positive logic (source);negative logic (sink);Input phase breaks drive;overcurrent between output phases and earth drive;overheating protection drive;short-circuit between motor phases drive;thermal protection drive |
