Square D™

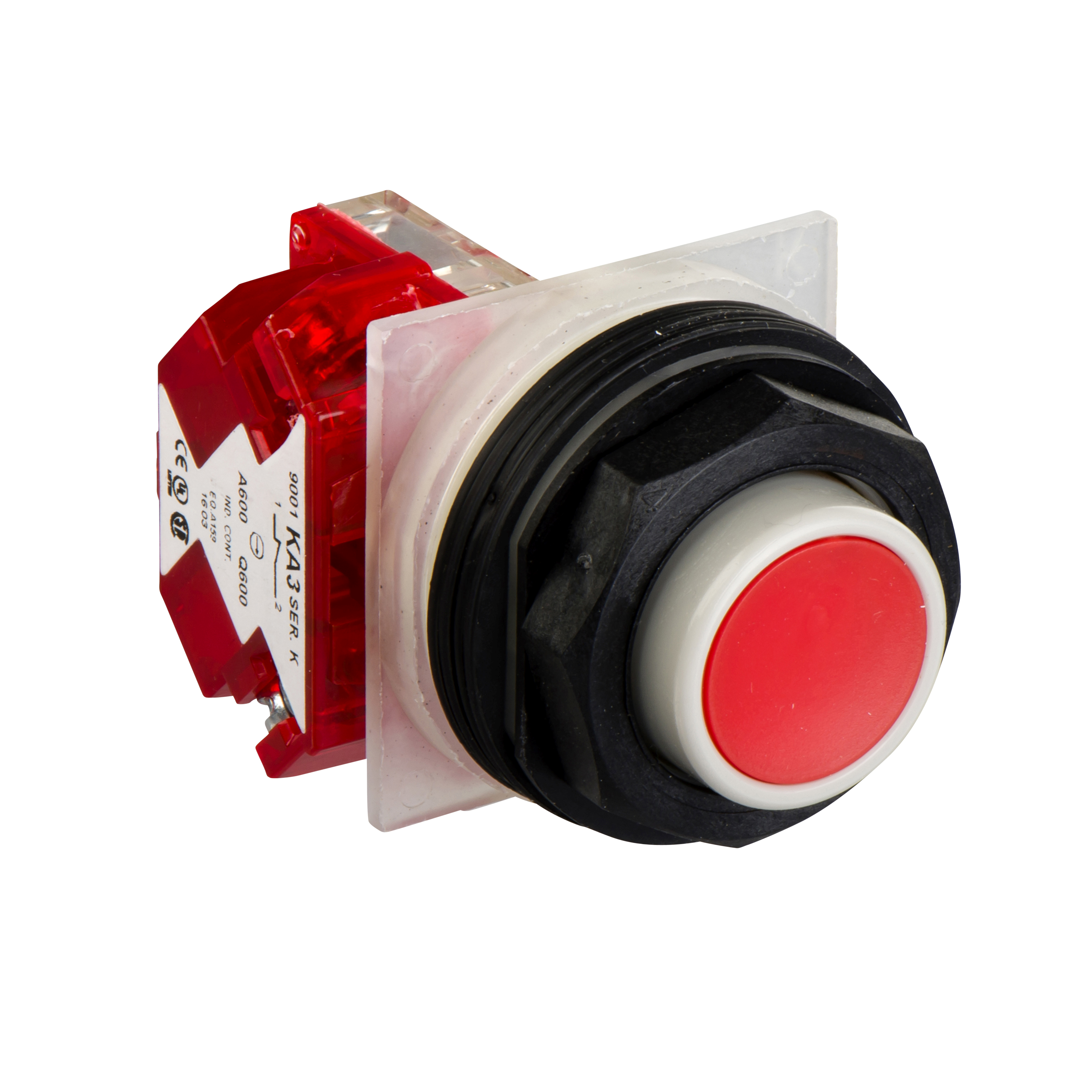

Schneider Electric 9001SKR3RH6 PUSHBUTTON 600VAC 1
Custom_Product_Images_Illustration
Square D™
Schneider Electric 9001SKR3RH6 PUSHBUTTON 600VAC 1
SKU132554
MFGR #9001SKR3RH6
Your Cost: $66.33/ea
List: Schneider Electric 9001SKR3RH6 PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC,10A,30mm Round,600V,AC15 - DC13,Harmony,Momentary,NEMA 1/2/3/3R/4/4X/6/12/13,Non-Illuminated,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor)
Schneider Electric 9001SKR3RH6 PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC,10A,30mm Round,600V,AC15 - DC13,Harmony,Momentary,NEMA 1/2/3/3R/4/4X/6/12/13,Non-Illuminated,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor)
Action SLOW-BREAK Actuator Red projecting, unmarked; spring return Alternate Catalog Number 9001SKR3RH6 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Plastic Brand Square D™ Buy American Compliant N Catalog Number 9001SKR3RH6 Color Red Connection Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 Contact Configuration 1NC Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact Type Slow Break Country of Origin US Currency USD Enclosure NEMA 1/2/3/3R/4/4X/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 14.65 Gross Volume per Pack Metric 240.10 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 63.50 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 4.5720 in Height [Metric] 4.5720 cm Insulation 250 V 3)EN/IEC 60947-1 Item Group 21429 Length 9.3980 in Length [Metric] 9.3980 cm Manufacturer Schneider Electric Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=679976&lang=en-us Mounting Panel Mounting Type Panel Number of Positions 2 Operating Temperature -25-70 A°C Operator Type Spring Return Returnable Y Series 9001SK Size 30 mm Standard UL FILE NUMBER E42259 CCN NKCR - CSA FILE NUMBER LR24590 CLASS 3211-03 - CE MARKED Stock Status NONSTOCK Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590104274 UPC 12 785901042747 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 5.5880 in Width [Metric] 5.5880 cm NON-ILLUMINATED Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations Without guard
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | Red projecting, unmarked; spring return |
| Alternate Catalog Number | 9001SKR3RH6 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001SKR3RH6 |
| Color | Red |
| Connection | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Contact Configuration | 1NC |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Contact Type | Slow Break |
| Country of Origin | US |
| Currency | USD |
| Enclosure | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 14.65 |
| Gross Volume per Pack Metric | 240.10 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 63.50 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 4.5720 in |
| Height [Metric] | 4.5720 cm |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21429 |
| Length | 9.3980 in |
| Length [Metric] | 9.3980 cm |
| Manufacturer | Schneider Electric |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=679976&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25-70 A°C |
| Operator Type | Spring Return |
| Returnable | Y |
| Series | 9001SK |
| Size | 30 mm |
| Standard | UL FILE NUMBER E42259 CCN NKCR - CSA FILE NUMBER LR24590 CLASS 3211-03 - CE MARKED |
| Stock Status | NONSTOCK |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590104274 |
| UPC 12 | 785901042747 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.5880 in |
| Width [Metric] | 5.5880 cm |
| NON-ILLUMINATED |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
| Without guard |
