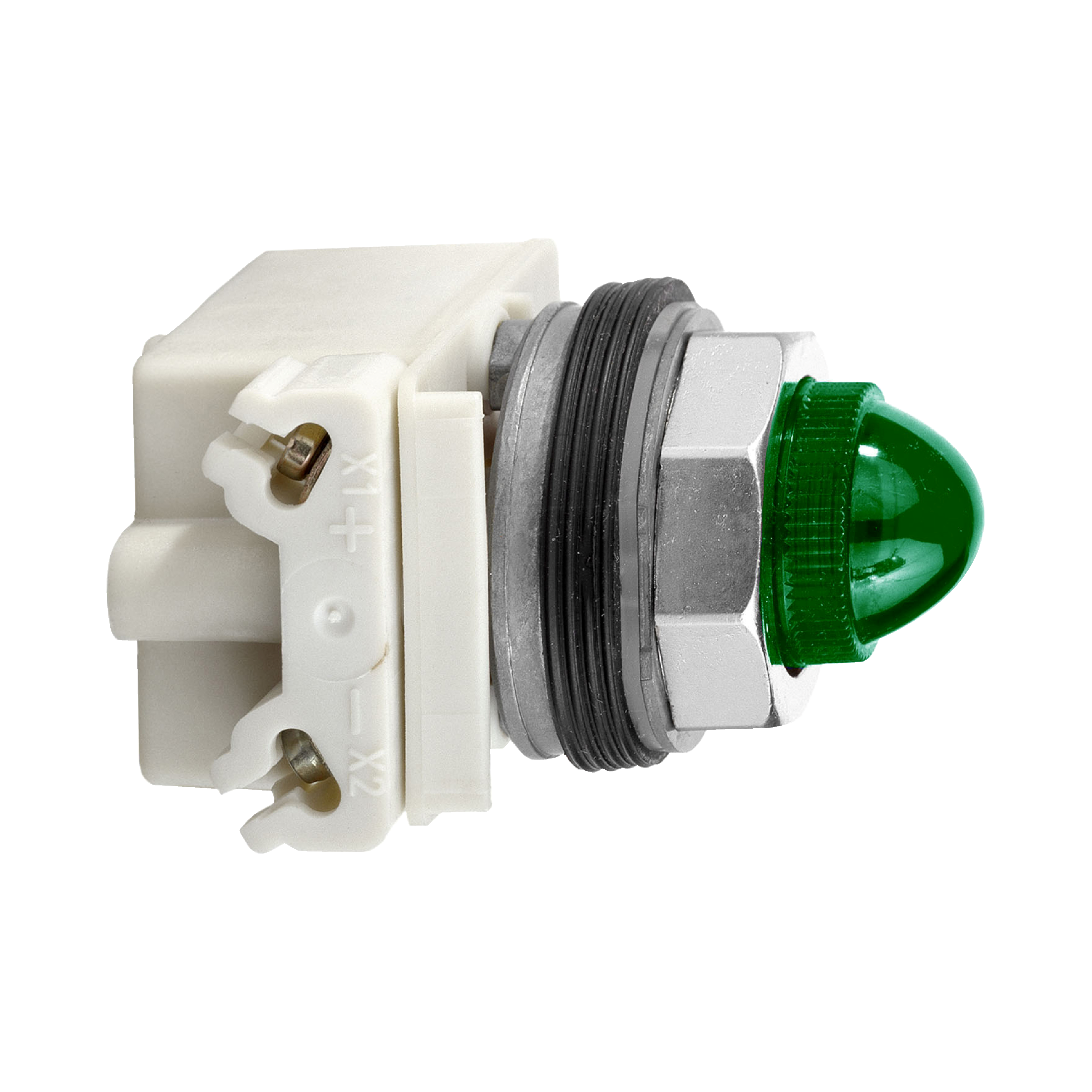

Schneider Electric 9001KP38G9 PILOT LIGHT 120V 30M
SKU268924
MFGR #9001KP38G9
$/ea
Schneider Electric 9001KP38G9 PILOT LIGHT 120V 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 1-NEMA 12-NEMA 3R-NEMA 3-NEMA 2-NEMA 13-NEMA 4-NEMA 6,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
Schneider Electric 9001KP38G9 PILOT LIGHT 120V 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 1-NEMA 12-NEMA 3R-NEMA 3-NEMA 2-NEMA 13-NEMA 4-NEMA 6,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
Alternate Catalog Number 9001KP38G9 Application 9001K ARRA Compliant N Base BA 9s Brand Square D™ Buy American Compliant N Catalog Number 9001KP38G9 Color Green Connection Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 Country of Origin US Currency USD Environmental Conditions NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6 EU RoHS Indicator Y Finish Chromium Plated Metal Fixture Type Incandescent Gross Volume Per Pack 16.17 Gross Volume per Pack Metric 264.96 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.4515 lb Gross Weight per Pack Metric 145.15 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8531809051 Height 4.8260 in Height [Metric] 4.8260 cm Illumination Type incandescent Item Group 21426 Length 9.3980 in Length [Metric] 9.3980 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680508&lang=en-us Mounting Panel Operating Temperature -25-70 A°C Returnable Y Shape DOMED PLASTIC,ROUND Size 30 MM,42 MM,54 MM,70 MM in Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-JIS C 852-EN/IEC 60947-5-1-UL 508-JIS C8201-5-1-CSA C22.2 NO 14-EN/IEC 60947-1-JIS C8201-1,IP66 IEC 60529,UL 508-NEMA Stock Status NONSTOCK Style BA 9S Sub Brand 9001K Substitute Product Catalog Number 9001KA2 Type Pilot Light UNSPSC 39121534 UPC 11 78590179439 UPC 12 785901794394 Voltage Rating 120 VAC//VDC Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 5.8420 cm 9001K IP66 CONFORMING TO IEC 60529
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9001KP38G9 |
| Application | 9001K |
| ARRA Compliant | N |
| Base | BA 9s |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001KP38G9 |
| Color | Green |
| Connection | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Country of Origin | US |
| Currency | USD |
| Environmental Conditions | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6 |
| EU RoHS Indicator | Y |
| Finish | Chromium Plated Metal |
| Fixture Type | Incandescent |
| Gross Volume Per Pack | 16.17 |
| Gross Volume per Pack Metric | 264.96 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.4515 lb |
| Gross Weight per Pack Metric | 145.15 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8531809051 |
| Height | 4.8260 in |
| Height [Metric] | 4.8260 cm |
| Illumination Type | incandescent |
| Item Group | 21426 |
| Length | 9.3980 in |
| Length [Metric] | 9.3980 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680508&lang=en-us |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Shape | DOMED PLASTIC,ROUND |
| Size | 30 MM,42 MM,54 MM,70 MM in |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-JIS C 852-EN/IEC 60947-5-1-UL 508-JIS C8201-5-1-CSA C22.2 NO 14-EN/IEC 60947-1-JIS C8201-1,IP66 IEC 60529,UL 508-NEMA |
| Stock Status | NONSTOCK |
| Style | BA 9S |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA2 |
| Type | Pilot Light |
| UNSPSC | 39121534 |
| UPC 11 | 78590179439 |
| UPC 12 | 785901794394 |
| Voltage Rating | 120 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| 9001K |
| IP66 CONFORMING TO IEC 60529 |
