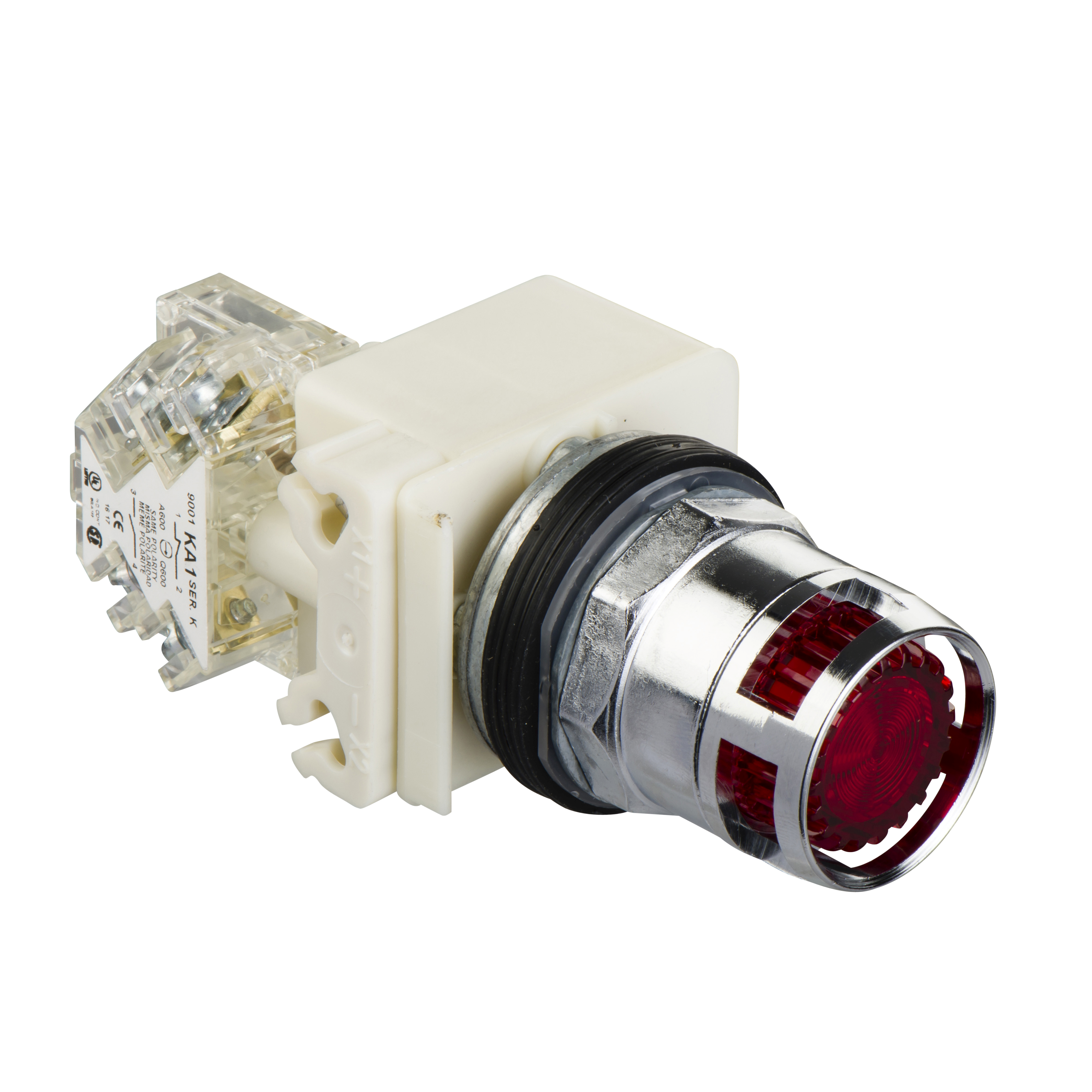

Schneider Electric 9001K3L38RH13 PUSH BUTTON 600VA
SKU143859
MFGR #9001K3L38RH13
Your Cost: $229.42/ea
Schneider Electric 9001K3L38RH13 PUSH BUTTON 600VAC 10A 30MM T-K,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,BA 9s,incandescent,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric 9001K3L38RH13 PUSH BUTTON 600VAC 10A 30MM T-K,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,BA 9s,incandescent,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Action Standard Actuator Flush Alternate Catalog Number 9001K3L38RH13 Amperage Rating 0.55 A 125 V, DC-13, A600-Q600 NEMA ARRA Compliant N Bezel|Housing Polished Chrome Metal Brand Square D™ Buy American Compliant N Catalog Number 9001K3L38RH13 Color Red Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Contact Configuration 1CO Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact Type Slow Break Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 4.5720 in Height [Metric] 4.5720 cm Illumination Type incandescent;Incandescent Indicator BA 9S,INCANDESCENT Insulation 250 V 3)IEC 60947-1 Item Group 21426 Lamp Type BA9S Incandescent Length 9.1440 in Length [Metric] 9.1440 cm Manufacturer Schneider Electric Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680800&lang=en-us Mounting Panel Mounting Type Panel Operating Temperature -25-70 A°C Operator Type Extended Guard Button/Spring Return Returnable N Series 9001K Size 30 mm Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-JIS C 852-EN/IEC 60947-5-4-JIS C 4520-EN/IEC 60947-5-1-EN/IEC 60947-1-UL 508,IP66 IEC 60529,NEMA-UL 508 Stock Status NONSTOCK Substitute Product Catalog Number 9001KA1 Terminal Type Screw/Clamp Type Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked UNSPSC 39122216 UPC 11 78590117950 UPC 12 785901179504 Voltage Rating 120 VAC//VDC Warranty Description Contractual Warranty:18 months Width 5.3340 in Width [Metric] 5.3340 cm EXTENDED METALLIC GUARD This Schneider electric Harmony™ 9001K modular illuminated flush red pushbutton is supplied with a full guard It has a chromium plated metal bezel, is supplied with a 110 VAC/VDC integral LED and has 1NO-1NC contacts It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | Flush |
| Alternate Catalog Number | 9001K3L38RH13 |
| Amperage Rating | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001K3L38RH13 |
| Color | Red |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Contact Configuration | 1CO |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Contact Type | Slow Break |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 4.5720 in |
| Height [Metric] | 4.5720 cm |
| Illumination Type | incandescent;Incandescent |
| Indicator | BA 9S,INCANDESCENT |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Lamp Type | BA9S Incandescent |
| Length | 9.1440 in |
| Length [Metric] | 9.1440 cm |
| Manufacturer | Schneider Electric |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680800&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Operator Type | Extended Guard Button/Spring Return |
| Returnable | N |
| Series | 9001K |
| Size | 30 mm |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-JIS C 852-EN/IEC 60947-5-4-JIS C 4520-EN/IEC 60947-5-1-EN/IEC 60947-1-UL 508,IP66 IEC 60529,NEMA-UL 508 |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9001KA1 |
| Terminal Type | Screw/Clamp |
| Type | Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590117950 |
| UPC 12 | 785901179504 |
| Voltage Rating | 120 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.3340 in |
| Width [Metric] | 5.3340 cm |
| EXTENDED METALLIC GUARD |
| This Schneider electric Harmony™ 9001K modular illuminated flush red pushbutton is supplied with a full guard |
| It has a chromium plated metal bezel, is supplied with a 110 VAC/VDC integral LED and has 1NO-1NC contacts |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
