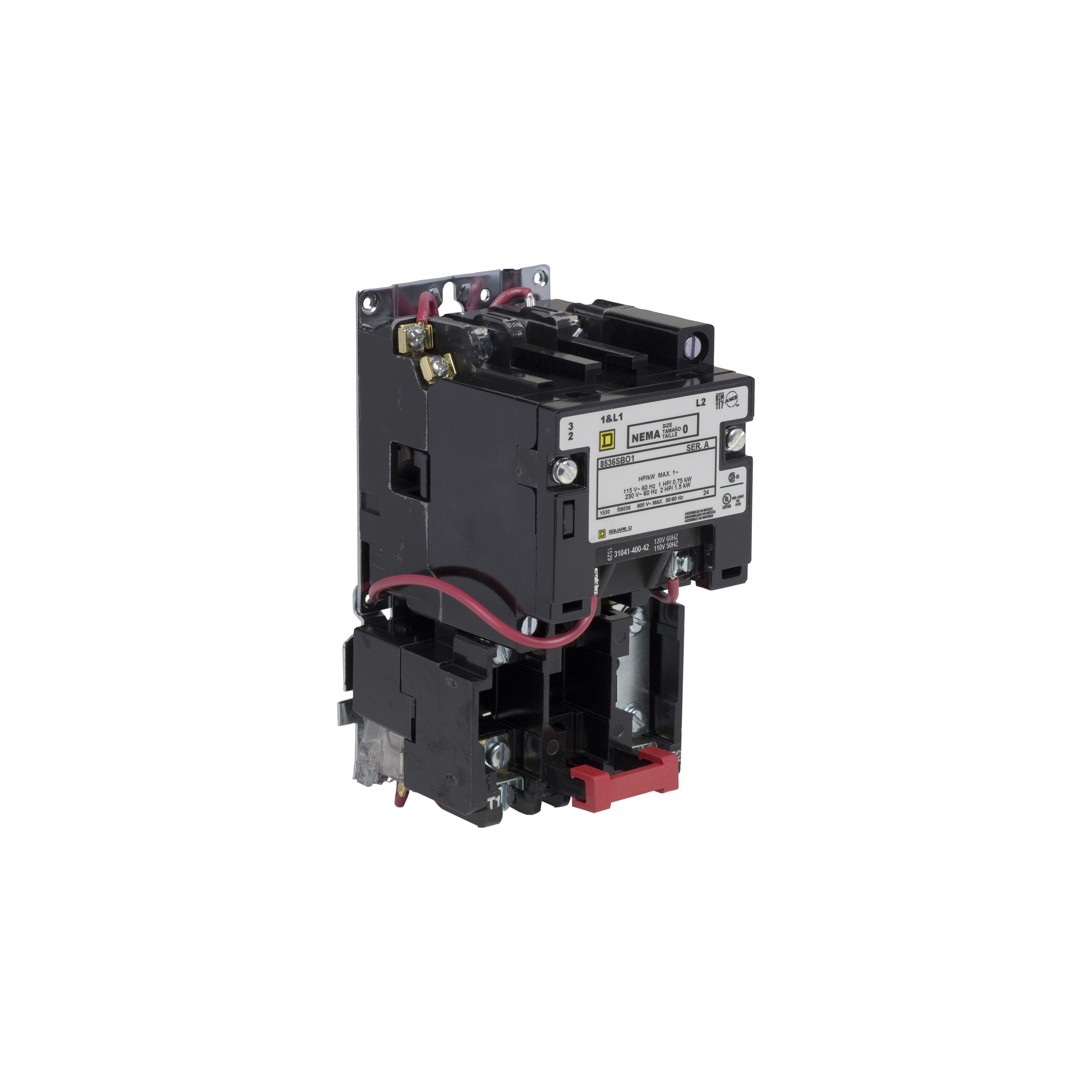

Schneider Electric 8536SBO1V02 NEMA Starters
SKU32004
MFGR #8536SBO1V02
$/ea
Square D 8536SBO1V02 STARTER 600VAC 18AMP NEMA +OPTIONS,0,1 phase,120VAC60Hz - 110VAC50Hz,18 A,1HP115VAC - 2HP230VAC,600 V AC,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 1,not rated (open device),starter
Square D 8536SBO1V02 STARTER 600VAC 18AMP NEMA +OPTIONS,0,1 phase,120VAC60Hz - 110VAC50Hz,18 A,1HP115VAC - 2HP230VAC,600 V AC,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,melting alloy 1,not rated (open device),starter
Alternate Catalog Number 8536SBO1V02 Amperage Rating 18 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SBO1V02 Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 3.5 in W x 4.21 in D x 6.77 in H Disconnect Type no control units Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 217.12 Gross Volume per Pack Metric 3557.94 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0178 lb Gross Weight per Pack Metric 1.78 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 11.6840 in Height [Metric] 11.6840 cm Item Group 21191 Length 20.3200 in Length [Metric] 20.3200 cm Manufacturer Schneider Electric Motor Power 1 hp at 115 VAC/2 hp at 230 VAC NEMA Frame Size 0 Number Of Phases 1 Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Phase 1 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type Thermal Melting Alloy Returnable Y Series 8536 Size 107 MM,172 MM,89 MM in Standard NEMA-UL LISTED-CSA Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590108036 UPC 12 785901080367 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 14.9860 in Width [Metric] 14.9860 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA 0
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SBO1V02 |
| Amperage Rating | 18 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SBO1V02 |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.5 in W x 4.21 in D x 6.77 in H |
| Disconnect Type | no control units |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 217.12 |
| Gross Volume per Pack Metric | 3557.94 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0178 lb |
| Gross Weight per Pack Metric | 1.78 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 11.6840 in |
| Height [Metric] | 11.6840 cm |
| Item Group | 21191 |
| Length | 20.3200 in |
| Length [Metric] | 20.3200 cm |
| Manufacturer | Schneider Electric |
| Motor Power | 1 hp at 115 VAC/2 hp at 230 VAC |
| NEMA Frame Size | 0 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 1 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | Thermal Melting Alloy |
| Returnable | Y |
| Series | 8536 |
| Size | 107 MM,172 MM,89 MM in |
| Standard | NEMA-UL LISTED-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590108036 |
| UPC 12 | 785901080367 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.9860 in |
| Width [Metric] | 14.9860 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA 0 |
