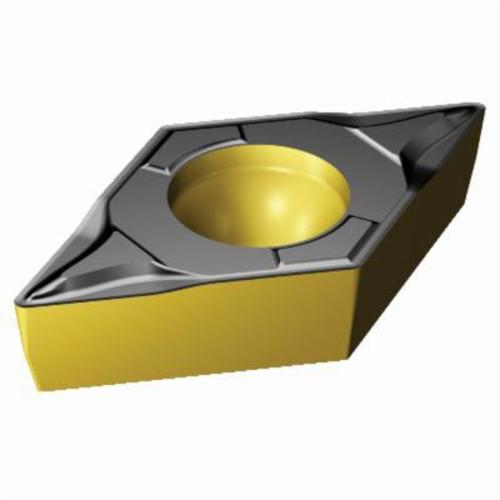

Sandvik Coromant 6868338 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)1-KF 3210, D-55 deg Diamond
Custom_Product_Images_Illustration
Sandvik Coromant 6868338 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)1-KF 3210, D-55 deg Diamond
SKU1253302
MFGR #6868338
$/ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, KF Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: DCMT 3(2.5)1-KF 3210, ISO Code: DCMT 11 T3 04-KF 3210, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, KF Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: DCMT 3(2.5)1-KF 3210, ISO Code: DCMT 11 T3 04-KF 3210, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number DCMT 3(2.5)1-KF 3210 ANSI Code DCMT 3(2.5)1-KF 3210 Catalog Number 6868338 Corner Radius 0.0156 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1732 in Included Angle 55 deg ISO Code DCMT 11 T3 04-KF 3210 Item Group 120 Length 0.4577 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 0.1562 in Type Basic Shape Positive Width 3210 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KF Inscribed Circle 3/8 in Insert Size 11.62 mm Insert Style DCMT Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 2 mm Shape D-55 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.06 - 0.23 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DCMT 3(2.5)1-KF 3210 |
| ANSI Code | DCMT 3(2.5)1-KF 3210 |
| Catalog Number | 6868338 |
| Corner Radius | 0.0156 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1732 in |
| Included Angle | 55 deg |
| ISO Code | DCMT 11 T3 04-KF 3210 |
| Item Group | 120 |
| Length | 0.4577 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| Type | Basic Shape Positive |
| Width | 3210 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KF |
| Inscribed Circle | 3/8 in |
| Insert Size | 11.62 mm |
| Insert Style | DCMT |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 2 mm |
| Shape | D-55 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.06 - 0.23 mm/r cutting feed |
| 20 life cycle state |
