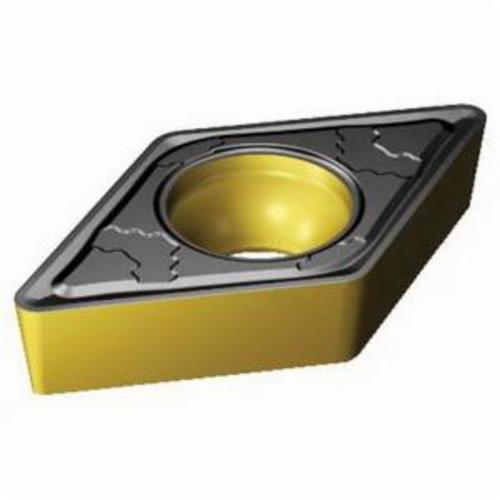

Sandvik Coromant 6328270 CoroTurn® 107 1-Sided Turning Insert, DCMT 3(2.5)1-PMC 4225, D-55 deg Diamond, DCMT-PMC Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6328270 CoroTurn® 107 1-Sided Turning Insert, DCMT 3(2.5)1-PMC 4225, D-55 deg Diamond, DCMT-PMC Insert
SKU1239275
MFGR #6328270
Your Cost: $16.60/ea
List: Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, DCMT-PMC Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, PMC Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4225, ANSI Code: DCMT 3(2.5)1-PMC 4225, ISO Code: DCMT 11 T3 04-PMC 4225, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, DCMT-PMC Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, PMC Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4225, ANSI Code: DCMT 3(2.5)1-PMC 4225, ISO Code: DCMT 11 T3 04-PMC 4225, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code DCMT 3(2.5)1-PMC 4225 Catalog Number 6328270 Corner Radius 0.016 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1200 lb Hole Diameter 0.1732 in Included Angle 55 ° ISO Code DCMT 11 T3 04-PMC 4225 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.1562 in UPC 11 69826273628 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PMC Cutting Direction Neutral For Use On Steel Inscribed Circle 3/8 in Insert Size 3(2.5)1 Insert Style DCMT Manufacturer's Grade 4225 Material Carbide Material Grade P Maximum Depth of Cut 3 mm Rake Positive Seat Size 11 Shape Diamond 7 deg major clearance E cutting edge condition 2 cutting edges 40 - 60 deg countersunk hole and non-flat surface clamping interface 11.22 mm L effective cutting edge M tolerance class 0.12 - 0.3 mm/r cutting feed 40 life cycle state Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component 7 deg clearance angle Screw clamping ensures stability and unobstructed chip flow Holders and insert geometries with conventional and CoroTurn HP design For longitudinal turning and profiling Screw clamp mount
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | DCMT 3(2.5)1-PMC 4225 |
| Catalog Number | 6328270 |
| Corner Radius | 0.016 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1200 lb |
| Hole Diameter | 0.1732 in |
| Included Angle | 55 ° |
| ISO Code | DCMT 11 T3 04-PMC 4225 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| UPC 11 | 69826273628 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PMC |
| Cutting Direction | Neutral |
| For Use On | Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 3(2.5)1 |
| Insert Style | DCMT |
| Manufacturer's Grade | 4225 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 3 mm |
| Rake | Positive |
| Seat Size | 11 |
| Shape | Diamond |
| 7 deg major clearance |
| E cutting edge condition |
| 2 cutting edges |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 11.22 mm L effective cutting edge |
| M tolerance class |
| 0.12 - 0.3 mm/r cutting feed |
| 40 life cycle state |
| Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component |
| 7 deg clearance angle |
| Screw clamping ensures stability and unobstructed chip flow |
| Holders and insert geometries with conventional and CoroTurn HP design |
| For longitudinal turning and profiling |
| Screw clamp mount |
