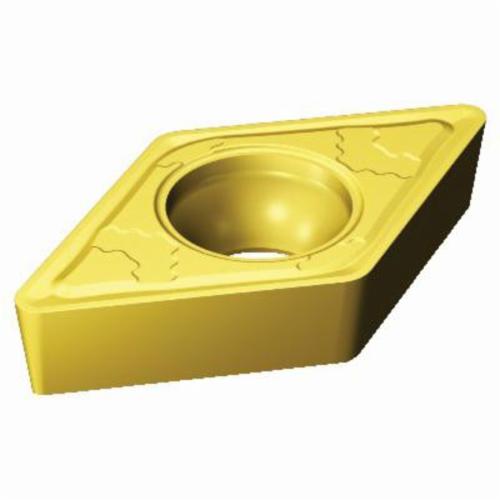

Sandvik Coromant 6198156 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)3-MMC 2025, D-55 deg Diamond, DCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6198156 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)3-MMC 2025, D-55 deg Diamond, DCMT Insert
SKU1229563
MFGR #6198156
Your Cost: $17.58/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, MMC Chipbreaker, 0.0468 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: DCMT 3(2.5)3-MMC 2025, ISO Code: DCMT 11 T3 12-MMC 2025, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, MMC Chipbreaker, 0.0468 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: DCMT 3(2.5)3-MMC 2025, ISO Code: DCMT 11 T3 12-MMC 2025, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number DCMT 3(2.5)3-MMC 2025 ANSI Code DCMT 3(2.5)3-MMC 2025 Catalog Number 6198156 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1732 in Included Angle 55 deg ISO Code DCMT 11 T3 12-MMC 2025 Item Group 120 Length 0.4577 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 0.1562 in Type Basic Shape Positive UPC 11 69826268006 Width MMC Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MMC Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 3/8 in Insert Size D - 55 deg Diamond Insert Style DCMT Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 3 mm Rake Positive Seat Size 11 Shape D-55 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.12 - 0.35 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DCMT 3(2.5)3-MMC 2025 |
| ANSI Code | DCMT 3(2.5)3-MMC 2025 |
| Catalog Number | 6198156 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1732 in |
| Included Angle | 55 deg |
| ISO Code | DCMT 11 T3 12-MMC 2025 |
| Item Group | 120 |
| Length | 0.4577 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826268006 |
| Width | MMC |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MMC |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DCMT |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 3 mm |
| Rake | Positive |
| Seat Size | 11 |
| Shape | D-55 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.12 - 0.35 mm/r cutting feed |
| 20 life cycle state |
