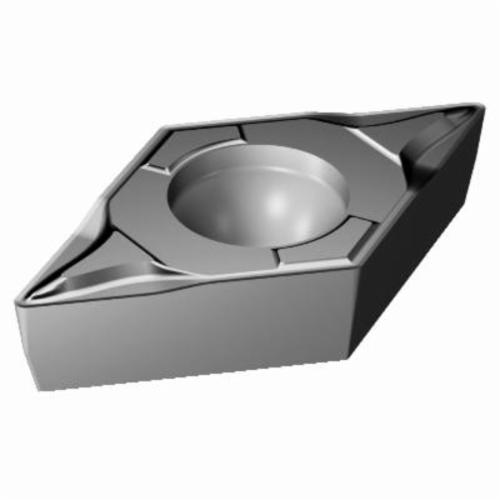

Sandvik Coromant 5730938 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)1-MF 1105, D-55 deg Diamond
DCMT Turning Inserts
1147277
MFG #: 5730938
Sandvik Coromant
15.49000
/ ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 1.4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, MF Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: DCMT 3(2.5)1-MF 1105, ISO Code: DCMT 11 T3 04-MF 1105, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.06 - 0.16 mm/r cutting feed |
| 20 life cycle state |
