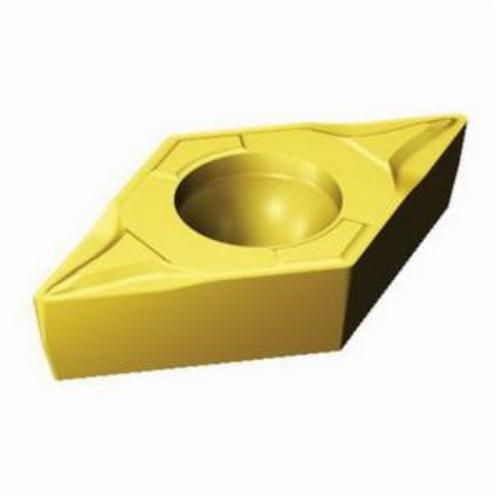

Sandvik Coromant 5730730 CoroTurn® 107 1-Sided Turning Insert, DCMT 2(1.5)0-MF 1025, D-55 deg Diamond, DCMT-MF Insert
DCMT Turning Inserts
343011
MFG #: 5730730
Sandvik Coromant
11.51000
/ ea
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, DCMT-MF Insert, D-55 deg Diamond, 0.26 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.3051 in Length, MF Chipbreaker, 0.0078 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: DCMT 2(1.5)0-MF 1025, ISO Code: DCMT 07 02 02-MF 1025, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
- Features
| 7 deg major clearance |
| E cutting edge condition |
| 2 cutting edges |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 7.551 mm L effective cutting edge |
| M tolerance class |
| 0.03 - 0.11 mm/r cutting feed |
| 30 life cycle state |
| Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component |
| 7 deg clearance angle |
| Screw clamping ensures stability and unobstructed chip flow |
| Holders and insert geometries with conventional and CoroTurn HP design |
| For longitudinal turning and profiling |
| Positive rake |
| Screw clamp mount |
