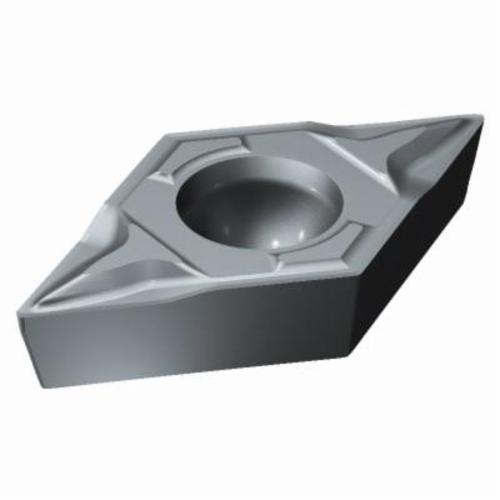

Sandvik Coromant 5730697 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)0-PF 5015, D-55 deg Diamond
Custom_Product_Images_Illustration
Sandvik Coromant 5730697 CoroTurn® 107 Basic Shape Positive Turning Insert, DCMT 3(2.5)0-PF 5015, D-55 deg Diamond
SKU124901
MFGR #5730697
Your Cost: $19.47/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, PF Chipbreaker, 0.0078 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: DCMT 3(2.5)0-PF 5015, ISO Code: DCMT 11 T3 02-PF 5015, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: P
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, DCMT Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.4577 in Length, PF Chipbreaker, 0.0078 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 5015, ANSI Code: DCMT 3(2.5)0-PF 5015, ISO Code: DCMT 11 T3 02-PF 5015, 55 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: P
Alternate Catalog Number DCMT 3(2.5)0-PF 5015 ANSI Code DCMT 3(2.5)0-PF 5015 Catalog Number 5730697 Corner Radius 0.0078 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1732 in Included Angle 55 deg ISO Code DCMT 11 T3 02-PF 5015 Item Group 120 Length 0.4577 in Relief Angle 7 deg LB Series CoroTurn® 107 Thickness 0.1562 in Type Basic Shape Positive UPC 11 69826210664 UPC 12 69826210664 Width PF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PF Cutting Direction Neutral For Use On Steel Inscribed Circle 3/8 in Insert Size DCMT Insert Style DCMT Manufacturer's Grade 5015 Material Carbide Material Grade P Maximum Depth of Cut 2 mm Rake Positive Seat Size 11 Shape D-55 deg Diamond 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.04 - 0.15 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DCMT 3(2.5)0-PF 5015 |
| ANSI Code | DCMT 3(2.5)0-PF 5015 |
| Catalog Number | 5730697 |
| Corner Radius | 0.0078 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1732 in |
| Included Angle | 55 deg |
| ISO Code | DCMT 11 T3 02-PF 5015 |
| Item Group | 120 |
| Length | 0.4577 in |
| Relief Angle | 7 deg LB |
| Series | CoroTurn® 107 |
| Thickness | 0.1562 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826210664 |
| UPC 12 | 69826210664 |
| Width | PF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PF |
| Cutting Direction | Neutral |
| For Use On | Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | DCMT |
| Insert Style | DCMT |
| Manufacturer's Grade | 5015 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 2 mm |
| Rake | Positive |
| Seat Size | 11 |
| Shape | D-55 deg Diamond |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.04 - 0.15 mm/r cutting feed |
| 20 life cycle state |
