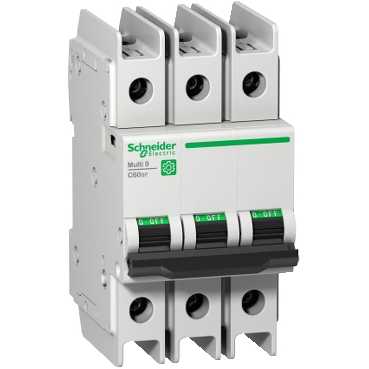

SQD M9F42330 Multi9 C60BP 3P C 30A MCB
SKU994827
MFGR #M9F42330
Your Cost: $237.09/ea
List: Multi9 C60BP 3P C 30A MCB
Multi9 C60BP 3P C 30A MCB
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F42330 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F42330 Color Gray Connection Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible Connection Type Tunnel Country of Origin US Currency USD Dimensions 4.06 in H x 2.13 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 25.83 Gross Volume per Pack Metric 423.28 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8800 lb Gross Weight per Pack Metric 399.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710403&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 3 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Standards ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 Sub Brand C60BP;Multi 9 C60 Substitute Product Catalog Number M9A26927 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC Type Multi-Standard UNSPSC 39121603 UPC 11 78590170822 UPC 12 785901708223 Width 5.4000 in Width [Metric] 5.4000 cm Wire Size 18 to 2 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 10 kA Trip Type C-Curve/Thermal Magnetic Voltage Rating 240/415/440 VAC Distribution ON/OFF indication Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F42330 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F42330 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible |
| Connection Type | Tunnel |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.06 in H x 2.13 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 25.83 |
| Gross Volume per Pack Metric | 423.28 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8800 lb |
| Gross Weight per Pack Metric | 399.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710403&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 |
| Sub Brand | C60BP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26927 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590170822 |
| UPC 12 | 785901708223 |
| Width | 5.4000 in |
| Width [Metric] | 5.4000 cm |
| Wire Size | 18 to 2 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA |
| Trip Type | C-Curve/Thermal Magnetic |
| Voltage Rating | 240/415/440 VAC |
| Distribution |
| ON/OFF indication |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
