Leviton®
SMBOX 2 PORT PLENUM GY
Custom_Product_Images_Illustration
Leviton®
SMBOX 2 PORT PLENUM GY
SKU8564
MFGR #41089-2GP
Your Cost: $3.93/ea

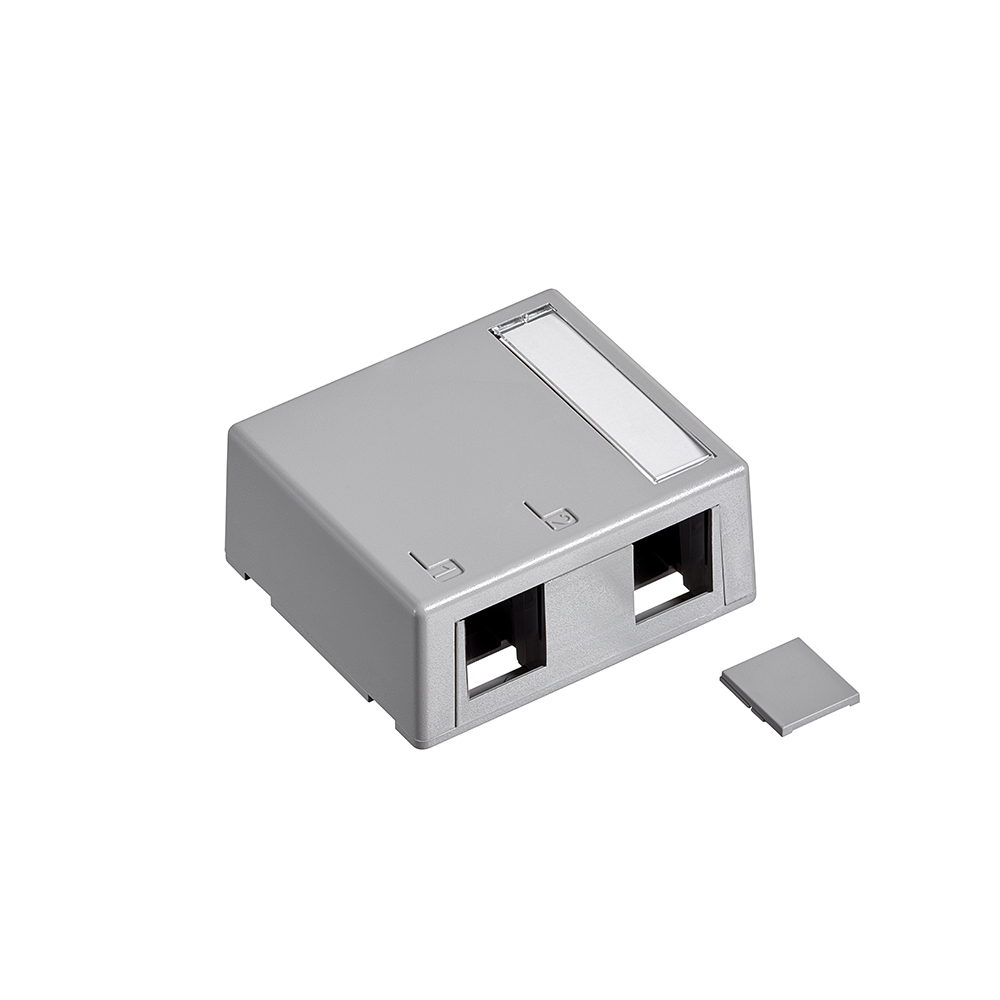

The compact surface mount box accepts two QuickPort snap-in connector modules. The box supports voice/data applications in office, retrofit, or other surface mount environments. It includes an ID window, mounting screws, and adhesive, and is available in four colors: white, ivory, grey, and black.
The compact surface mount box accepts two QuickPort snap-in connector modules. The box supports voice/data applications in office, retrofit, or other surface mount environments. It includes an ID window, mounting screws, and adhesive, and is available in four colors: white, ivory, grey, and black.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 41089-2GP Color Gray Country of Origin UKN Currency USD Environmental Conditions Flammability (Rated V-0 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.1000 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 9.0000 in Includes Screws, Pressure Sensitive Adhesive Length 12.7500 in Length [Metric] 10.1600 cm Mounting Surface Size 2.52 H x 2.22 W x 1.1 D in Standard ANSI\TIA-568-C;cULus Listed;NEC Article 800 Compliant Standards cULus Listed, ANSI\TIA-568-C, NEC Article 800, RoHS Compliant Sub Brand QuickPort Type Surface Mount Housing UNSPSC 39121444 UPC 11 07847783674 UPC 12 078477836743 Width 6.00 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Commercial Accept 2 Quick Port Snap-in Connector Module, Made in Mexico Flammability (Rated V-0 Per UL94) environmental conditions Accept 2 quick port snap-in connector module Designation label provided for identification purposes 1-port blank included to close off unused port for 2-port box Connector module can be pre-terminated prior to snapping into housing port Box base functions as a punchdown platform stabilizing connector modules during termination Compatible with all individual QuickPort modules User-provided cover screw can be installed for additional security
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 41089-2GP |
| Color | Gray |
| Country of Origin | UKN |
| Currency | USD |
| Environmental Conditions | Flammability (Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1000 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 9.0000 in |
| Includes | Screws, Pressure Sensitive Adhesive |
| Length | 12.7500 in |
| Length [Metric] | 10.1600 cm |
| Mounting | Surface |
| Size | 2.52 H x 2.22 W x 1.1 D in |
| Standard | ANSI\TIA-568-C;cULus Listed;NEC Article 800 Compliant |
| Standards | cULus Listed, ANSI\TIA-568-C, NEC Article 800, RoHS Compliant |
| Sub Brand | QuickPort |
| Type | Surface Mount Housing |
| UNSPSC | 39121444 |
| UPC 11 | 07847783674 |
| UPC 12 | 078477836743 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Commercial |
| Accept 2 Quick Port Snap-in Connector Module, Made in Mexico |
| Flammability (Rated V-0 Per UL94) environmental conditions |
| Accept 2 quick port snap-in connector module |
| Designation label provided for identification purposes |
| 1-port blank included to close off unused port for 2-port box |
| Connector module can be pre-terminated prior to snapping into housing port |
| Box base functions as a punchdown platform stabilizing connector modules during termination |
| Compatible with all individual QuickPort modules |
| User-provided cover screw can be installed for additional security |
