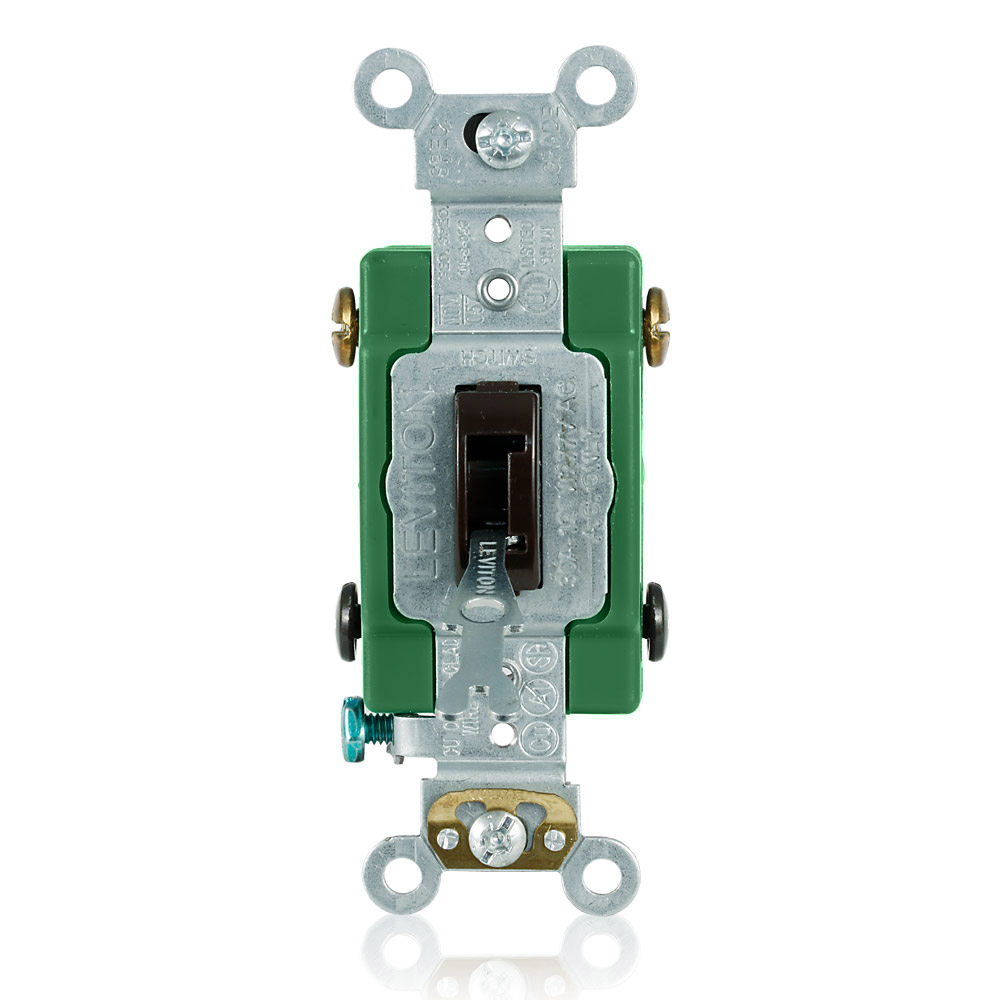

Levitons Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
- Catalog URL - Leviton_1257_R_Catalog.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - ID-INS-3032-2L.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=3032-2L§ion=41455&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_0AW6HBT1CFQMS4VK.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=34609&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Top of the line industrial quality |
| Heavy gauge copper alloy brush arm for superior performance |
| Large silver alloy contacts for long life prevent sticking, welding and excessive pitting |
| Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance |
| Self-grounding clip (self grounding when used with a grounded metal wallbox) |
| 2 hp at 120 to 277 VAC power rating |
| Brass 8-32 terminal screw |
| 0.048 in thick galvanized steel strap |
| Polycarbonate toggle, thermoplastic base and cover |
| Key-locking toggle |
| Box mounting |
| Back and side wire connection |
| UL 94-V2 Flammability |
