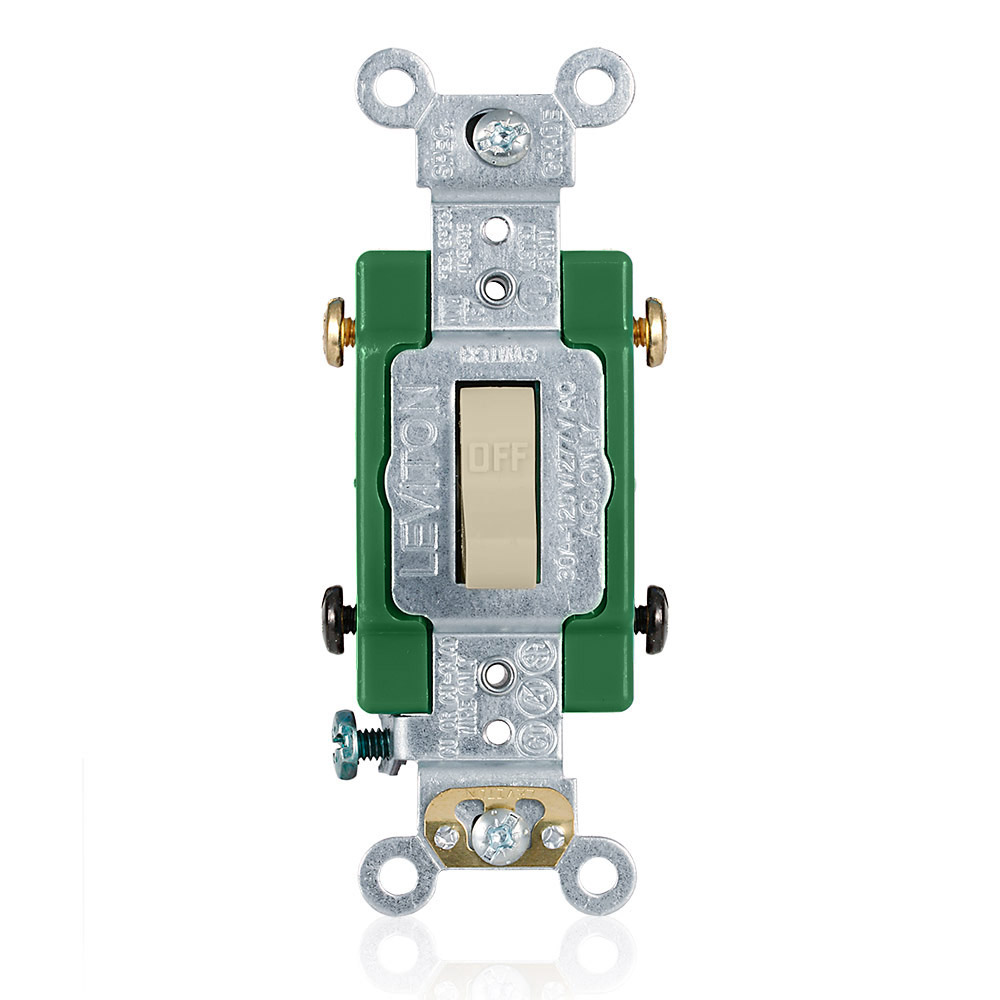

SM IV SW 30 AMPS
SKU8138
MFGR #3032-2I
Your Cost: $16.96/ea
List: Levitons Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Levitons Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Action DP Actuator Toggle Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 3032-2I Color Ivory Connection Back Wired;Side Wired Country of Origin MX Currency USD Depth 13 in Dimensions 46 in H x 1.31 in W x 13 in D Enclosure NEMA WD-1/WD-6 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 9.2500 in Height [Metric] 10.6375 cm Length 11.5000 in Length [Metric] 4.2875 cm Material Thermoplastic Mounting Box Number Of Poles 2 Operating Temperature -40 to +65 °C Size 46 H x 1.31 W x 13 D in Standard NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No. 111 File No. 152105NOM 057Federal Specification WS896E File No. E7458UL 20UL94 V-2 Flammability Rating Switch Type Toggle Terminal Type Back/Side Wired Type Toggle Switch UNSPSC 39122211 UPC 11 07847736192 UPC 12 078477361924 Width 1.62 in Width [Metric] 4.1275 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Contact Configuration DP Power Rating 2 hp Voltage Rating 120/277 VAC Commercial Top of the line industrial quality Heavy gauge copper alloy brush arm for superior performance Large silver alloy contacts for long life prevent sticking, welding and excessive pitting Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance Self-grounding clip (self grounding when used with a grounded metal wallbox) 2 hp at 120 to 277 VAC power rating Brass 8-32 terminal screw 0.048 in thick galvanized steel strap Polycarbonate toggle, thermoplastic base and cover Box mounting Back and side wire connection UL 94-V2 Flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | DP |
| Actuator | Toggle |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3032-2I |
| Color | Ivory |
| Connection | Back Wired;Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 13 in |
| Dimensions | 46 in H x 1.31 in W x 13 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 9.2500 in |
| Height [Metric] | 10.6375 cm |
| Length | 11.5000 in |
| Length [Metric] | 4.2875 cm |
| Material | Thermoplastic |
| Mounting | Box |
| Number Of Poles | 2 |
| Operating Temperature | -40 to +65 °C |
| Size | 46 H x 1.31 W x 13 D in |
| Standard | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No. 111 File No. 152105NOM 057Federal Specification WS896E File No. E7458UL 20UL94 V-2 Flammability Rating |
| Switch Type | Toggle |
| Terminal Type | Back/Side Wired |
| Type | Toggle Switch |
| UNSPSC | 39122211 |
| UPC 11 | 07847736192 |
| UPC 12 | 078477361924 |
| Width | 1.62 in |
| Width [Metric] | 4.1275 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Contact Configuration | DP |
| Power Rating | 2 hp |
| Voltage Rating | 120/277 VAC |
| Commercial |
| Top of the line industrial quality |
| Heavy gauge copper alloy brush arm for superior performance |
| Large silver alloy contacts for long life prevent sticking, welding and excessive pitting |
| Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance |
| Self-grounding clip (self grounding when used with a grounded metal wallbox) |
| 2 hp at 120 to 277 VAC power rating |
| Brass 8-32 terminal screw |
| 0.048 in thick galvanized steel strap |
| Polycarbonate toggle, thermoplastic base and cover |
| Box mounting |
| Back and side wire connection |
| UL 94-V2 Flammability |
