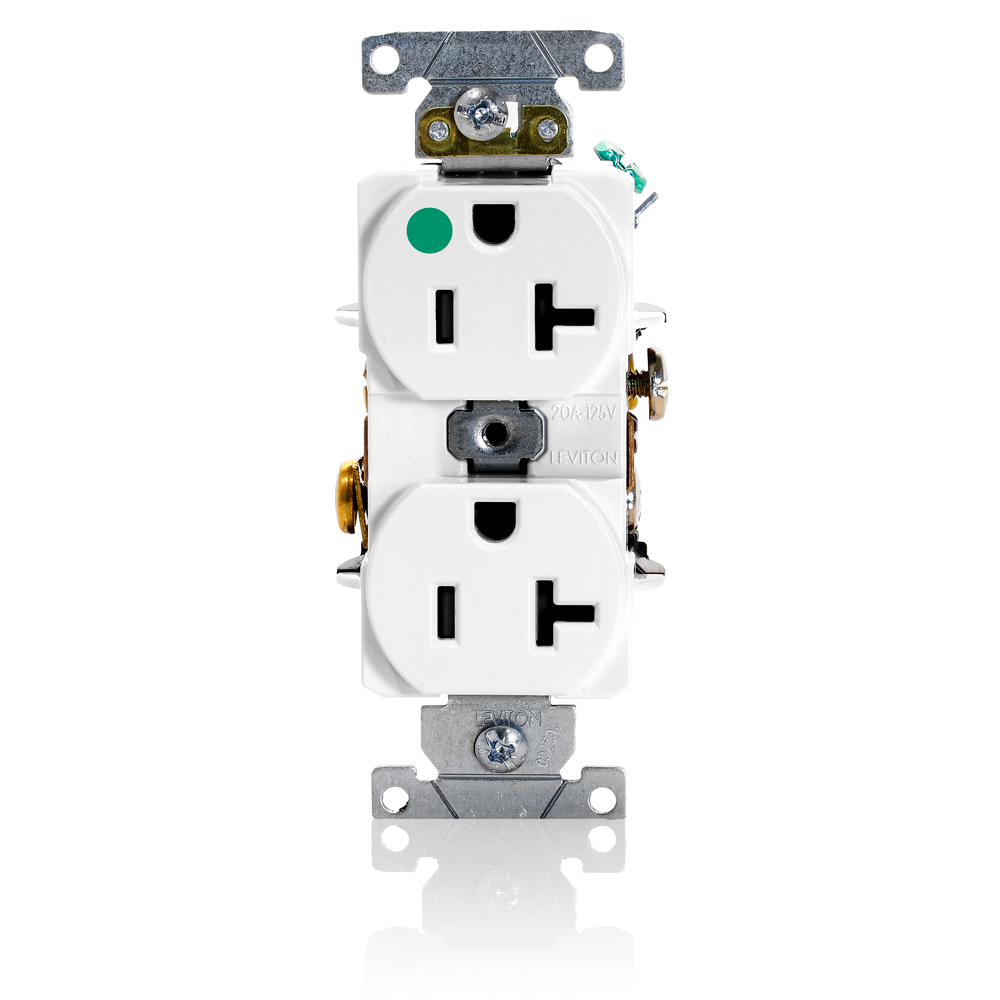

All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Tech Drawing URL - 10962_SPVQOAC7D0RJ3UT1.jpg(Tech Drawing URL)
- Tech Bulletin URL - Leviton_8300_HR_Technical_Bulletin.pdf(Tech Bulletin URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=8300-HW§ion=42416&minisite=10251(Spec Sheet URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35354&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
Commercial |
Impact-resistant thermoplastic nylon cover and body |
Smooth face does not collect dirt |
Four corner latches securely fasten face |
Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity |
High-performance brass no 10-32 terminal screws to reduce conductor oxidation |
Back and side wire ground termination brass strap version |
Back and side wiring options |
Break-off tabs for easy two-circuit conversion |
Apron barrier to prevent accidental contact between terminal screw heads and metal box |
Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator |
