SIRIUS 3RT1046-1AK60 Power Contactor 3RT1046-1AK60, 110/120 VAC Coil, 95 A Max Load, 3NO, 3 Poles

Custom_Product_Images_Illustration

SKU15474

MFGR #3RT1046-1AK60

Your Cost: $446.27/ea

List: ~~$1,000.22~~ /ea

SIEMENS 3RT1046-1AK60 95A 120V CONTACTR

: ARRA Compliant
C
Brand
SIRIUS (Siemens)
Buy American Compliant
C
Catalog Number
3RT1046-1AK60
Coil Power Rating
21/300 VA
Coil Voltage
110/120 VAC
Country of Origin
DE
Currency
USD
Dimensions
146 mm H x 70 mm W x 139 mm D
Enclosure Type
IP00/IP20
EU RoHS Indicator
C
Frequency Rating
50/60 Hz
Gross Weight Per Pack
3.8000 lb
Gross Weight per Pack Metric
1.72
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490065
Height
6.58 in
Height [Metric]
16.7132 cm
Length
6.34 in
Length [Metric]
16.1036 cm
Manufacturer
Siemens
Maximum Load Current
95 A
Mounting Type
Rail/Snap-On/Threaded
Number Of Poles
3
Operating Cycles
10000000
Operating Temperature
-25 to 60
Replacement Catalog Number
3RT20461AK60
Returnable
N
Size
S3
Standards
RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedLRS ListedRINA CertifiedRMRS Approved
Stock Status
NONSTOCK
Terminal Type
Screw
Type
Standard
UNSPSC
39121529
UPC 11
75455441132
UPC 12
754554411323
Wattage
45 kW
Width
3.15 in
Width [Metric]
8.0010 cm
: 3D Rendering
Brochure
Catalog
Computer~Aided [CAD|BIM] Model

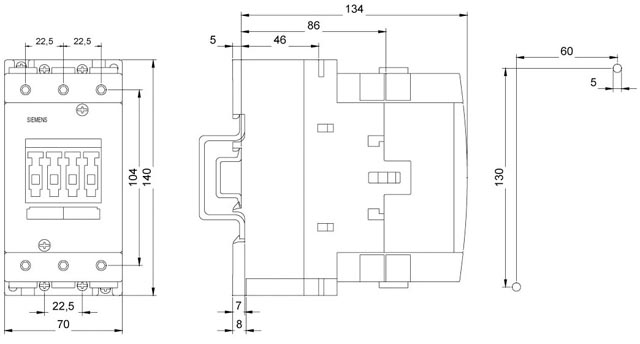

Line Drawing
Seller Home Page
Spec Sheet 1
Spec Sheet
User Manual
: Number Of Poles: 3; Enclosure: S3; Design of the fuse link: Fuse gL/gG: 10 AMP Auxiliary, Fuse gL/gG: 250 AMP Main

300 VA (pick-up), 21 VA (holding) magnet coil at AC

0.52 (closing), 0.29 (holding) power factor
: http://www.automation.siemens.com/bilddb/download.aspx?reqInsID=874984

ARRA Compliant	C
Brand	SIRIUS (Siemens)
Buy American Compliant	C
Catalog Number	3RT1046-1AK60
Coil Power Rating	21/300 VA
Coil Voltage	110/120 VAC
Country of Origin	DE
Currency	USD
Dimensions	146 mm H x 70 mm W x 139 mm D
Enclosure Type	IP00/IP20
EU RoHS Indicator	C
Frequency Rating	50/60 Hz
Gross Weight Per Pack	3.8000 lb
Gross Weight per Pack Metric	1.72
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490065
Height	6.58 in
Height [Metric]	16.7132 cm
Length	6.34 in
Length [Metric]	16.1036 cm
Manufacturer	Siemens
Maximum Load Current	95 A
Mounting Type	Rail/Snap-On/Threaded
Number Of Poles	3
Operating Cycles	10000000
Operating Temperature	-25 to 60
Replacement Catalog Number	3RT20461AK60
Returnable	N
Size	S3
Standards	RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedLRS ListedRINA CertifiedRMRS Approved
Stock Status	NONSTOCK
Terminal Type	Screw
Type	Standard
UNSPSC	39121529
UPC 11	75455441132
UPC 12	754554411323
Wattage	45 kW
Width	3.15 in
Width [Metric]	8.0010 cm
