SIRIUS (Siemens)

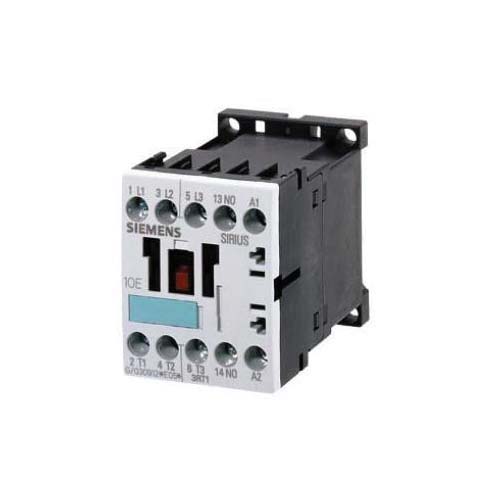

SIRIUS 3RT1015-1AF02 Power Contactor 3RT1015-1AF02, 110 VAC Coil, 7 A Max Load, 3NO, 3 Poles
SIRIUS (Siemens)
SIRIUS 3RT1015-1AF02 Power Contactor 3RT1015-1AF02, 110 VAC Coil, 7 A Max Load, 3NO, 3 Poles
SKU1177150
MFGR #3RT1015-1AF02
Your Cost: $41.49/ea
List: SIEMENS 3RT1015-1AF02 110V CONTACTOR
SIEMENS 3RT1015-1AF02 110V CONTACTOR
Catalog Number 3RT1015-1AF02 Coil Power Rating 27 VA Pickup/4.4 VA Holding Country of Origin DE Dimensions 57-1/2mm H x 45mm W x 72 mm D Enclosure Type IP20 Frequency Rating 50/60 Hz Gross Weight Per Pack 0.4500 lb Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1NC Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -25 to 60 Returnable N Size Size S00 Standards UL Listed, CCC, CE, CSA, EAC Certified Terminal Type Screw UNSPSC 39121529 UPC 11 75455473230 UPC 12 75455473230 Wattage 3 kW Stock Status NONSTOCK Brand SIRIUS (Siemens) Manufacturer Siemens Coil Voltage 110 VAC Contact Configuration 3NO Maximum Load Current 7 A These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 3RT1015-1AF02 |
| Coil Power Rating | 27 VA Pickup/4.4 VA Holding |
| Country of Origin | DE |
| Dimensions | 57-1/2mm H x 45mm W x 72 mm D |
| Enclosure Type | IP20 |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.4500 lb |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1NC |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Returnable | N |
| Size | Size S00 |
| Standards | UL Listed, CCC, CE, CSA, EAC Certified |
| Terminal Type | Screw |
| UNSPSC | 39121529 |
| UPC 11 | 75455473230 |
| UPC 12 | 75455473230 |
| Wattage | 3 kW |
| Stock Status | NONSTOCK |
| Brand | SIRIUS (Siemens) |
| Manufacturer | Siemens |
| Coil Voltage | 110 VAC |
| Contact Configuration | 3NO |
| Maximum Load Current | 7 A |
| These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring |
