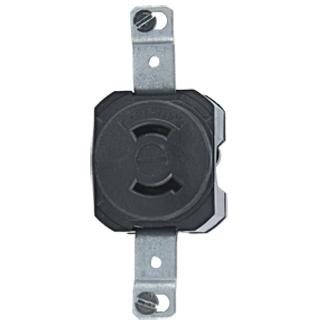

SINGLE RECEPT 15A-125V
SKU73226
MFGR #7535
Your Cost: $51.86/ea
List: Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 7535 Country of Origin MUL Currency USD Dielectric Strength 2000 (Min.) V Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.4775 cm Length 13.3750 in Material Nylon Mounting Box NEMA Rating L1-15R Number Of Poles 2 Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057CSA C22.2 No. 42/LR406Federal Specification WC596/E13399UL94 V-0/V-2 Flammability Rating Temperature Rating -40 to +60 °C Type Locking Single Receptacle UNSPSC 39121406 UPC 11 07847783569 UPC 12 078477835692 Wire Size 18-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Black Number of Wires 2 Voltage Rating 125 V Commercial Box mounting 18 to 10 AWG terminal accommodation 2000 VAC minimum dielectric strength Non-grounding 18 to 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 7535 |
| Country of Origin | MUL |
| Currency | USD |
| Dielectric Strength | 2000 (Min.) V |
| Environmental Conditions | Flammability (Rated V-2, Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Length | 13.3750 in |
| Material | Nylon |
| Mounting | Box |
| NEMA Rating | L1-15R |
| Number Of Poles | 2 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057CSA C22.2 No. 42/LR406Federal Specification WC596/E13399UL94 V-0/V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Type | Locking Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847783569 |
| UPC 12 | 078477835692 |
| Wire Size | 18-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 2 |
| Voltage Rating | 125 V |
| Commercial |
| Box mounting |
| 18 to 10 AWG terminal accommodation |
| 2000 VAC minimum dielectric strength |
| Non-grounding |
| 18 to 10 AWG |
