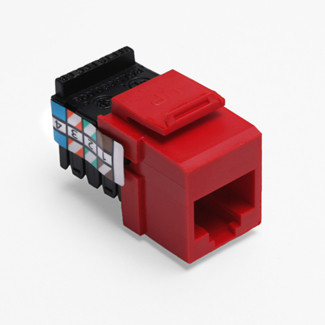

QuickPort® 41108-RC8 Quickport Connector, USOC Voice Module, Flush Mount, 1 Port, Plastic, Crimson Red
Custom_Product_Images_Illustration
QuickPort® 41108-RC8 Quickport Connector, USOC Voice Module, Flush Mount, 1 Port, Plastic, Crimson Red
SKU783532
MFGR #41108-RC8
Your Cost: $4.88/ea
The QuickPort® system, Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes, allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort® family of connectors is compatible in any QuickPort® housing. This simple solution is ideal for any environment that has frequent moves, adds, and changes.
The QuickPort® system, Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes, allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort® family of connectors is compatible in any QuickPort® housing. This simple solution is ideal for any environment that has frequent moves, adds, and changes.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 41108-RC8 Connection 110 Contact 8P8C Contact Material Phosphor Bronze Country of Origin US Currency USD Dimensions 0.83 in H x 0.636 in W x 1.179 in D Environmental Conditions Flammability (Rated V-0 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 5.5000 in Height [Metric] 1.1430 cm Length 7.0000 in Length [Metric] 10.1600 cm Mounting FLUSH Series QuickPort Size 0.83 H x 0.636 W x 1.179 D in Standard CSA Certified;UL Listed;TIA\EIA-568-B;FCC Part 68 Compliant;NEC Article 800 Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedTIA/EIA-568-B/1096-AANSI/TIA-1096-AFCC Part 68NEC Article 800UL94 V-0 Flammability Rating Sub Brand QuickPort Type Voice Grade Quickport Connector UNSPSC 39121444 UPC 11 07847797747 UPC 12 078477977477 Width 6.00 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Color Crimson Material Plastic Module Type USOC/Voice Mounting Type Flush Number of Ports 1 Commercial 1-Year Limited Warranty, Narrow Body Connector, Robust One-Piece Lead-Frame Design, Made in USA Exclusive cutting ledge combines termination and trim in to one labor saving step Narrow body connector allows high port density in a small area Robust 1-piece lead frame design Individual port configurability allows specification flexibility For port identification, use different colored connectors for each application or pre-printed port designation labels Phosphor bronze contact material Narrow body connector, robust one-piece lead frame design Individual port configurability allows specification flexibility Robust one-piece lead frame design For port identification, use different colored connectors for each application or pre-printed port designation Labels USOC and voice-grade modular connectors snap into the entire Leviton QuickPort® family of workstation housings, these include Multimedia Outlet System (with QuickPort® module adapter), Decora® Inserts, patch panels and patch blocks Fire-Retardant Plastic
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 41108-RC8 |
| Connection | 110 |
| Contact | 8P8C |
| Contact Material | Phosphor Bronze |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.83 in H x 0.636 in W x 1.179 in D |
| Environmental Conditions | Flammability (Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 5.5000 in |
| Height [Metric] | 1.1430 cm |
| Length | 7.0000 in |
| Length [Metric] | 10.1600 cm |
| Mounting | FLUSH |
| Series | QuickPort |
| Size | 0.83 H x 0.636 W x 1.179 D in |
| Standard | CSA Certified;UL Listed;TIA\EIA-568-B;FCC Part 68 Compliant;NEC Article 800 Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedTIA/EIA-568-B/1096-AANSI/TIA-1096-AFCC Part 68NEC Article 800UL94 V-0 Flammability Rating |
| Sub Brand | QuickPort |
| Type | Voice Grade Quickport Connector |
| UNSPSC | 39121444 |
| UPC 11 | 07847797747 |
| UPC 12 | 078477977477 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Color | Crimson |
| Material | Plastic |
| Module Type | USOC/Voice |
| Mounting Type | Flush |
| Number of Ports | 1 |
| Commercial |
| 1-Year Limited Warranty, Narrow Body Connector, Robust One-Piece Lead-Frame Design, Made in USA |
| Exclusive cutting ledge combines termination and trim in to one labor saving step |
| Narrow body connector allows high port density in a small area |
| Robust 1-piece lead frame design |
| Individual port configurability allows specification flexibility |
| For port identification, use different colored connectors for each application or pre-printed port designation labels |
| Phosphor bronze contact material |
| Narrow body connector, robust one-piece lead frame design |
| Individual port configurability allows specification flexibility |
| Robust one-piece lead frame design |
| For port identification, use different colored connectors for each application or pre-printed port designation Labels |
| USOC and voice-grade modular connectors snap into the entire Leviton QuickPort® family of workstation housings, these include Multimedia Outlet System (with QuickPort® module adapter), Decora® Inserts, patch panels and patch blocks |
| Fire-Retardant Plastic |
