O-Z/Gedney T200ACG 2 IN BODY/CVR/GSKT ASSY
SKU953688
MFGR #T200ACG
Your Cost: $185.44/ea

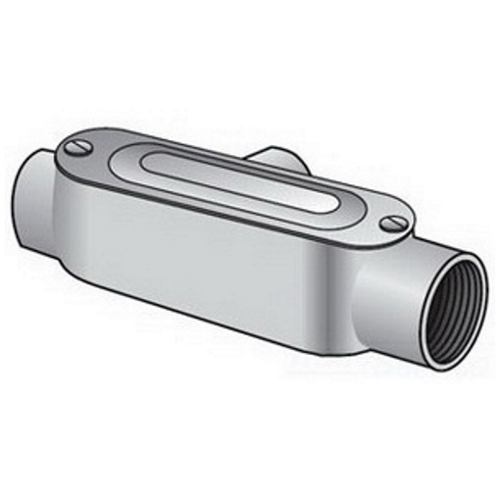

OZ-Gedney Type T Conduit Body, Cover And Gasket Assembly, 2 IN Hub, Length: 10-5/8 IN, 3-3/8 IN Height, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (2/0 AWG) Conductors, 75 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
OZ-Gedney Type T Conduit Body, Cover And Gasket Assembly, 2 IN Hub, Length: 10-5/8 IN, 3-3/8 IN Height, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (2/0 AWG) Conductors, 75 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
Application For Rigid Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number T200ACG Connection Tapered FNPT Connection Type Tapered/Threaded Country of Origin IN Currency USD Dimensions 10-5/8 in L x 3-3/8 in H EU RoHS Indicator N Gross Weight Per Pack 2.5000 lb Gross Weight per Pack Metric 1.13 Gross Weight UOM Metric kg Height 4.10 in Height [Metric] 10.4140 cm Length 12.40 in Length [Metric] 31.4960 cm Standard Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563; NEMA : FB-1, FB-2.10 Standards UL 514AUL File No. E18095CSA C22.2 File No. 18CSA File No. LR-9795Federal Specification A-A-50563NEMA FB-1/FB-2.1 Type Type T Conduit Body, Cover And Gasket Assembly UNSPSC 39131708 UPC 11 78312606457 UPC 12 783126064575 Width 4.80 in Width [Metric] 12.1920 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Capacity 75 in³ Finish Aluminum Hub Size 2 in Material Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene For Rigid Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Closed-cell neoprene gasket; Tapered threaded hubs (NPT); Threaded style is raintight when used with casketed covers; Internal volume and maximum wire capacity clearly marked on castings; Suitable for wet locations Ready to use Tapered threaded hubs (NPT) Threaded style is raintight when used with casketed covers Internal volume and maximum wire capacity clearly marked on castings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Rigid Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | T200ACG |
| Connection | Tapered FNPT |
| Connection Type | Tapered/Threaded |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 10-5/8 in L x 3-3/8 in H |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 2.5000 lb |
| Gross Weight per Pack Metric | 1.13 |
| Gross Weight UOM Metric | kg |
| Height | 4.10 in |
| Height [Metric] | 10.4140 cm |
| Length | 12.40 in |
| Length [Metric] | 31.4960 cm |
| Standard | Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563; NEMA : FB-1, FB-2.10 |
| Standards | UL 514AUL File No. E18095CSA C22.2 File No. 18CSA File No. LR-9795Federal Specification A-A-50563NEMA FB-1/FB-2.1 |
| Type | Type T Conduit Body, Cover And Gasket Assembly |
| UNSPSC | 39131708 |
| UPC 11 | 78312606457 |
| UPC 12 | 783126064575 |
| Width | 4.80 in |
| Width [Metric] | 12.1920 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Capacity | 75 in³ |
| Finish | Aluminum |
| Hub Size | 2 in |
| Material | Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene |
| For Rigid Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Closed-cell neoprene gasket; Tapered threaded hubs (NPT); Threaded style is raintight when used with casketed covers; Internal volume and maximum wire capacity clearly marked on castings; Suitable for wet locations |
| Ready to use |
| Tapered threaded hubs (NPT) |
| Threaded style is raintight when used with casketed covers |
| Internal volume and maximum wire capacity clearly marked on castings |
