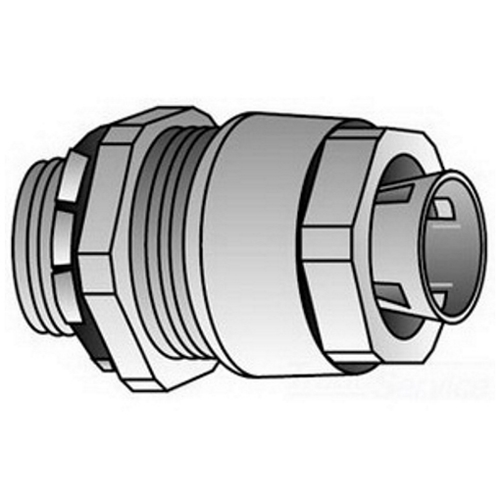

O-Z/Gedney SR-50-500 Grip-Tite® Strain Relief Straight Cord Connector, 1/2 in Trade, 3/8 to 1/2 in Cable Openings, Malleable Iron
Custom_Product_Images_Illustration
O-Z/Gedney SR-50-500 Grip-Tite® Strain Relief Straight Cord Connector, 1/2 in Trade, 3/8 to 1/2 in Cable Openings, Malleable Iron
SKU88784
MFGR #SR-50-500
Your Cost: $8.11/ea
List: Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.
Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.
Application For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways ARRA Compliant Y Buy American Compliant N Catalog Number SR-50-500 Color Blue Conductor Range 0.375 - 0.5 IN Connection Tapered MNPT Connection Type Tapered MNPT Country of Origin MX Currency USD Dimensions 1.38 in Dia x 1.25 in L Enclosure NEMA 4 EU RoHS Indicator Y Gross Weight Per Pack 0.1300 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 0.20 in Height [Metric] 5.0800 mm Length 7.00 in Length [Metric] 17.7800 cm NEMA Rating NEMA 4 Series SR Series Size 1/2 in Standards ARRA CompliantRoHS CompliantCSA 009795 C22.2 No. 18Federal Specification W-F-406EUL File No. E11857UL 514B Temperature Rating 90 °C Type Type SR Grip-Tite Strain Relief Straight Connector UNSPSC 39121431 UPC 11 78312650652 UPC 12 783126506525 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Cable Openings 3/8 to 1/2 in Finish ZINC PLATED Material Iron/Neoprene/Nylon/PVC/Steel Trade Size 1/2 in For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways Provide strain relief to protect the cord or cable from pullout; Grip-tite style, 2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal (up to 1 IN diameter cord range); Simple installation, cord can be installed without disassembly of the fitting; Liquidtight/oiltight/raintight; Suitable for NEMA 4 enclosures and other wet locations; Slim diameter profile allows close spacing between connectors; Furnished complete with sealing ring and locknut; Colored gripper allows for easy identification; UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant) Grip-tite style-2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal Dual-grommet style for over 1 in diameter cord range Removable insert allows for wider range of cable diameters within single fitting Liquid tight or oil tight or raintight UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL Listed conduit hub Suitable for NEMA 4 enclosures and other wet locations Furnished complete with sealing ring and locknut Colored gripper allows for easy identification 0.53 in throat I.D Liquidtight/oiltight/raintight SJ/SJTO/SJO/STO/S/SO cable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | SR-50-500 |
| Color | Blue |
| Conductor Range | 0.375 - 0.5 IN |
| Connection | Tapered MNPT |
| Connection Type | Tapered MNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.38 in Dia x 1.25 in L |
| Enclosure | NEMA 4 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1300 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 0.20 in |
| Height [Metric] | 5.0800 mm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| NEMA Rating | NEMA 4 |
| Series | SR Series |
| Size | 1/2 in |
| Standards | ARRA CompliantRoHS CompliantCSA 009795 C22.2 No. 18Federal Specification W-F-406EUL File No. E11857UL 514B |
| Temperature Rating | 90 °C |
| Type | Type SR Grip-Tite Strain Relief Straight Connector |
| UNSPSC | 39121431 |
| UPC 11 | 78312650652 |
| UPC 12 | 783126506525 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Cable Openings | 3/8 to 1/2 in |
| Finish | ZINC PLATED |
| Material | Iron/Neoprene/Nylon/PVC/Steel |
| Trade Size | 1/2 in |
| For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways |
| Provide strain relief to protect the cord or cable from pullout; Grip-tite style, 2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal (up to 1 IN diameter cord range); Simple installation, cord can be installed without disassembly of the fitting; Liquidtight/oiltight/raintight; Suitable for NEMA 4 enclosures and other wet locations; Slim diameter profile allows close spacing between connectors; Furnished complete with sealing ring and locknut; Colored gripper allows for easy identification; UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant) |
| Grip-tite style-2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal |
| Dual-grommet style for over 1 in diameter cord range |
| Removable insert allows for wider range of cable diameters within single fitting |
| Liquid tight or oil tight or raintight |
| UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL Listed conduit hub |
| Suitable for NEMA 4 enclosures and other wet locations |
| Furnished complete with sealing ring and locknut |
| Colored gripper allows for easy identification |
| 0.53 in throat I.D |
| Liquidtight/oiltight/raintight |
| SJ/SJTO/SJO/STO/S/SO cable |
