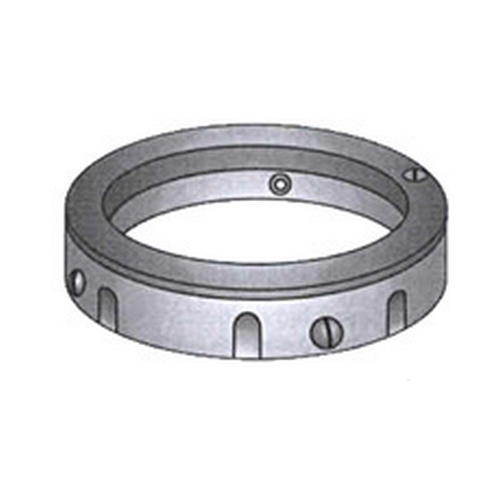

O-Z/Gedney SB-300 3 IN SSCR INSUL BSHG
SKU311666
MFGR #SB300
Your Cost: $59.20/ea
Conduit Hardware, Bushings, Insulating, Trade Size: 3 Inch, Material: Malleable Iron or Steel/Zinc Plated, Connection Type: Threadless, Maximum Temperature Rating: 150 Degree C, Features: For Rigid and IMC, Outside Diameter: 4 Inch, Width: 1 Inch
Conduit Hardware, Bushings, Insulating, Trade Size: 3 Inch, Material: Malleable Iron or Steel/Zinc Plated, Connection Type: Threadless, Maximum Temperature Rating: 150 Degree C, Features: For Rigid and IMC, Outside Diameter: 4 Inch, Width: 1 Inch
ARRA Compliant C Buy American Compliant N Catalog Number SB300 Country of Origin MX Currency USD Dimensions 4 in OD x 1 in W EU RoHS Indicator N Gross Weight Per Pack 0.5400 lb Gross Weight per Pack Metric 0.24 Gross Weight UOM Metric kg Height 0.80 in Height [Metric] 20.3200 mm Insulated|Non~Insulated Insulated Length 7.80 in Length [Metric] 19.8120 cm Standards ARRA CompliantUL File No. E11853/514BCSA C22.2 No. 18 011584Federal Specification W-F-408E NEMA:FB-1 Temperature Rating 150 °C Type Type SB Specification Grade UNSPSC 39121312 UPC 11 78312648014 UPC 12 783126480146 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Zinc Plated Material Malleable Iron Trade Size 3 in O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress Molded on high impact phenolic thermosetting insulation Positive metallic conduit stop
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | SB300 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in OD x 1 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.5400 lb |
| Gross Weight per Pack Metric | 0.24 |
| Gross Weight UOM Metric | kg |
| Height | 0.80 in |
| Height [Metric] | 20.3200 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 7.80 in |
| Length [Metric] | 19.8120 cm |
| Standards | ARRA CompliantUL File No. E11853/514BCSA C22.2 No. 18 011584Federal Specification W-F-408E NEMA:FB-1 |
| Temperature Rating | 150 °C |
| Type | Type SB Specification Grade |
| UNSPSC | 39121312 |
| UPC 11 | 78312648014 |
| UPC 12 | 783126480146 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Zinc Plated |
| Material | Malleable Iron |
| Trade Size | 3 in |
| O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration |
| They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress |
| Molded on high impact phenolic thermosetting insulation |
| Positive metallic conduit stop |
