O-Z/Gedney

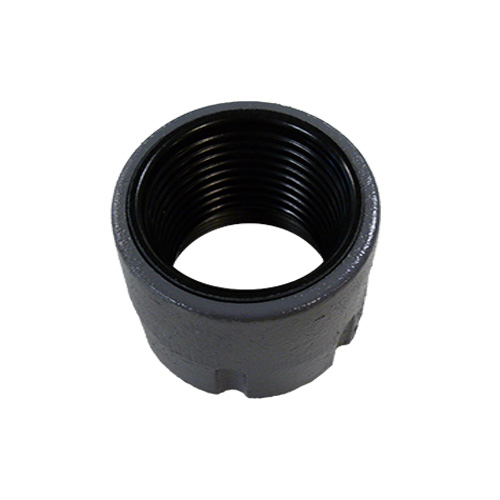

O-Z/Gedney S-2500-BO CABLE SUPPORT BODY ONLY
O-Z/Gedney
O-Z/Gedney S-2500-BO CABLE SUPPORT BODY ONLY
SKU372474
MFGR #S2500B0
Your Cost: $275.01/ea
Cable Support Body, Type Knurled/Tapered, Plug Type 1-Piece, Conduit Type Rigid/IMC/EMT, Voltage Rating 600 V, Conduit Position Vertical, Conductor Size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 KCMIL (Aluminum/Copper Clad Aluminum/Copper), Conduit Size 2-1/2 Inch, Cable Type Non-Armored, Material Hot Dip Galvanized Malleable/Ductile Iron, Application Indoor, Approval UL 514B, CSA C22.2, Applicable Standard NEC 300-19
Cable Support Body, Type Knurled/Tapered, Plug Type 1-Piece, Conduit Type Rigid/IMC/EMT, Voltage Rating 600 V, Conduit Position Vertical, Conductor Size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 KCMIL (Aluminum/Copper Clad Aluminum/Copper), Conduit Size 2-1/2 Inch, Cable Type Non-Armored, Material Hot Dip Galvanized Malleable/Ductile Iron, Application Indoor, Approval UL 514B, CSA C22.2, Applicable Standard NEC 300-19
Application TWO or more wires - Indoors - at voltages to 600V ARRA Compliant Y Buy American Compliant Y Catalog Number S2500B0 Country of Origin US Currency USD Dimensions 3-3/4 in OD x 3 in H EU RoHS Indicator N Finish Hot-Dip Galvanize Gross Weight Per Pack 2.0000 lb Gross Weight per Pack Metric 0.91 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Length 5.00 in Length [Metric] 12.7000 cm Standards ANSI/UL 514BARRA CompliantBAA CompliantCSA C22.2 #18.3/011584NEC 300-19UL E-11853 Suitable For Use With RMC, IMC and EMT Conduit Type One Piece Plug Type S - Body Only UNSPSC 39121311 UPC 11 78312602256 UPC 12 783126022568 Width 4.00 in Width [Metric] 10.1600 cm Stock Status NORMALLY STOCKED Brand O-Z/Gedney Manufacturer O-Z/Gedney Material Malleable Or Ductile Iron Size 2-1/2 in TWO or more wires - Indoors - at voltages to 600V Threaded for Rigid Conduit, IMC and EMT with pOZi-grip S-style Wedging Plug For two or more wires indoors at voltages to 600 VAC Use with all types of insulations at voltages to and including 600 V The fastest and easiest type cable support to install The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip™ plug provide positive support well in excess of code requirements If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug™ grounding lug should be mounted on cable support body One-piece plug tapered body 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil (aluminum/copper clad aluminum/copper) conductor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | TWO or more wires - Indoors - at voltages to 600V |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | S2500B0 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3-3/4 in OD x 3 in H |
| EU RoHS Indicator | N |
| Finish | Hot-Dip Galvanize |
| Gross Weight Per Pack | 2.0000 lb |
| Gross Weight per Pack Metric | 0.91 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Standards | ANSI/UL 514BARRA CompliantBAA CompliantCSA C22.2 #18.3/011584NEC 300-19UL E-11853 |
| Suitable For Use With | RMC, IMC and EMT Conduit |
| Type | One Piece Plug Type S - Body Only |
| UNSPSC | 39121311 |
| UPC 11 | 78312602256 |
| UPC 12 | 783126022568 |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Material | Malleable Or Ductile Iron |
| Size | 2-1/2 in |
| TWO or more wires - Indoors - at voltages to 600V |
| Threaded for Rigid Conduit, IMC and EMT with pOZi-grip S-style Wedging Plug |
| For two or more wires indoors at voltages to 600 VAC |
| Use with all types of insulations at voltages to and including 600 V |
| The fastest and easiest type cable support to install |
| The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip™ plug provide positive support well in excess of code requirements |
| If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug™ grounding lug should be mounted on cable support body |
| One-piece plug tapered body |
| 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil (aluminum/copper clad aluminum/copper) conductor |
