O-Z/Gedney

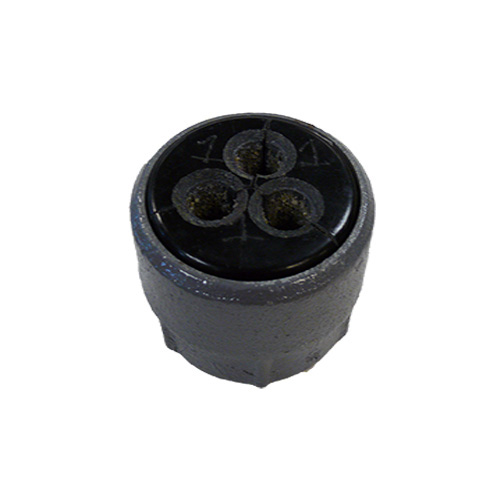

O-Z/Gedney R-3001-2 Multiple Segment Plug With Pozi-Grip R-Style Wedging Plug, 3 in, Vertical Mount
Custom_Product_Images_Illustration
O-Z/Gedney
O-Z/Gedney R-3001-2 Multiple Segment Plug With Pozi-Grip R-Style Wedging Plug, 3 in, Vertical Mount
SKU209415
MFGR #R30012
Your Cost: $602.28/ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. Threaded and threadless, insulated or uninsulated noninsulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. Threaded and threadless, insulated or uninsulated noninsulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
ARRA Compliant Y Buy American Compliant Y Catalog Number R30012 Country of Origin US Currency USD EU RoHS Indicator N Gross Weight Per Pack 4.0000 lb Gross Weight per Pack Metric 1.81 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Length 5.00 in Length [Metric] 12.7000 cm Standards UL E11853 File No. 514B, CSA 011584 C22.2 No.18.3 UNSPSC 39121311 UPC 11 78312602218 UPC 12 783126022186 Width 4.00 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney For supporting non-armored electrical cables in vertical conduit risers Tapered body Number of conductors 5 (different-size) Conductor size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil (aluminum/copper clad aluminum/copper) Due to the possibility of Magnetic Induction Heating, a single alternating current conductor should not be used in iron fittings Threaded for rigid conduit and IMC Use with all types of insulations at all voltages The pOZi-grip wedging plug exerts uniform pressure around the cable, providing holding force in excess of that required by code without deforming cable insulation Body Only can be ordered separately, for installation prior to wire pulling, plug Only can be ordered later, once wires are in place If mounting on a non-metallic/non-grounded conduit, a Lay In-Lug grounding lug should be mounted on cable support body For Threadless Rigid Conduit, Threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector For one or more wires Type R
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | R30012 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 4.0000 lb |
| Gross Weight per Pack Metric | 1.81 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Standards | UL E11853 File No. 514B, CSA 011584 C22.2 No.18.3 |
| UNSPSC | 39121311 |
| UPC 11 | 78312602218 |
| UPC 12 | 783126022186 |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| For supporting non-armored electrical cables in vertical conduit risers |
| Tapered body |
| Number of conductors 5 (different-size) |
| Conductor size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil (aluminum/copper clad aluminum/copper) |
| Due to the possibility of Magnetic Induction Heating, a single alternating current conductor should not be used in iron fittings |
| Threaded for rigid conduit and IMC |
| Use with all types of insulations at all voltages |
| The pOZi-grip wedging plug exerts uniform pressure around the cable, providing holding force in excess of that required by code without deforming cable insulation |
| Body Only can be ordered separately, for installation prior to wire pulling, plug Only can be ordered later, once wires are in place |
| If mounting on a non-metallic/non-grounded conduit, a Lay In-Lug grounding lug should be mounted on cable support body |
| For Threadless Rigid Conduit, Threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector |
| For one or more wires |
| Type R |
