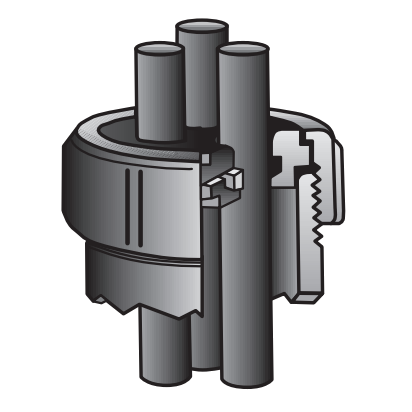

O-Z/Gedney KR-500 Type KR Conduit Sealing Bushing, 3-3/4 in AC Cable, 5 in Trade, Ductile Iron/Malleable Iron
Conduit Bushings
410226
MFG #: KR500
O-Z/Gedney
792.68000
/ ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
- Features
| O-Z/Gedney cable terminators and conduit sealing bushings are used on conduit ends and cable ends to effectively seal the cable and conduit |
| Provides a seal at the top of a vertical conduit for one or more single or multiple conductor cables |
| For rubber or plastic insulated cables in rigid conduit |
| Lay-In-Lug grounding lug can be mounted on locking collar |
| Can be field-drilled |
| For applications involving IMC, EMT or PVC conduit, a short nipple of rigid conduit should be used entering the bottom threaded hub |
| Canvas bakelite sealing disc |
| (1) 3.75 in, (2) 1.99 in, (3) 1.91 in, (4) 1.6 in cable size |
