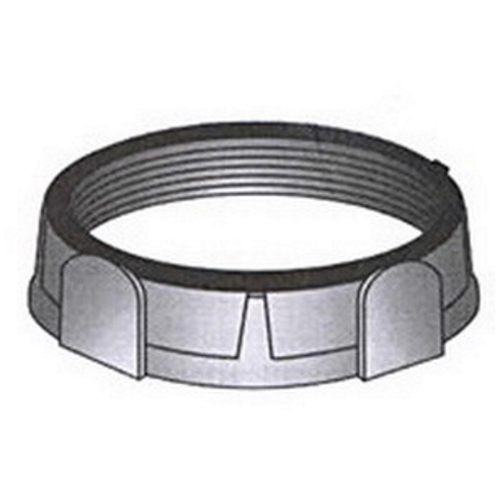

O-Z/Gedney IBC-350 3-1/2 IN INSUL THD BSHG
SKU22167
MFGR #IBC350
Your Cost: $36.41/ea
List: OZ-Gedney Type IBC Insulated Bushing, Size: 3-1/2 IN, Malleable Iron Body, Thermoplastic Insulator, Finish: Zinc Plated, Connection: Threaded NPS, 150 DEG C, 4-1/2 IN Outside Diameter, 1-3/16 IN Width, Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1, For Rigid Conduit And IMC
OZ-Gedney Type IBC Insulated Bushing, Size: 3-1/2 IN, Malleable Iron Body, Thermoplastic Insulator, Finish: Zinc Plated, Connection: Threaded NPS, 150 DEG C, 4-1/2 IN Outside Diameter, 1-3/16 IN Width, Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1, For Rigid Conduit And IMC
Application For Rigid Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number IBC350 Connection Threaded NPS Country of Origin MX Currency USD Diameter 4-1/2 in EU RoHS Indicator N Gross Weight Per Pack 0.5700 lb Gross Weight per Pack Metric 0.26 Gross Weight UOM Metric kg Height 0.96 in Height [Metric] 24.3840 mm Length 7.90 in Length [Metric] 20.0660 cm Series IBC Size 3-1/2 in Standard Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 Standards ARRA CompliantCEC CertifiedCSA 065178/C22.2 No. 41NEC CertifiedNEMA FB-1UL 514B/E-11853 Temperature Rating 150 °C Throat Thermoplastic Insulated Type Type IBC Insulated Bushing UNSPSC 39121312 UPC 11 78312630260 UPC 12 783126302608 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Zinc Plated Material Iron/Thermoplastic Trade Size 3-1/2 in For Rigid Conduit And IMC These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit; Insulating liner material is UL V-O rated (self extinguishing); Plastic insulator is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Temperature rating 302 deg F Used with a locknut to terminate RMC or IMC conduit to a box or enclosure Provides a smooth pulling surface These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit Insulating liner material is UL V-O rated (self extinguishing) Plastic insulator is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Rigid Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | IBC350 |
| Connection | Threaded NPS |
| Country of Origin | MX |
| Currency | USD |
| Diameter | 4-1/2 in |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.5700 lb |
| Gross Weight per Pack Metric | 0.26 |
| Gross Weight UOM Metric | kg |
| Height | 0.96 in |
| Height [Metric] | 24.3840 mm |
| Length | 7.90 in |
| Length [Metric] | 20.0660 cm |
| Series | IBC |
| Size | 3-1/2 in |
| Standard | Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 |
| Standards | ARRA CompliantCEC CertifiedCSA 065178/C22.2 No. 41NEC CertifiedNEMA FB-1UL 514B/E-11853 |
| Temperature Rating | 150 °C |
| Throat | Thermoplastic Insulated |
| Type | Type IBC Insulated Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78312630260 |
| UPC 12 | 783126302608 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Zinc Plated |
| Material | Iron/Thermoplastic |
| Trade Size | 3-1/2 in |
| For Rigid Conduit And IMC |
| These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit; Insulating liner material is UL V-O rated (self extinguishing); Plastic insulator is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Temperature rating 302 deg F |
| Used with a locknut to terminate RMC or IMC conduit to a box or enclosure |
| Provides a smooth pulling surface |
| These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit |
| Insulating liner material is UL V-O rated (self extinguishing) |
| Plastic insulator is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes |
| Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
