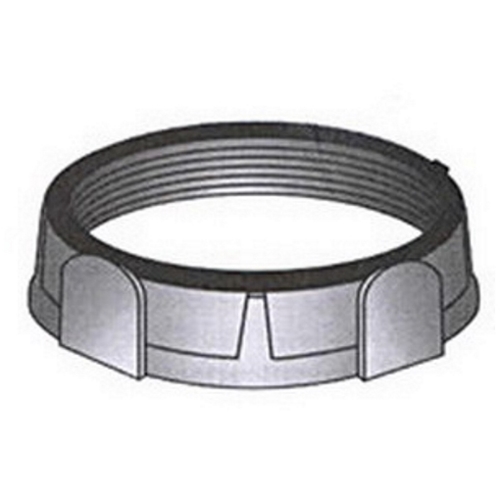

O-Z/Gedney IBC-300 Type IBC Threaded Conduit Bushing, 3 in Trade, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
O-Z/Gedney IBC-300 Type IBC Threaded Conduit Bushing, 3 in Trade, Malleable Iron, Zinc Plated
SKU22165
MFGR #IBC300
Your Cost: $28.49/ea
List: O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Rigid Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number IBC300 Connection Threaded NPS Country of Origin MX Currency USD EU RoHS Indicator N Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.22 Gross Weight UOM Metric kg Height 0.84 in Height [Metric] 21.3360 mm Length 6.90 in Length [Metric] 17.5260 cm Size 3 in Standard Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 Standards UL E-11853, CSA 009795, UL 514B, CSA C22.2 No.18, W-F-408E Federal Specification, FB-1 NEMA Temperature Rating 150 °C Type Type IBC Insulated Bushing UNSPSC 39121312 UPC 11 78312630240 UPC 12 783126302400 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Zinc Plated Material Iron/Thermoplastic For Rigid Conduit And IMC These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit; Insulating liner material is UL V-O rated (self extinguishing); Plastic insulator is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit Insulating liner material is UL V-O rated (self extinguishing) Plastic insulator is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Thermoplastic insulator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Rigid Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | IBC300 |
| Connection | Threaded NPS |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.22 |
| Gross Weight UOM Metric | kg |
| Height | 0.84 in |
| Height [Metric] | 21.3360 mm |
| Length | 6.90 in |
| Length [Metric] | 17.5260 cm |
| Size | 3 in |
| Standard | Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 |
| Standards | UL E-11853, CSA 009795, UL 514B, CSA C22.2 No.18, W-F-408E Federal Specification, FB-1 NEMA |
| Temperature Rating | 150 °C |
| Type | Type IBC Insulated Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78312630240 |
| UPC 12 | 783126302400 |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Zinc Plated |
| Material | Iron/Thermoplastic |
| For Rigid Conduit And IMC |
| These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit; Insulating liner material is UL V-O rated (self extinguishing); Plastic insulator is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit |
| Insulating liner material is UL V-O rated (self extinguishing) |
| Plastic insulator is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes |
| Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Thermoplastic insulator |
