O-Z/Gedney HBLG-1104 1 IN HDG INSUL GNDG B
SKU612749
MFGR #HBLG1104
Your Cost: $22.69/ea

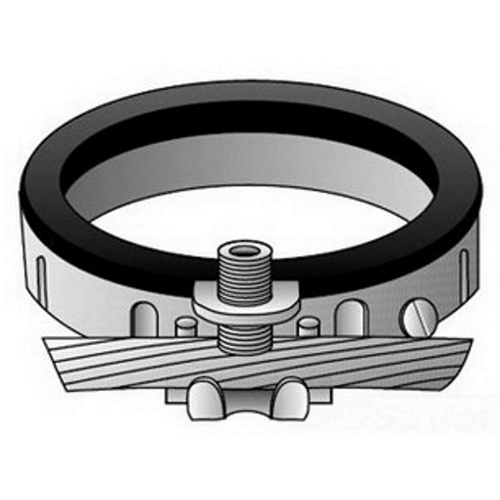

OZ-Gedney Type HBLG Insulated Grounding Bushing, Size: 1 IN, Malleable Iron Body, Stainless Steel Screws, Finish: Hot Dip Or Mechanically Galvanized, Connection: Set-Screw, 150 DEG C, 1-5/8 IN Outside Diameter, 3/4 IN Width, 14 - 4 AWG Grounding
OZ-Gedney Type HBLG Insulated Grounding Bushing, Size: 1 IN, Malleable Iron Body, Stainless Steel Screws, Finish: Hot Dip Or Mechanically Galvanized, Connection: Set-Screw, 150 DEG C, 1-5/8 IN Outside Diameter, 3/4 IN Width, 14 - 4 AWG Grounding
Application For Threaded Rigid Conduit, IMC And EMT Conduit ARRA Compliant Y Buy American Compliant N Catalog Number HBLG1104 Connection Set-Screw Country of Origin MX Currency USD EU RoHS Indicator N Finish Hot-Dip Galvanize Gross Weight Per Pack 0.1300 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.16 in Height [Metric] 4.0640 mm Length 5.50 in Length [Metric] 13.9700 cm Size 1 in Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 Temperature Rating 150 °C Type Type HBLG Insulated Grounding Bushing UNSPSC 39121312 UPC 11 78312627025 UPC 12 783126270259 Width 5.70 in Width [Metric] 14.4780 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Material Malleable Iron Body, Stainless Steel Screws For Threaded Rigid Conduit, IMC And EMT Conduit O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug; Mechanically galvanized finish provides a plating thickness equivalent to hot-dip process, meeting ASTM A-153 performance criteria; Unlike the hot-dip process, mechanical galvanizing provides
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Threaded Rigid Conduit, IMC And EMT Conduit |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | HBLG1104 |
| Connection | Set-Screw |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Finish | Hot-Dip Galvanize |
| Gross Weight Per Pack | 0.1300 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.16 in |
| Height [Metric] | 4.0640 mm |
| Length | 5.50 in |
| Length [Metric] | 13.9700 cm |
| Size | 1 in |
| Standard | Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Temperature Rating | 150 °C |
| Type | Type HBLG Insulated Grounding Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78312627025 |
| UPC 12 | 783126270259 |
| Width | 5.70 in |
| Width [Metric] | 14.4780 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Material | Malleable Iron Body, Stainless Steel Screws |
| For Threaded Rigid Conduit, IMC And EMT Conduit |
| O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug; Mechanically galvanized finish provides a plating thickness equivalent to hot-dip process, meeting ASTM A-153 performance criteria; Unlike the hot-dip process, mechanical galvanizing provides |
