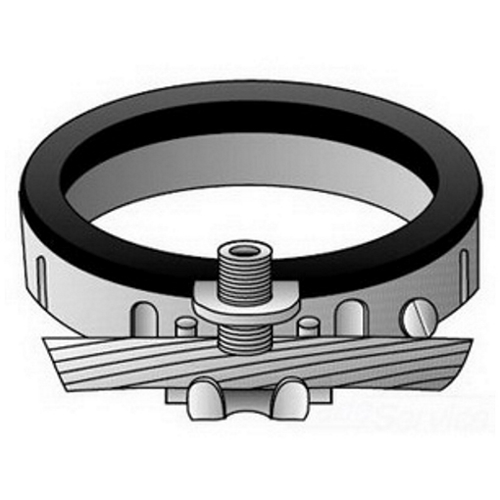

O-Z/Gedney BLG-2022 Type BLG Threaded Grounding Bushing, 8 to 2/0 AWG AC Cable, 2 in Trade, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
O-Z/Gedney BLG-2022 Type BLG Threaded Grounding Bushing, 8 to 2/0 AWG AC Cable, 2 in Trade, Malleable Iron, Zinc Plated
SKU22096
MFGR #BLG2022
Your Cost: $34.59/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Threaded Rigid Conduit, IMC And EMT Conduit ARRA Compliant Y Buy American Compliant N Catalog Number BLG2022 Connection Set-Screw Country of Origin MX Currency USD Dimensions 2-3/4 in Dia x 7/8 in W EU RoHS Indicator N Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Height 0.40 in Height [Metric] 10.1600 mm Insulated|Non~Insulated Insulated Length 7.50 in Length [Metric] 19.0500 cm Size 2 in Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 Standards ARRA CompliantCSA 015978CSA 467 C22.2 No.41Federal Specification W-F-408ENEMA FB-1UL 514B E24264 Temperature Rating 150 °C Type Type BLG Insulated Grounding Bushing UNSPSC 39121312 UPC 11 78312604233 UPC 12 783126042337 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney AC Cable Size 8 to 2/0 AWG Finish Zinc Plated Material Malleable Iron Body, Stainless Steel Screws Trade Size 2 in For Threaded Rigid Conduit, IMC And EMT Conduit O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Tin plated copper saddle for use with copper or aluminum conductors from #8 to 4/0; Type BLG insulated lay-In-lug grounding bushings with tin-plated copper grounding path shall be used on all feeder raceways and bushings shall ha O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing Protects insulated conductors from abrasion during pulling and mechanical vibration Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation Allows easy insertion of grounding conductor for through or end connection Low grounding connector profile Spring action design maintains positive firm contact on grounding conductor Set screw provides fixed alignment and positive ground continuity Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures Lugs not sold separately Tin plated copper saddle for use with copper or aluminum conductors from 8 to 4/0 AWG Type BLG insulated lay-In-lug grounding bushings with tin plated copper grounding path shall be used on all feeder raceways and bushings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Threaded Rigid Conduit, IMC And EMT Conduit |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | BLG2022 |
| Connection | Set-Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2-3/4 in Dia x 7/8 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Height | 0.40 in |
| Height [Metric] | 10.1600 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 7.50 in |
| Length [Metric] | 19.0500 cm |
| Size | 2 in |
| Standard | Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Standards | ARRA CompliantCSA 015978CSA 467 C22.2 No.41Federal Specification W-F-408ENEMA FB-1UL 514B E24264 |
| Temperature Rating | 150 °C |
| Type | Type BLG Insulated Grounding Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78312604233 |
| UPC 12 | 783126042337 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| AC Cable Size | 8 to 2/0 AWG |
| Finish | Zinc Plated |
| Material | Malleable Iron Body, Stainless Steel Screws |
| Trade Size | 2 in |
| For Threaded Rigid Conduit, IMC And EMT Conduit |
| O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Tin plated copper saddle for use with copper or aluminum conductors from #8 to 4/0; Type BLG insulated lay-In-lug grounding bushings with tin-plated copper grounding path shall be used on all feeder raceways and bushings shall ha |
| O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing |
| Protects insulated conductors from abrasion during pulling and mechanical vibration |
| Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation |
| Allows easy insertion of grounding conductor for through or end connection |
| Low grounding connector profile |
| Spring action design maintains positive firm contact on grounding conductor |
| Set screw provides fixed alignment and positive ground continuity |
| Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures |
| Lugs not sold separately |
| Tin plated copper saddle for use with copper or aluminum conductors from 8 to 4/0 AWG |
| Type BLG insulated lay-In-lug grounding bushings with tin plated copper grounding path shall be used on all feeder raceways and bushings |
