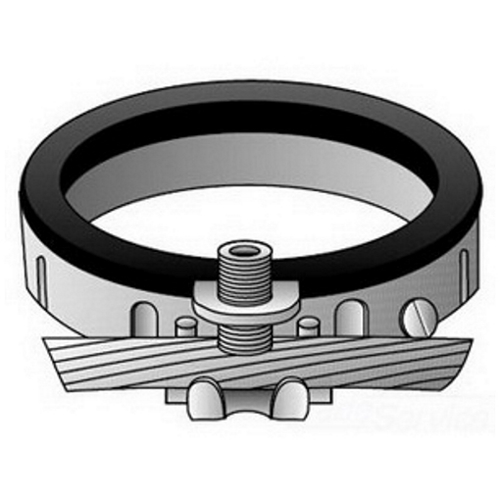

O-Z/Gedney BLG-1504 Type BLG Threaded Grounding Bushing, 14 to 4 AWG AC Cable, 1-1/2 in Trade, Malleable Iron
Custom_Product_Images_Illustration
O-Z/Gedney BLG-1504 Type BLG Threaded Grounding Bushing, 14 to 4 AWG AC Cable, 1-1/2 in Trade, Malleable Iron
SKU22094
MFGR #BLG1504
Your Cost: $23.50/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Threaded Rigid Conduit, IMC And EMT Conduit ARRA Compliant Y Buy American Compliant N Catalog Number BLG1504 Connection Set-Screw Country of Origin MX Currency USD Dimensions 2-1/4 in Dia x 3/4 in W EU RoHS Indicator N Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Height 0.20 in Height [Metric] 5.0800 mm Insulated|Non~Insulated Insulated Length 8.40 in Length [Metric] 21.3360 cm Size 1-1/2 in Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 Standards ARRA CompliantCSA 015978467CSA C22.2 No.41Federal Specification W-F-408ENEMA FB-1UL 514BUL E-24264 Temperature Rating 150 °C Type Type BLG Insulated Grounding Bushing UNSPSC 39121312 UPC 11 78312604224 UPC 12 783126042245 Width 5.40 in Width [Metric] 13.7160 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney AC Cable Size 14 to 4 AWG Finish Zinc Plated Material Malleable Iron Body, Stainless Steel Screws Trade Size 1-1/2 in For Threaded Rigid Conduit, IMC And EMT Conduit O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing Protects insulated conductors from abrasion during pulling and mechanical vibration Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation Allows easy insertion of grounding conductor for through or end connection Low grounding connector profile Spring action design maintains positive firm contact on grounding conductor Set screw provides fixed alignment and positive ground continuity Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures Lugs not sold separately Copper conductor only for 14 to 4 AWG lug
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Threaded Rigid Conduit, IMC And EMT Conduit |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | BLG1504 |
| Connection | Set-Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2-1/4 in Dia x 3/4 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Height | 0.20 in |
| Height [Metric] | 5.0800 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 8.40 in |
| Length [Metric] | 21.3360 cm |
| Size | 1-1/2 in |
| Standard | Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Standards | ARRA CompliantCSA 015978467CSA C22.2 No.41Federal Specification W-F-408ENEMA FB-1UL 514BUL E-24264 |
| Temperature Rating | 150 °C |
| Type | Type BLG Insulated Grounding Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78312604224 |
| UPC 12 | 783126042245 |
| Width | 5.40 in |
| Width [Metric] | 13.7160 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| AC Cable Size | 14 to 4 AWG |
| Finish | Zinc Plated |
| Material | Malleable Iron Body, Stainless Steel Screws |
| Trade Size | 1-1/2 in |
| For Threaded Rigid Conduit, IMC And EMT Conduit |
| O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug |
| O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing |
| Protects insulated conductors from abrasion during pulling and mechanical vibration |
| Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation |
| Allows easy insertion of grounding conductor for through or end connection |
| Low grounding connector profile |
| Spring action design maintains positive firm contact on grounding conductor |
| Set screw provides fixed alignment and positive ground continuity |
| Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures |
| Lugs not sold separately |
| Copper conductor only for 14 to 4 AWG lug |
