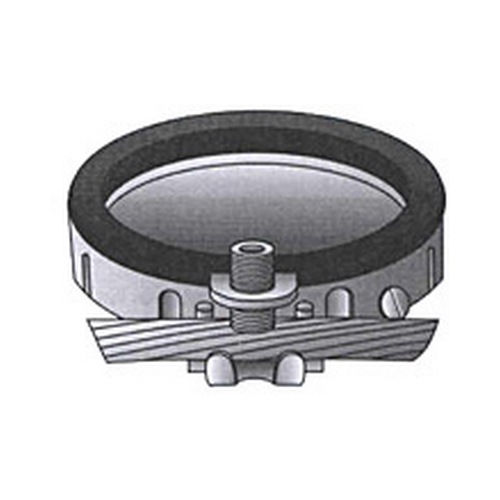

O-Z/Gedney BLG-0522 Type BLG Threaded Grounding Bushing, 8 to 2/0 AWG AC Cable, 1/2 in Trade, Steel, Zinc Plated
Custom_Product_Images_Illustration
O-Z/Gedney BLG-0522 Type BLG Threaded Grounding Bushing, 8 to 2/0 AWG AC Cable, 1/2 in Trade, Steel, Zinc Plated
SKU394086
MFGR #BLG0522
Your Cost: $17.34/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
ARRA Compliant N Buy American Compliant N Catalog Number BLG0522 Country of Origin MX Currency USD Dimensions 1-1/8 in Dia x 1/2 in W EU RoHS Indicator N Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Height 0.08 in Height [Metric] 2.1336 mm Insulated|Non~Insulated Insulated Length 7.70 in Length [Metric] 19.5580 cm Standards CSA 015978467CSA C22.2 No.41Federal Specification W-F-408ENEMA FB-1UL 514BUL E-24264 Temperature Rating 150 °C Type Type BLG UNSPSC 39121312 UPC 11 78312604203 UPC 12 783126042030 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney AC Cable Size 8 to 2/0 AWG Finish Zinc Plated Material Steel Trade Size 1/2 in O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing Protects insulated conductors from abrasion during pulling and mechanical vibration Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation Allows easy insertion of grounding conductor for through or end connection Low grounding connector profile Spring action design maintains positive firm contact on grounding conductor Set screw provides fixed alignment and positive ground continuity Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures Lugs not sold separately Tin plated copper saddle for use with copper or aluminum conductors from 8 to 4/0 AWG Type BLG insulated lay-In-lug grounding bushings with tin plated copper grounding path shall be used on all feeder raceways and bushings
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BLG0522 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-1/8 in Dia x 1/2 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Height | 0.08 in |
| Height [Metric] | 2.1336 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 7.70 in |
| Length [Metric] | 19.5580 cm |
| Standards | CSA 015978467CSA C22.2 No.41Federal Specification W-F-408ENEMA FB-1UL 514BUL E-24264 |
| Temperature Rating | 150 °C |
| Type | Type BLG |
| UNSPSC | 39121312 |
| UPC 11 | 78312604203 |
| UPC 12 | 783126042030 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| AC Cable Size | 8 to 2/0 AWG |
| Finish | Zinc Plated |
| Material | Steel |
| Trade Size | 1/2 in |
| O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing |
| Protects insulated conductors from abrasion during pulling and mechanical vibration |
| Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation |
| Allows easy insertion of grounding conductor for through or end connection |
| Low grounding connector profile |
| Spring action design maintains positive firm contact on grounding conductor |
| Set screw provides fixed alignment and positive ground continuity |
| Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures |
| Lugs not sold separately |
| Tin plated copper saddle for use with copper or aluminum conductors from 8 to 4/0 AWG |
| Type BLG insulated lay-In-lug grounding bushings with tin plated copper grounding path shall be used on all feeder raceways and bushings |
