O-Z/Gedney

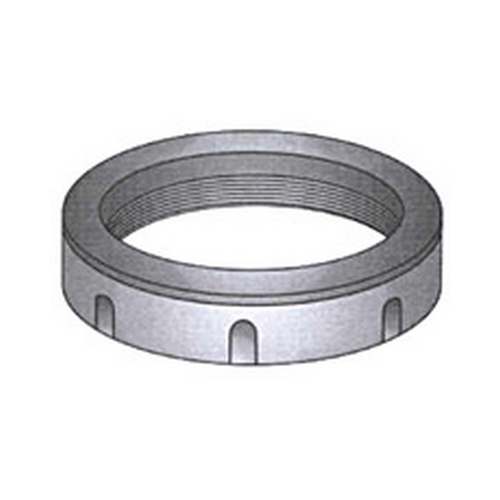

O-Z/Gedney B-350 Type B Threaded Conduit Bushing, 3-1/2 in Trade, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
O-Z/Gedney
O-Z/Gedney B-350 Type B Threaded Conduit Bushing, 3-1/2 in Trade, Malleable Iron, Zinc Plated
SKU448991
MFGR #B350
Your Cost: $61.36/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
ARRA Compliant N Buy American Compliant N Catalog Number B350 Country of Origin MX Currency USD Dimensions 4-1/2 in OD x 1 in W EU RoHS Indicator N Gross Weight Per Pack 0.7800 lb Gross Weight per Pack Metric 0.35 Gross Weight UOM Metric kg Height 0.80 in Height [Metric] 20.3200 mm Insulated|Non~Insulated Insulated Length 12.20 in Length [Metric] 30.9880 cm Standards CSA 011584 C22.2 No.18Federal Specification W-F-408ENEMA FB-1UL 514BUL File No. E11853 Temperature Rating 302 °F Type TYPE B UNSPSC 39121312 UPC 11 78312602924 UPC 12 783126029246 Width 5.60 in Width [Metric] 14.2240 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Zinc Plated Material Malleable Iron Trade Size 3-1/2 in O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress Molded on high impact phenolic thermoscutting insulation Positive metallic conduit stop Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded non-combustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | B350 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4-1/2 in OD x 1 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.7800 lb |
| Gross Weight per Pack Metric | 0.35 |
| Gross Weight UOM Metric | kg |
| Height | 0.80 in |
| Height [Metric] | 20.3200 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 12.20 in |
| Length [Metric] | 30.9880 cm |
| Standards | CSA 011584 C22.2 No.18Federal Specification W-F-408ENEMA FB-1UL 514BUL File No. E11853 |
| Temperature Rating | 302 °F |
| Type | TYPE B |
| UNSPSC | 39121312 |
| UPC 11 | 78312602924 |
| UPC 12 | 783126029246 |
| Width | 5.60 in |
| Width [Metric] | 14.2240 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Zinc Plated |
| Material | Malleable Iron |
| Trade Size | 3-1/2 in |
| O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration |
| They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress |
| Molded on high impact phenolic thermoscutting insulation |
| Positive metallic conduit stop |
| Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded non-combustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors |
