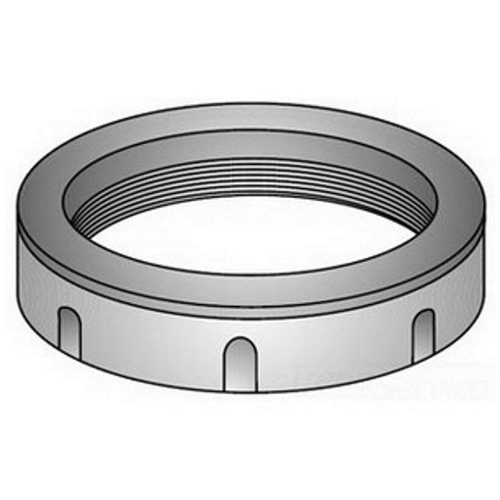

O-Z/Gedney B-100 Type B Threaded Conduit Bushing, 1 in Trade, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
O-Z/Gedney B-100 Type B Threaded Conduit Bushing, 1 in Trade, Malleable Iron, Zinc Plated
SKU88655
MFGR #B-100
Your Cost: $7.44/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Threaded Rigid Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number B-100 Connection Threaded Country of Origin MX Currency USD Dimensions 1-5/8 in OD x 3/4 in W EU RoHS Indicator N Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.16 in Height [Metric] 4.1656 mm Insulated|Non~Insulated Insulated Length 7.70 in Length [Metric] 19.5580 cm Size 1 in Standard Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 Standards ARRA CompliantCSA 011584CSA C22.2 No.18Federal Specification W-F-408ENEMA FB-1UL 514BUL File No. E11853 Temperature Rating 150 °C Type Type B Insulated Bushing UNSPSC 39121312 UPC 11 78312602906 UPC 12 783126029062 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Zinc Plated Material Malleable Iron Trade Size 1 in For Threaded Rigid Conduit And IMC O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration; They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress; Molded-on high impact phenolic thermosetting insulation; Positive metallic conduit stop; Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded noncombustible phenolic insulated surfaces rated 150 DEG C shall be used on the ends of all raceways containing number 4 or larger conductors O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress Molded on high impact phenolic thermoscutting insulation Positive metallic conduit stop Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded non-combustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Threaded Rigid Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | B-100 |
| Connection | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-5/8 in OD x 3/4 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.16 in |
| Height [Metric] | 4.1656 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 7.70 in |
| Length [Metric] | 19.5580 cm |
| Size | 1 in |
| Standard | Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 |
| Standards | ARRA CompliantCSA 011584CSA C22.2 No.18Federal Specification W-F-408ENEMA FB-1UL 514BUL File No. E11853 |
| Temperature Rating | 150 °C |
| Type | Type B Insulated Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78312602906 |
| UPC 12 | 783126029062 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Zinc Plated |
| Material | Malleable Iron |
| Trade Size | 1 in |
| For Threaded Rigid Conduit And IMC |
| O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration; They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress; Molded-on high impact phenolic thermosetting insulation; Positive metallic conduit stop; Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded noncombustible phenolic insulated surfaces rated 150 DEG C shall be used on the ends of all raceways containing number 4 or larger conductors |
| O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration |
| They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress |
| Molded on high impact phenolic thermoscutting insulation |
| Positive metallic conduit stop |
| Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded non-combustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors |
