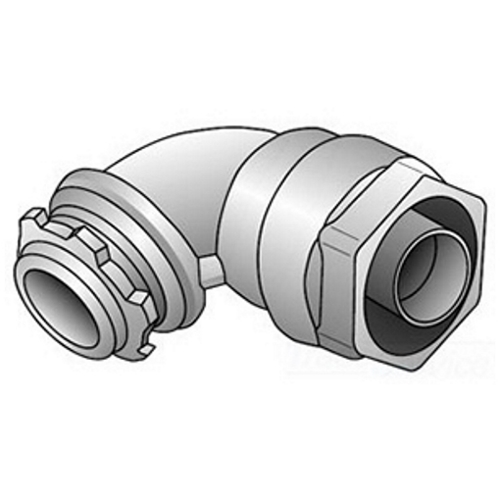

O-Z/Gedney 4Q-950T Type 4Q-T Liquidtight Conduit Connector, 1/2 in Trade, 90 deg, Malleable Iron, Zinc Electroplated
Custom_Product_Images_Illustration
O-Z/Gedney 4Q-950T Type 4Q-T Liquidtight Conduit Connector, 1/2 in Trade, 90 deg, Malleable Iron, Zinc Electroplated
SKU22304
MFGR #4Q-950T
Your Cost: $9.88/ea
List: For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Liquidtight Flexible Metal Conduit ARRA Compliant Y Buy American Compliant N Catalog Number 4Q-950T Connection Compression X Tapered MNPT Hub Country of Origin MX Currency USD Dimensions 1-1/4 in Dia EU RoHS Indicator Y Gross Weight Per Pack 0.2900 lb Gross Weight per Pack Metric 0.13 Gross Weight UOM Metric kg Height 0.34 in Height [Metric] 8.6360 mm Insulation Insulated Throat Length 5.40 in Length [Metric] 13.7160 cm NEMA Rating NEMA 4 Size 1/2 in Suitable For Use With Flexible Metallic Liquidtight Conduit Type Type 4Q-T Liquid Tight 90 DEG Connector UNSPSC 39121420 UPC 11 78312661860 UPC 12 783126618600 Width 5.40 in Width [Metric] 13.7160 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Angle 90 deg Finish Zinc Electroplated Material Malleable Iron Body And Nut, Steel Ferrule Trade Size 1/2 in For Liquidtight Flexible Metal Conduit O-Z/Gedney fittings are used with liquidtight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations; 4Q-T fittings have insulated throat to protect against wire damage; Used to secure, ground and seal liquidtight flexible metal conduit, Type LFMC, to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Suitable for grounding through 1-1/4 IN trade size (for larger trade sizes, an internal or external equipment bonding conductor is required); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Reusable ferrule; Inspection windows in ferr Compact, slim diameter with small turning radius Furnished with locknut and knockout sealing ring Tapered threaded male hub NPT Bonding wedge locknuts are recommended in hazardous locations Long ferrule prevents pullout and tight bend conduit pop-out Reusable ferrule Inspection windows in ferrule to ensure full engagement Reusable ferrule Inspection windows in ferrule to ensure full engagement Compact, slim diameter with small turning radius Insulated throat For Trade Sizes 1-1/2 in and larger, an internal or external equipment bonding conductor is required Malleable Iron Body and Nut, Steel Ferrule
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Liquidtight Flexible Metal Conduit |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | 4Q-950T |
| Connection | Compression X Tapered MNPT Hub |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-1/4 in Dia |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2900 lb |
| Gross Weight per Pack Metric | 0.13 |
| Gross Weight UOM Metric | kg |
| Height | 0.34 in |
| Height [Metric] | 8.6360 mm |
| Insulation | Insulated Throat |
| Length | 5.40 in |
| Length [Metric] | 13.7160 cm |
| NEMA Rating | NEMA 4 |
| Size | 1/2 in |
| Suitable For Use With | Flexible Metallic Liquidtight Conduit |
| Type | Type 4Q-T Liquid Tight 90 DEG Connector |
| UNSPSC | 39121420 |
| UPC 11 | 78312661860 |
| UPC 12 | 783126618600 |
| Width | 5.40 in |
| Width [Metric] | 13.7160 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Angle | 90 deg |
| Finish | Zinc Electroplated |
| Material | Malleable Iron Body And Nut, Steel Ferrule |
| Trade Size | 1/2 in |
| For Liquidtight Flexible Metal Conduit |
| O-Z/Gedney fittings are used with liquidtight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations; 4Q-T fittings have insulated throat to protect against wire damage; Used to secure, ground and seal liquidtight flexible metal conduit, Type LFMC, to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Suitable for grounding through 1-1/4 IN trade size (for larger trade sizes, an internal or external equipment bonding conductor is required); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Reusable ferrule; Inspection windows in ferr |
| Compact, slim diameter with small turning radius |
| Furnished with locknut and knockout sealing ring |
| Tapered threaded male hub NPT |
| Bonding wedge locknuts are recommended in hazardous locations |
| Long ferrule prevents pullout and tight bend conduit pop-out |
| Reusable ferrule |
| Inspection windows in ferrule to ensure full engagement |
| Reusable ferrule |
| Inspection windows in ferrule to ensure full engagement |
| Compact, slim diameter with small turning radius |
| Insulated throat |
| For Trade Sizes 1-1/2 in and larger, an internal or external equipment bonding conductor is required |
| Malleable Iron Body and Nut, Steel Ferrule |
