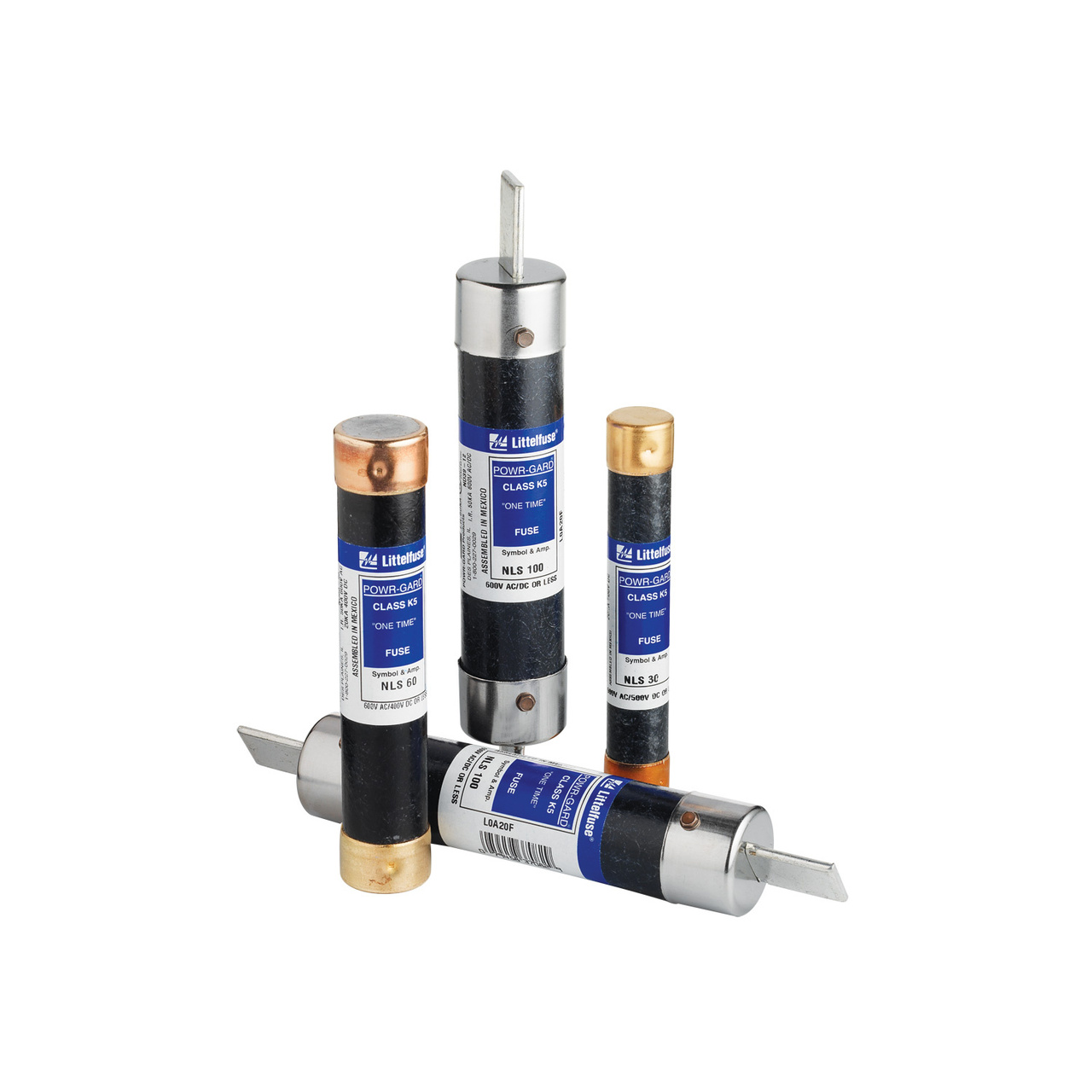

Littelfuse® NLS100 POWR-GARD® NLS Fast Blow One-Time Fuse, 100 A, 600 VAC/VDC, 50 kA Interrupt, Class K5, Cartridge Body
Custom_Product_Images_Illustration
Littelfuse® NLS100 POWR-GARD® NLS Fast Blow One-Time Fuse, 100 A, 600 VAC/VDC, 50 kA Interrupt, Class K5, Cartridge Body
SKU290672
MFGR #NLS100
Your Cost: $56.20/ea
List: NLS series fuses provide low cost protection for general purpose feeder and branch circuits when available short circuit currents are less than 50,000 amperes. they replace all class H fuses which have only a 10,000 ampere interrupting rating. they are suitable for use in many residential and smaller commercial and industrial applications. NLKP series fuses are Canadian "Code" fuses specifically designed to meet Canadian electrical code type P fuse requirements for residential use. they have a 10,000 ampere interrupting rating. However, to obtain the added benefits of time delay, current-limitation, and higher interrupting rating, consider the use of POWR-PRO™ IDSR Indicator™ fuses for circuits between 250 and 600 volts. the user gets all the benefits of time delay RK5 fuses plus the added benefits of a n indicating fuse that tells when it has opened. complete information on these fuses may be found in the POWR-PRO™ section of this catalog. for circuits up to 250 volts, see FLNR fuses in this section of the catalog.
NLS series fuses provide low cost protection for general purpose feeder and branch circuits when available short circuit currents are less than 50,000 amperes. they replace all class H fuses which have only a 10,000 ampere interrupting rating. they are suitable for use in many residential and smaller commercial and industrial applications. NLKP series fuses are Canadian "Code" fuses specifically designed to meet Canadian electrical code type P fuse requirements for residential use. they have a 10,000 ampere interrupting rating. However, to obtain the added benefits of time delay, current-limitation, and higher interrupting rating, consider the use of POWR-PRO™ IDSR Indicator™ fuses for circuits between 250 and 600 volts. the user gets all the benefits of time delay RK5 fuses plus the added benefits of a n indicating fuse that tells when it has opened. complete information on these fuses may be found in the POWR-PRO™ section of this catalog. for circuits up to 250 volts, see FLNR fuses in this section of the catalog.
Alternate Catalog Number 0NLS100.V Application General Purpose ARRA Compliant N Body Size 1-5/16 in Dia x 7-7/8 in L Body Type Cartridge Buy American Compliant N Catalog Number NLS100 Country of Origin MX Currency USD EU RoHS Indicator N Gross Weight Per Pack 0.5700 lb Gross Weight per Pack Metric 214.60 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-YQ Mounting Type Holder Series NLS Standard Standard 248-9 UL Listed/CSA Standards RoHS CompliantUL E81895CSA LR29862, Standard 248-9PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD NLS Series Terminal Type Knife Blade Type Class K5 UNSPSC 39121627 UPC 11 07945837082 UPC 12 079458370829 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 100 A Class K5 Interrupt Rating 50 kA Voltage Rating 600 VAC//VDC General Purpose Economical/low interrupt For use in applications where lowest initial cost is the major consideration Economical 50 kA at 600 VAC (rms symmetrical) and 50 kA at 600 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0NLS100.V |
| Application | General Purpose |
| ARRA Compliant | N |
| Body Size | 1-5/16 in Dia x 7-7/8 in L |
| Body Type | Cartridge |
| Buy American Compliant | N |
| Catalog Number | NLS100 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.5700 lb |
| Gross Weight per Pack Metric | 214.60 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-YQ |
| Mounting Type | Holder |
| Series | NLS |
| Standard | Standard 248-9 UL Listed/CSA |
| Standards | RoHS CompliantUL E81895CSA LR29862, Standard 248-9PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD NLS Series |
| Terminal Type | Knife Blade |
| Type | Class K5 |
| UNSPSC | 39121627 |
| UPC 11 | 07945837082 |
| UPC 12 | 079458370829 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 100 A |
| Class | K5 |
| Interrupt Rating | 50 kA |
| Voltage Rating | 600 VAC//VDC |
| General Purpose |
| Economical/low interrupt |
| For use in applications where lowest initial cost is the major consideration |
| Economical |
| 50 kA at 600 VAC (rms symmetrical) and 50 kA at 600 VDC interrupt rating |
