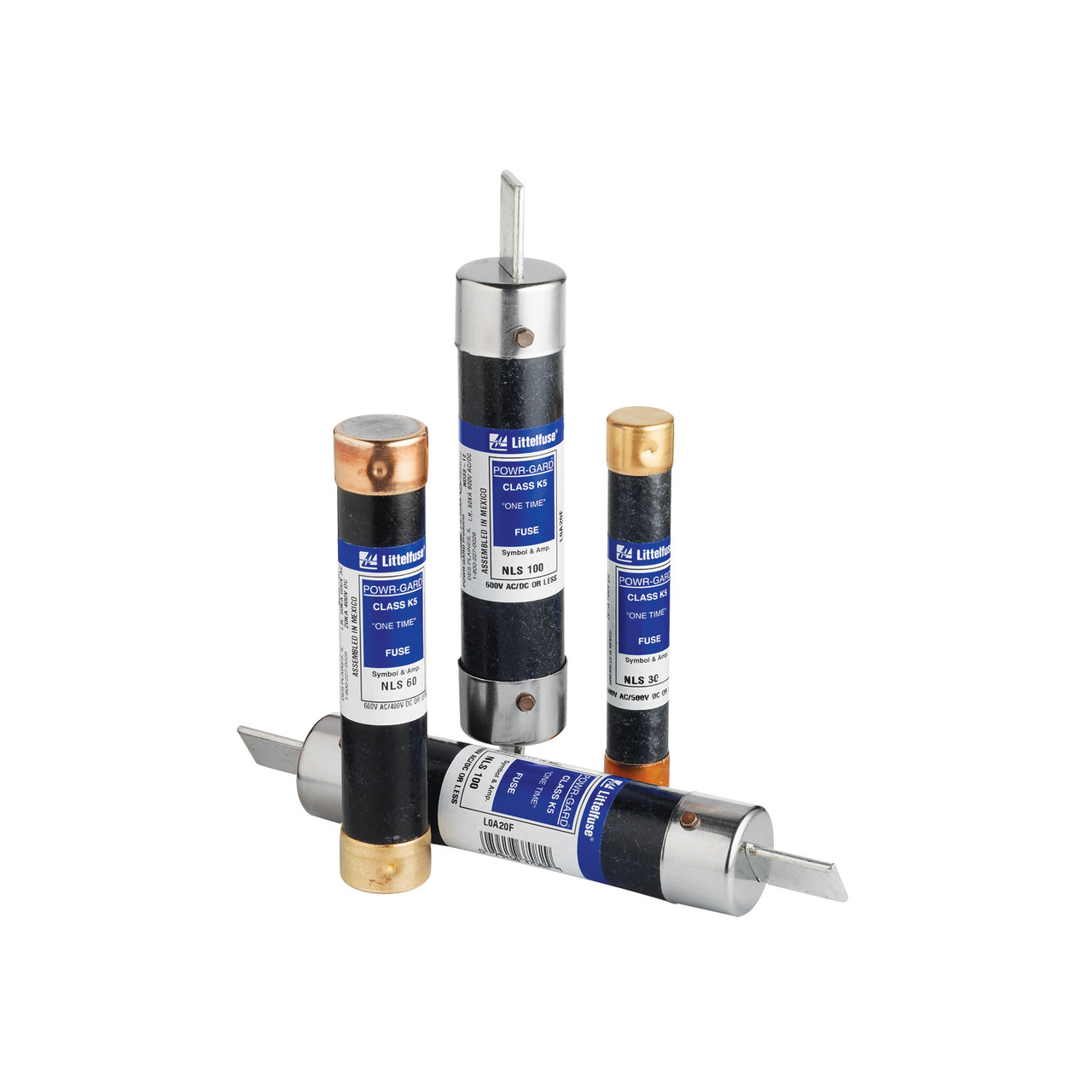

Littelfuse® NLN003 POWR-GARD® NLN Fast Blow One-Time Fuse, 3 A, 250 VAC/VDC, 50/20 kA Interrupt, Class K5, Cartridge Body
Custom_Product_Images_Illustration
Littelfuse® NLN003 POWR-GARD® NLN Fast Blow One-Time Fuse, 3 A, 250 VAC/VDC, 50/20 kA Interrupt, Class K5, Cartridge Body
SKU9426
MFGR #NLN003
Your Cost: $6.51/ea
List: NLN series fuses provide low cost protection for general purpose feeder and branch circuits when available short circuit currents are less than 50,000 amperes. they replace all class H fuses which have only a 10,000 ampere interrupting rating. they are suitable for use in many residential and smaller commercial and industrial applications. NLKP series fuses are Canadian "Code" fuses specifically designed to meet Canadian electrical code type P fuse requirements for residential use. they have a 10,000 ampere interrupting rating. However, to obtain the added benefits of time delay, current-limitation, and higher interrupting rating, consider the use of POWR-PRO™ IDSR Indicator™ fuses for circuits between 250 and 600 volts. the user gets all the benefits of time delay RK5 fuses plus the added benefits of a n indicating fuse that tells when it has opened. complete information on these fuses may be found in the POWR-PRO™ section of this catalog. for circuits up to 250 volts, see FLNR fuses in this section of the catalog.
NLN series fuses provide low cost protection for general purpose feeder and branch circuits when available short circuit currents are less than 50,000 amperes. they replace all class H fuses which have only a 10,000 ampere interrupting rating. they are suitable for use in many residential and smaller commercial and industrial applications. NLKP series fuses are Canadian "Code" fuses specifically designed to meet Canadian electrical code type P fuse requirements for residential use. they have a 10,000 ampere interrupting rating. However, to obtain the added benefits of time delay, current-limitation, and higher interrupting rating, consider the use of POWR-PRO™ IDSR Indicator™ fuses for circuits between 250 and 600 volts. the user gets all the benefits of time delay RK5 fuses plus the added benefits of a n indicating fuse that tells when it has opened. complete information on these fuses may be found in the POWR-PRO™ section of this catalog. for circuits up to 250 volts, see FLNR fuses in this section of the catalog.
Alternate Catalog Number 0NLN003.T Application General Purpose ARRA Compliant N Body Size 9/16 in Dia x 2 in L Body Type Cartridge Buy American Compliant N Catalog Number NLN003 Country of Origin CN Currency USD Element Single EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 13.50 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-YO Mounting Type Holder Series NLN Standard Standard 248-9 UL Listed/CSA Standards RoHS CompliantUL E81895CSA LR29862, Standard 248-9PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD NLN Series Terminal Type Ferrule Type Class K5 UNSPSC 39121627 UPC 11 07945836047 UPC 12 079458360479 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 3 A Class K5 Interrupt Rating 50/20 kA Voltage Rating 250 VAC//VDC General Purpose Economical/low interrupt For use in applications where lowest initial cost is the major consideration Economical 50 kA at 250 VAC (rms symmetrical) and 20 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0NLN003.T |
| Application | General Purpose |
| ARRA Compliant | N |
| Body Size | 9/16 in Dia x 2 in L |
| Body Type | Cartridge |
| Buy American Compliant | N |
| Catalog Number | NLN003 |
| Country of Origin | CN |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 13.50 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-YO |
| Mounting Type | Holder |
| Series | NLN |
| Standard | Standard 248-9 UL Listed/CSA |
| Standards | RoHS CompliantUL E81895CSA LR29862, Standard 248-9PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD NLN Series |
| Terminal Type | Ferrule |
| Type | Class K5 |
| UNSPSC | 39121627 |
| UPC 11 | 07945836047 |
| UPC 12 | 079458360479 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 3 A |
| Class | K5 |
| Interrupt Rating | 50/20 kA |
| Voltage Rating | 250 VAC//VDC |
| General Purpose |
| Economical/low interrupt |
| For use in applications where lowest initial cost is the major consideration |
| Economical |
| 50 kA at 250 VAC (rms symmetrical) and 20 kA at 250 VDC interrupt rating |
