Littelfuse®

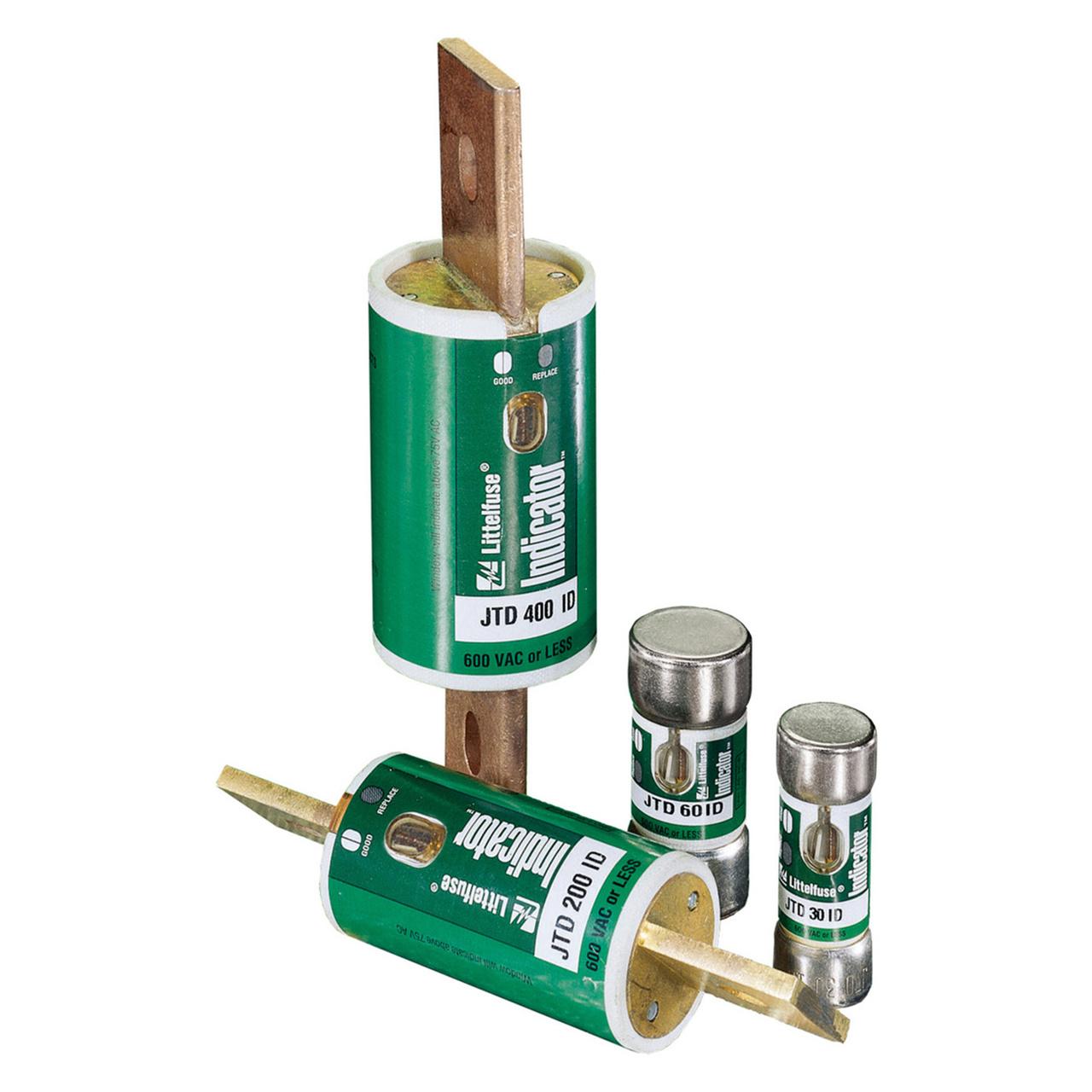

Littelfuse® JTD004ID POWR-GARD® JTD Current Limiting Time Delay Fuse, 4 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class J Series
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® JTD004ID POWR-GARD® JTD Current Limiting Time Delay Fuse, 4 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class J Series
SKU105975
MFGR #JTD004ID
Your Cost: $33.53/ea
List: The Littelfuse POWR-PRO JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.
The Littelfuse POWR-PRO JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.
Alternate Catalog Number 0JTD004.TXID Application MOTOR CONTROL CENTERS ARRA Compliant N Body Size 13/16 in Dia x 2-1/4 in L Body Style Cartridge Buy American Compliant N Catalog Number JTD004ID Country of Origin MX Currency USD Element Dual EU RoHS Indicator N Gross Weight Per Pack 0.9200 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Indicating Item Group 079458-UW Material Melamine Mounting Type Holder Series JTD Standard Standard 248-8 UL Listed/CSA Standards RoHS CompliantUL 248-8E81895CSA LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD JTD Series Terminal Type Ferrule Type Class J UNSPSC 39121606 UPC 11 07945802577 UPC 12 079458025774 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 4 A Class J Interrupt Rating 200/20 kA Voltage Rating 600 VAC/300 VDC Motor Control Centers Time-Delay Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits IEC type 2 protection 200 kA rms symmetrical at 600 VAC/20 kA at 300 VDC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0JTD004.TXID |
| Application | MOTOR CONTROL CENTERS |
| ARRA Compliant | N |
| Body Size | 13/16 in Dia x 2-1/4 in L |
| Body Style | Cartridge |
| Buy American Compliant | N |
| Catalog Number | JTD004ID |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.9200 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Indicating |
| Item Group | 079458-UW |
| Material | Melamine |
| Mounting Type | Holder |
| Series | JTD |
| Standard | Standard 248-8 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-8E81895CSA LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD JTD Series |
| Terminal Type | Ferrule |
| Type | Class J |
| UNSPSC | 39121606 |
| UPC 11 | 07945802577 |
| UPC 12 | 079458025774 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 4 A |
| Class | J |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 600 VAC/300 VDC |
| Motor Control Centers |
| Time-Delay |
| Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately |
| Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement |
| Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory |
| Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory |
| Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage |
| Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters |
| Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits |
| IEC type 2 protection |
| 200 kA rms symmetrical at 600 VAC/20 kA at 300 VDC |
