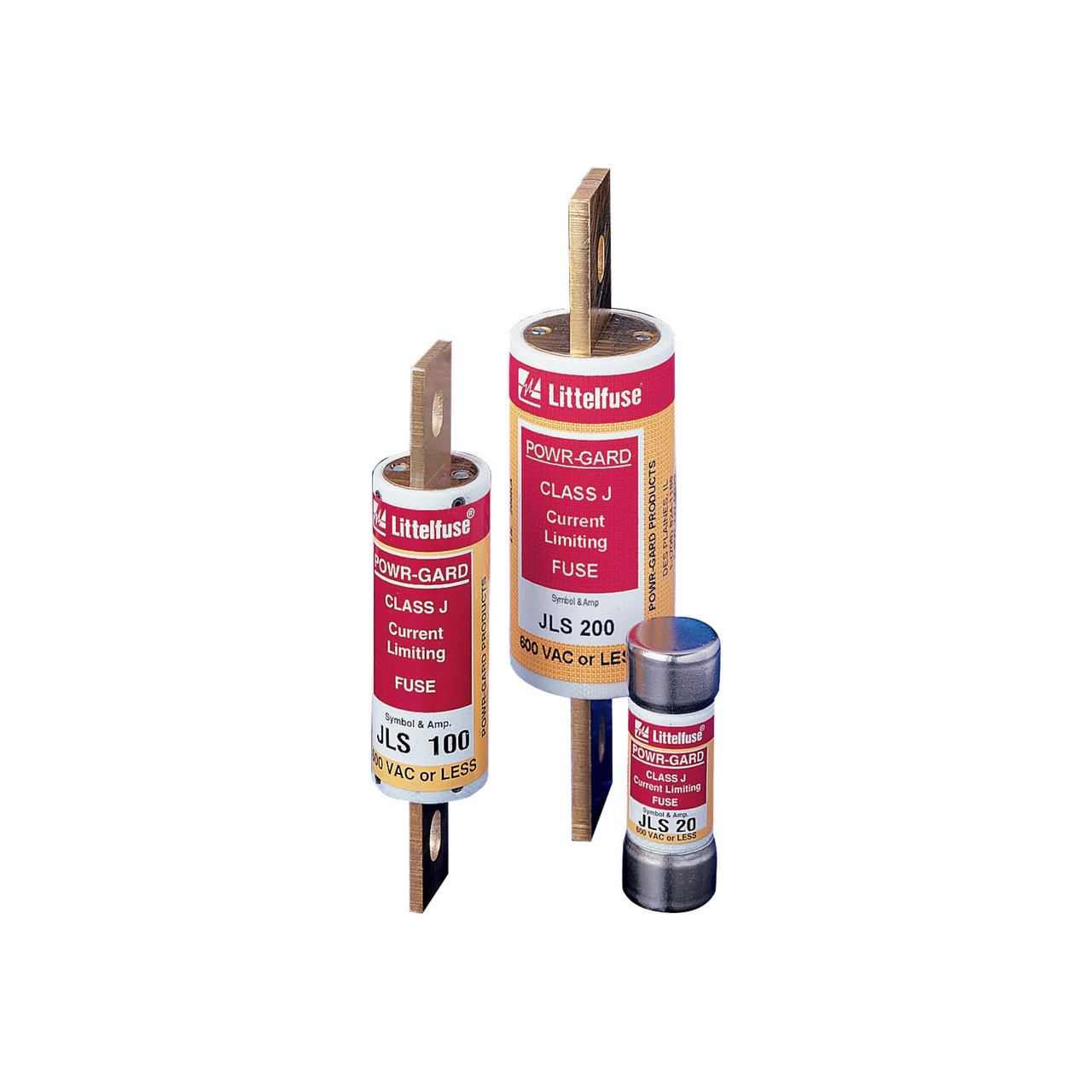

Littelfuse® JLS300 POWR-GARD® JLS High Speed Fast Acting Fuse, 300 A, 600 VAC, 200 kA Interrupt, Class J Series, Cartridge Body
Class J Fuses
73991
MFG #: JLS300
Littelfuse®
377.49000
/ ea
JLS series fuses provide space-saving, Fast-Acting overload and short circuit protection for non-inductive loads. When used for motors or other inductive loads, the ampere rating of JLS series fuses must be increased to prevent nuisance opening on inrush currents. In such applications, JLS fuses may provide only short circuit protection.
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Catalog URL - Littelfuse_315_250P_Catalog.pdf(Catalog URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Tech Drawing URL - 11468_FMHWEZLAK4JQP91V.pdf(Tech Drawing URL)
- Spec Sheet URL - 11468_83D9MV7HZJFNYX6G.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11468_80Y1OURLJQBTXWCP.pdf(Tech Bulletin URL)
- Applications
- Features
| General Purpose |
| Fast-Acting |
| Space saving - JLS fuse characteristics are similar to KLNR/KLSR fast acting class RK1, but they are much smaller |
| Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device |
| Fast acting - provides fast acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components |
| Longer equipment life - current-limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents |
| Economical - extremely current-limiting design often permits use of readily available, less costly equipment |
| Easy to use |
| North American style |
| 200 kA at 600 VAC rms symmetrical |
