Littelfuse®

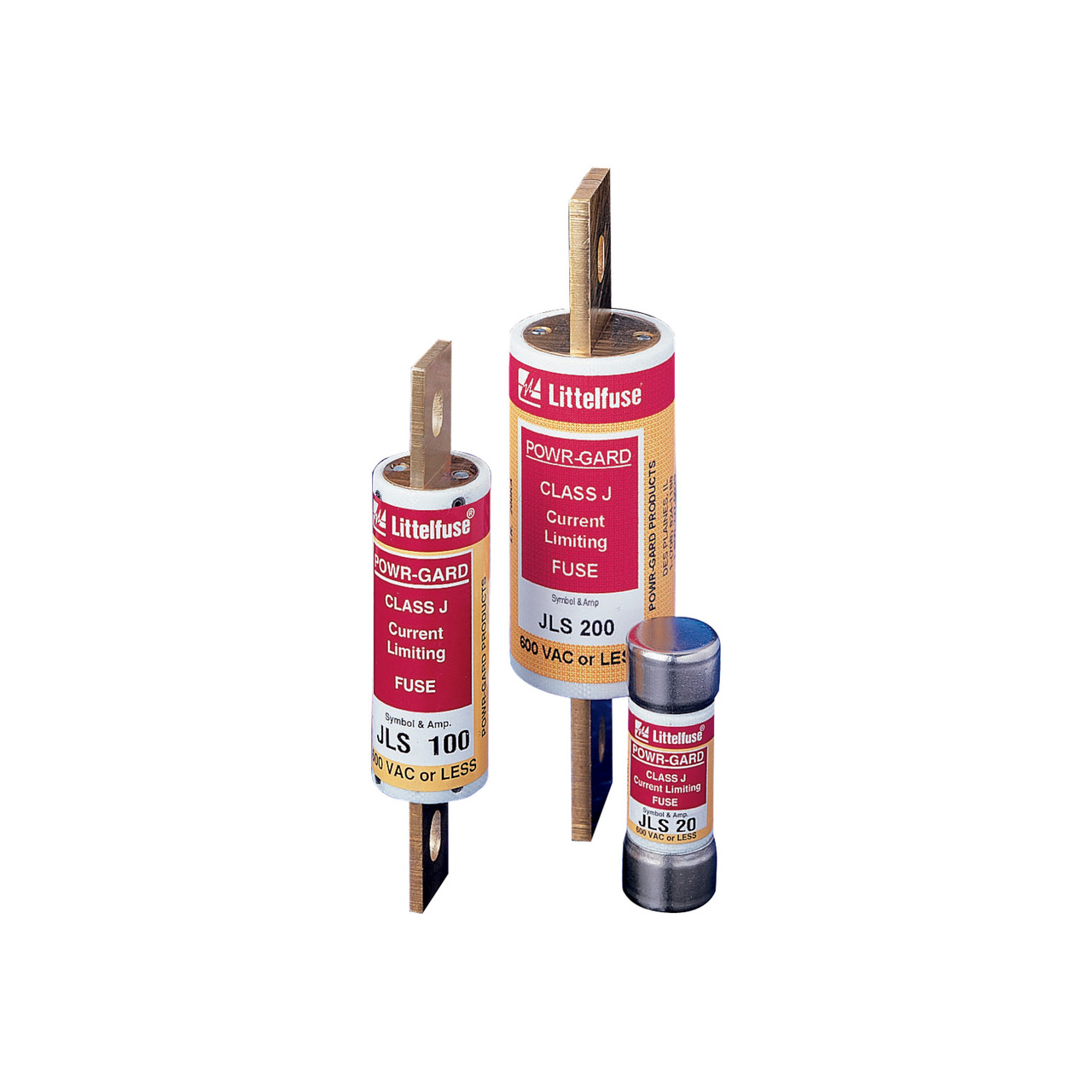

Littelfuse® JLS110 POWR-GARD® JLS High Speed Fast Acting Fuse, 110 A, 600 VAC, 200 kA Interrupt, Class J Series, Cartridge Body
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® JLS110 POWR-GARD® JLS High Speed Fast Acting Fuse, 110 A, 600 VAC, 200 kA Interrupt, Class J Series, Cartridge Body
SKU289686
MFGR #JLS110
Your Cost: $195.85/ea
List: JLS series fuses provide space-saving, Fast-Acting overload and short circuit protection for non-inductive loads. When used for motors or other inductive loads, the ampere rating of JLS series fuses must be increased to prevent nuisance opening on inrush currents. In such applications, JLS fuses may provide only short circuit protection.
JLS series fuses provide space-saving, Fast-Acting overload and short circuit protection for non-inductive loads. When used for motors or other inductive loads, the ampere rating of JLS series fuses must be increased to prevent nuisance opening on inrush currents. In such applications, JLS fuses may provide only short circuit protection.
Alternate Catalog Number 0JLS110.X Application General purpose ARRA Compliant N Body Size 1-1/2 in Dia x 5-3/4 in L Buy American Compliant N Catalog Number JLS110 Country of Origin MX Currency USD Element Single EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.7000 lb Gross Weight per Pack Metric 0.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-UV Material Melamine Mounting Type Bolt Series JLS Standard 248-8 Class J Standards RoHS CompliantUL 248-8E81895CSA LR29862Federal Specification WF-1814 (QPL-W-F-1814)PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD JLS Series Terminal Type Knife Blade Type Class J UNSPSC 39121627 UPC 11 07945820083 UPC 12 079458200836 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 110 A Body Type Cartridge Class J Interrupt Rating 200 kA Voltage Rating 600 VAC General Purpose Fast-Acting Space saving - JLS fuse characteristics are similar to KLNR/KLSR fast acting class RK1, but they are much smaller Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device Fast acting - provides fast acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components Longer equipment life - current-limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents Economical - extremely current-limiting design often permits use of readily available, less costly equipment Easy to use North American style 200 kA at 600 VAC rms symmetrical
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0JLS110.X |
| Application | General purpose |
| ARRA Compliant | N |
| Body Size | 1-1/2 in Dia x 5-3/4 in L |
| Buy American Compliant | N |
| Catalog Number | JLS110 |
| Country of Origin | MX |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.7000 lb |
| Gross Weight per Pack Metric | 0.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-UV |
| Material | Melamine |
| Mounting Type | Bolt |
| Series | JLS |
| Standard | 248-8 Class J |
| Standards | RoHS CompliantUL 248-8E81895CSA LR29862Federal Specification WF-1814 (QPL-W-F-1814)PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD JLS Series |
| Terminal Type | Knife Blade |
| Type | Class J |
| UNSPSC | 39121627 |
| UPC 11 | 07945820083 |
| UPC 12 | 079458200836 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 110 A |
| Body Type | Cartridge |
| Class | J |
| Interrupt Rating | 200 kA |
| Voltage Rating | 600 VAC |
| General Purpose |
| Fast-Acting |
| Space saving - JLS fuse characteristics are similar to KLNR/KLSR fast acting class RK1, but they are much smaller |
| Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device |
| Fast acting - provides fast acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components |
| Longer equipment life - current-limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents |
| Economical - extremely current-limiting design often permits use of readily available, less costly equipment |
| Easy to use |
| North American style |
| 200 kA at 600 VAC rms symmetrical |
