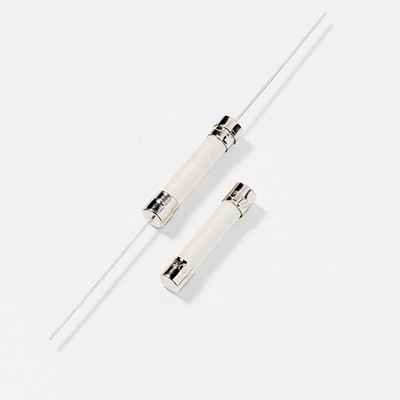

Littelfuse® 314.500P POWR-GARD® 314 Fast Acting Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class K5, Cylindrical Body
Custom_Product_Images_Illustration
Littelfuse® 314.500P POWR-GARD® 314 Fast Acting Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class K5, Cylindrical Body
SKU1169661
MFGR #314.500P
Your Cost: $4.64/ea
List: For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
Alternate Catalog Number 0314.500VXP Application General Purpose ARRA Compliant N Body Size 1/4 in Dia x 1-1/4 in L Body Type Cartridge Buy American Compliant N Catalog Number 314.500P Country of Origin CA Currency USD EU RoHS Indicator C Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-AR Material Ceramic Mounting Type Holder Response Time 1 hr, 4 hr, 15 s Series 314 Standard Standard 248-9 UL Listed/CSA Standards RoHS CompliantStandard 248-6 UL File No. E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD NLS Series Terminal Type Ferrule Type Class K5 UNSPSC 39121627 UPC 11 07945892377 UPC 12 079458923773 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 30 A Class K5 Interrupt Rating 10 kA Voltage Rating 250 VAC General Purpose Economical/low interrupt 3AB Fast-Acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings Ideal for applications where high current loads are expected Nickel-plated brass cap Lead free -55 to 125 deg C of operating temperature 10 kA at 125 VDC interrupting rating 1 hr maximum at 135%, 4 hrs maximum at 100%, 15 sec at 200% of response time 1 hr maximum at 135%, 4 hrs maximum at 100%, 15 sec at 200% of response time
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0314.500VXP |
| Application | General Purpose |
| ARRA Compliant | N |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Type | Cartridge |
| Buy American Compliant | N |
| Catalog Number | 314.500P |
| Country of Origin | CA |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-AR |
| Material | Ceramic |
| Mounting Type | Holder |
| Response Time | 1 hr, 4 hr, 15 s |
| Series | 314 |
| Standard | Standard 248-9 UL Listed/CSA |
| Standards | RoHS CompliantStandard 248-6 UL File No. E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD NLS Series |
| Terminal Type | Ferrule |
| Type | Class K5 |
| UNSPSC | 39121627 |
| UPC 11 | 07945892377 |
| UPC 12 | 079458923773 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 30 A |
| Class | K5 |
| Interrupt Rating | 10 kA |
| Voltage Rating | 250 VAC |
| General Purpose |
| Economical/low interrupt |
| 3AB Fast-Acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings |
| Ideal for applications where high current loads are expected |
| Nickel-plated brass cap |
| Lead free |
| -55 to 125 deg C of operating temperature |
| 10 kA at 125 VDC interrupting rating |
| 1 hr maximum at 135%, 4 hrs maximum at 100%, 15 sec at 200% of response time |
| 1 hr maximum at 135%, 4 hrs maximum at 100%, 15 sec at 200% of response time |
