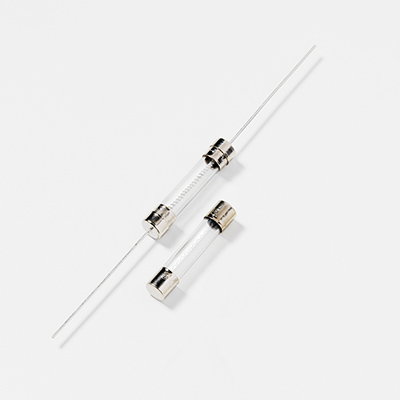

Littelfuse® 31301.2P POWR-GARD® Slo-Blo® 313 Time Delay Cartridge Fuse, 1.2 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Power Fuse
PDW~3267375
MFG #: 31301.2P
Littelfuse®
4.72000
/ ea
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
- Brochure URL - 11468_ZMLGDEHVFOQAW4NX.pdf(Brochure URL)
- Catalog URL - Littelfuse_215_200P_Catalog.pdf(Catalog URL)
- http://www.littelfuse.com(Seller Home Page URL)
- Spec Sheet URL - 11468_AX8U4VEQYISW2KOH.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11468_6UK2DTYNPVGM8REW.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11468_AJESQ7D3G52XW0UH.pdf(Tech Drawing URL)
- Applications
- Features
| TVSS |
| Current-limiting |
| Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids |
| 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies |
| Guesswork and time consuming circuit testing is eliminated |
| Unique design offers the same quality performance characteristics as the standard 3AG fuse design |
| Lead free |
| Nickel-plated brass cap |
| -55 to 125 deg C operating temperature |
| 10 kA at 125 VAC interrupting rating |
| 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time |
| 0.278 ohms nominal cold resistance |
| 21.5 I2T (A2 sec) nominal melting |
