Littelfuse®

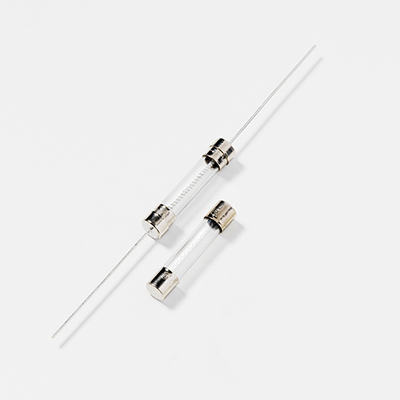

Littelfuse® 313.010P POWR-GARD® Slo-Blo® 313 Time Delay Cartridge Fuse, 0.01 A, 250 VAC, 10 kA Interrupt, Class RK1
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® 313.010P POWR-GARD® Slo-Blo® 313 Time Delay Cartridge Fuse, 0.01 A, 250 VAC, 10 kA Interrupt, Class RK1
SKUPDW~3267349
MFGR #313.010P
Your Cost: $28.71/ea
List: The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
Alternate Catalog Number 0313.010VXP Application All general purpose circuits ARRA Compliant N Body Size 1/4 in Dia x 1-1/4 in L Body Type Cartridge Buy American Compliant N Catalog Number 313.010P Country of Origin CA Currency USD EU RoHS Indicator C Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-AB Material Glass Mounting Type Holder Response Time 4 hr, 1 hr, 5 to 30 s Series 313 Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12UL File No. E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD LLSRK Series Terminal Type Ferrule Type Class RK1 UNSPSC 39121627 UPC 11 07945892239 UPC 12 079458922394 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 250m A Class RK1 Interrupt Rating 10 kA Voltage Rating 250 VAC All general purpose circuits Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies Time-Delay Guesswork and time consuming circuit testing is eliminated Unique design offers the same quality performance characteristics as the standard 3AG fuse design Lead free Nickel-plated brass cap -55 to 125 deg C operating temperature 10 kA at 125 VAC interrupting rating 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time 4300 ohms nominal cold resistance 0.000121 I2T (A2 sec) nominal melting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0313.010VXP |
| Application | All general purpose circuits |
| ARRA Compliant | N |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Type | Cartridge |
| Buy American Compliant | N |
| Catalog Number | 313.010P |
| Country of Origin | CA |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-AB |
| Material | Glass |
| Mounting Type | Holder |
| Response Time | 4 hr, 1 hr, 5 to 30 s |
| Series | 313 |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12UL File No. E10480CSA 29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD LLSRK Series |
| Terminal Type | Ferrule |
| Type | Class RK1 |
| UNSPSC | 39121627 |
| UPC 11 | 07945892239 |
| UPC 12 | 079458922394 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 250m A |
| Class | RK1 |
| Interrupt Rating | 10 kA |
| Voltage Rating | 250 VAC |
| All general purpose circuits |
| Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids |
| 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies |
| Time-Delay |
| Guesswork and time consuming circuit testing is eliminated |
| Unique design offers the same quality performance characteristics as the standard 3AG fuse design |
| Lead free |
| Nickel-plated brass cap |
| -55 to 125 deg C operating temperature |
| 10 kA at 125 VAC interrupting rating |
| 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time |
| 4300 ohms nominal cold resistance |
| 0.000121 I2T (A2 sec) nominal melting |
