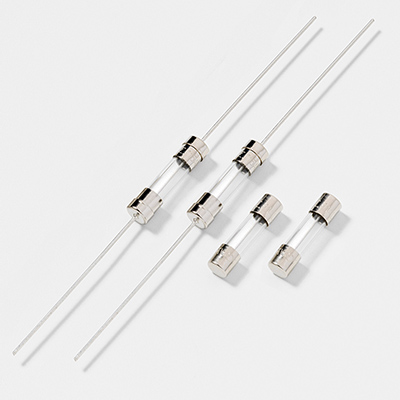

Littelfuse® 239001P Slo-Blo® 239 Fast Acting Time Delay Cartridge Fuse, 1 A, 250 VAC, 10 kA Interrupt, Class T Series
Custom_Product_Images_Illustration
Littelfuse® 239001P Slo-Blo® 239 Fast Acting Time Delay Cartridge Fuse, 1 A, 250 VAC, 10 kA Interrupt, Class T Series
SKU454180
MFGR #239001P
Your Cost: $4.45/ea
List: For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
Alternate Catalog Number 0239001.VXP Application Variable Speed Drives ARRA Compliant N Body Size 5.2 mm Dia x 20 mm L Body Type Cartridge Buy American Compliant N Catalog Number 239001P Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-K1 Material Glass Mounting Type Holder Response Time 4 hr, 1 hr, 2 min Series 239 Standard 248-15 Class T Standards RoHS CompliantUL 248-12UL 198MCSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD JLLS Series Type Class T UNSPSC 39121627 UPC 11 07945890968 UPC 12 079458909685 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 10 A Class T Interrupt Rating 10 kA Voltage Rating 250 VAC Variable Speed Drives Fast-Acting Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits 0.2965 ohms resistance 11.295 I2T (A2 sec) nominal melting -55 to 125 deg C operating temperature 4 hrs minimum at 100%, 1 hr maximum at 135%, 2 min maximum at 200% Nickel-plated brass cap, tin plated copper leads 10 kA at 125 VAC interrupting rating 10 kA at 125 VAC interrupting rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 0239001.VXP |
| Application | Variable Speed Drives |
| ARRA Compliant | N |
| Body Size | 5.2 mm Dia x 20 mm L |
| Body Type | Cartridge |
| Buy American Compliant | N |
| Catalog Number | 239001P |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-K1 |
| Material | Glass |
| Mounting Type | Holder |
| Response Time | 4 hr, 1 hr, 2 min |
| Series | 239 |
| Standard | 248-15 Class T |
| Standards | RoHS CompliantUL 248-12UL 198MCSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD JLLS Series |
| Type | Class T |
| UNSPSC | 39121627 |
| UPC 11 | 07945890968 |
| UPC 12 | 079458909685 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 10 A |
| Class | T |
| Interrupt Rating | 10 kA |
| Voltage Rating | 250 VAC |
| Variable Speed Drives |
| Fast-Acting |
| Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits |
| 0.2965 ohms resistance |
| 11.295 I2T (A2 sec) nominal melting |
| -55 to 125 deg C operating temperature |
| 4 hrs minimum at 100%, 1 hr maximum at 135%, 2 min maximum at 200% |
| Nickel-plated brass cap, tin plated copper leads |
| 10 kA at 125 VAC interrupting rating |
| 10 kA at 125 VAC interrupting rating |
