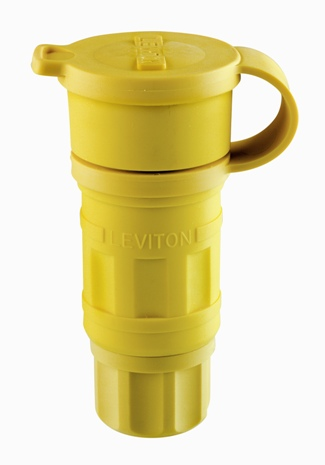

Leviton® Wetguard® 27W47 Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Leviton® Wetguard® 27W47 Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU393906
MFGR #27W47
$/ea
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 27W47 Color Family Yellow Connection Screwed Terminal Cord Diameter 3/8 to 7/8 in Cord Type SO;SOO;ST;STO Country of Origin MX Currency USD Dimensions 2.5 in Dia x 5.52 in L Environmental Conditions Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 7.8000 lb Gross Weight per Pack Metric 0.35 Gross Weight UOM Metric kg Height 12.0000 in Height [Metric] 5.8674 cm Length 16.0000 in Material TPV Mounting Cable NEMA Rating L5-20R Number Of Poles 2 Phase 1 Size 2.50 Diameter X 5.52 L in Standard ANSI (C-73);CSA (C22.2 No.42);NEMA (WD-1, WD-6);NOM Certified (057);UL (498) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No.42 File No. LR406NOM 057NEMA WD1/WD6UL 498UL94 V-2 Flammability Rating Sub Brand Wetguard Temperature Rating -40 to 60 °C Terminal Type Screw Type Locking;Watertight Connector UNSPSC 39121402 UPC 11 07847796772 UPC 12 078477967720 Wire Size 16-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Yellow Number of Wires 3 Voltage Rating 125 V Industrial Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps, and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents Connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal Non-magnetic stainless steel fast-threading assembly screws wont interfere with sensitive equipment Connector "hood" closure cap seals device when not in use Grounding 1 phase 16 - 10 AWG terminal accommodation Cable mounting UL 94-V2 flammability rating SO, ST, STO, SOO cords Watertight
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 27W47 |
| Color Family | Yellow |
| Connection | Screwed Terminal |
| Cord Diameter | 3/8 to 7/8 in |
| Cord Type | SO;SOO;ST;STO |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.5 in Dia x 5.52 in L |
| Environmental Conditions | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 7.8000 lb |
| Gross Weight per Pack Metric | 0.35 |
| Gross Weight UOM Metric | kg |
| Height | 12.0000 in |
| Height [Metric] | 5.8674 cm |
| Length | 16.0000 in |
| Material | TPV |
| Mounting | Cable |
| NEMA Rating | L5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 2.50 Diameter X 5.52 L in |
| Standard | ANSI (C-73);CSA (C22.2 No.42);NEMA (WD-1, WD-6);NOM Certified (057);UL (498) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73CSA C22.2 No.42 File No. LR406NOM 057NEMA WD1/WD6UL 498UL94 V-2 Flammability Rating |
| Sub Brand | Wetguard |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Locking;Watertight Connector |
| UNSPSC | 39121402 |
| UPC 11 | 07847796772 |
| UPC 12 | 078477967720 |
| Wire Size | 16-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial |
| Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps, and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments |
| EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents |
| Connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse |
| Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors |
| Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal |
| Non-magnetic stainless steel fast-threading assembly screws wont interfere with sensitive equipment |
| Connector "hood" closure cap seals device when not in use |
| Grounding |
| 1 phase |
| 16 - 10 AWG terminal accommodation |
| Cable mounting |
| UL 94-V2 flammability rating |
| SO, ST, STO, SOO cords |
| Watertight |
