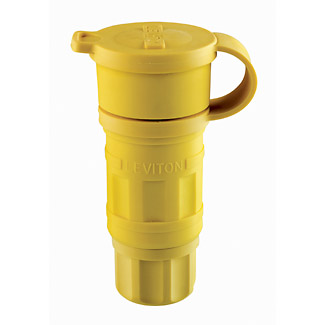

Leviton® Wetguard® 15W33 Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Leviton® Wetguard® 15W33 Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU8600
MFGR #15W33
Your Cost: $52.77/ea
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 15W33 Connection Screw Terminal Cord Diameter 0.375 to 0.655 in Cord Type S;ST;SO;SOW Country of Origin MX Currency USD Dimensions 1.78 in Dia x 4.22 in L Enclosure NEMA 4/4X/12/IP66/IP67 Environmental Conditions Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.3900 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Height 12.2500 in Height [Metric] 3.8100 cm Length 15.7500 in Length [Metric] 12.7000 cm Material TPV Mounting Cable NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 1.78 Diameter X 4.22 L in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73NOM 057NEMA WD-1/WD-6UL 498CSA C22.2 No. 42UL94 V-2 Flammability Rating Sub Brand Wetguard Temperature Rating -40 to 60 °C Terminal Type Screw Type Watertight Connector;Straight Blade UNSPSC 39121402 UPC 11 07847784826 UPC 12 078477848265 Width 9.00 in Width [Metric] 22.8600 cm Wire Size 16-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Yellow Number of Wires 3 Voltage Rating 125 V Industrial Corrosion resistant electroless nickel coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal Non-magnetic stainless steel fast threading assembly screws wont interfere with sensitive equipment Connector hood closure cap seals device when not in use 16 to 10 AWG terminal accommodation S/ST/SO/SOW cord Full rated current 2000V dielectric voltage S, ST, SO, SOW cord 1 phase UL 94-V2 flammability 18 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 15W33 |
| Connection | Screw Terminal |
| Cord Diameter | 0.375 to 0.655 in |
| Cord Type | S;ST;SO;SOW |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.78 in Dia x 4.22 in L |
| Enclosure | NEMA 4/4X/12/IP66/IP67 |
| Environmental Conditions | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3900 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Height | 12.2500 in |
| Height [Metric] | 3.8100 cm |
| Length | 15.7500 in |
| Length [Metric] | 12.7000 cm |
| Material | TPV |
| Mounting | Cable |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 1.78 Diameter X 4.22 L in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73NOM 057NEMA WD-1/WD-6UL 498CSA C22.2 No. 42UL94 V-2 Flammability Rating |
| Sub Brand | Wetguard |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Watertight Connector;Straight Blade |
| UNSPSC | 39121402 |
| UPC 11 | 07847784826 |
| UPC 12 | 078477848265 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | 16-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial |
| Corrosion resistant electroless nickel coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments |
| EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents |
| Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse |
| Interlocking "tongue and groove" construction seals out water, moisture and dirt when plugs are mated with connectors |
| Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal |
| Non-magnetic stainless steel fast threading assembly screws wont interfere with sensitive equipment |
| Connector hood closure cap seals device when not in use |
| 16 to 10 AWG terminal accommodation |
| S/ST/SO/SOW cord |
| Full rated current |
| 2000V dielectric voltage |
| S, ST, SO, SOW cord |
| 1 phase |
| UL 94-V2 flammability |
| 18 - 10 AWG |
