Leviton®

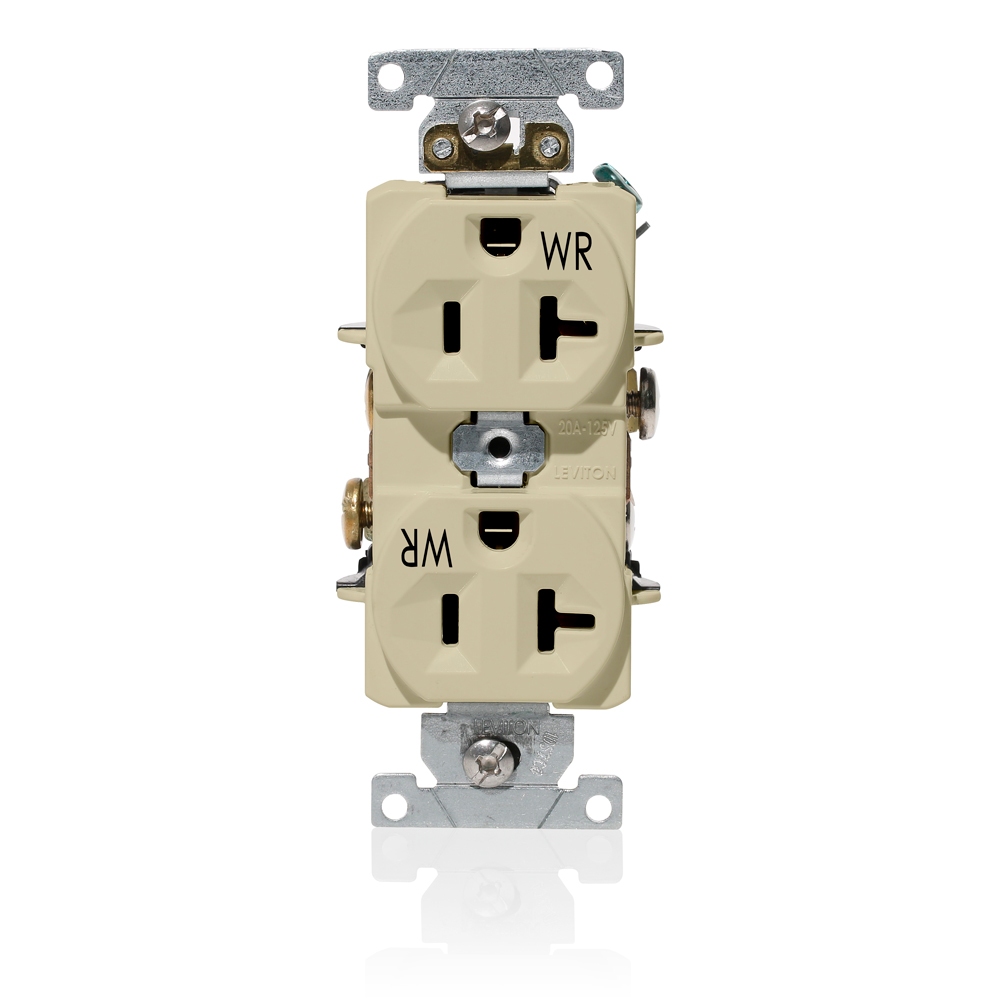

Leviton® WBR20-I WBR20 Duplex Heavy Duty Indented Face Self-Grounding Standard Weather-Resistant Straight Blade Receptacle, 120/125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Leviton®
Leviton® WBR20-I WBR20 Duplex Heavy Duty Indented Face Self-Grounding Standard Weather-Resistant Straight Blade Receptacle, 120/125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU1139720
MFGR #WBR20-I
Your Cost: $18.02/ea
List: Leviton® Straight Blade Receptacle, Duplex Heavy Duty Indented Face Self-Grounding Standard Weather-Resistant, Series: WBR20, 120/125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Ivory, 4.06 in H x 1.71 in W x 1.07 in D Dimensions
Leviton® Straight Blade Receptacle, Duplex Heavy Duty Indented Face Self-Grounding Standard Weather-Resistant, Series: WBR20, 120/125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Ivory, 4.06 in H x 1.71 in W x 1.07 in D Dimensions
Application Industrial, Educational Facilities, Office Environments, Commercial/Retail Facilities, Hospital ARRA Compliant C Buy American Compliant C Catalog Number WBR20-I Country of Origin MX Currency USD Dimensions 4.06 in H x 1.71 in W x 1.07 in D EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.2100 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.5000 in Horsepower 1 Length 12.7500 in Material PBT Polyester Blend NEMA Rating NEMA 5-20R Number Of Poles 2 Series WBR20 Standard UL 498 Temperature Rating -40 to 75 Terminal Type Back/Side Wired Type Duplex Heavy Duty Indented Face Self-Grounding Standard Weather-Resistant UNSPSC 39121406 UPC 11 07847790786 UPC 12 078477907863 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 120/125 V Industrial, Educational Facilities, Office Environments, Commercial/Retail Facilities, Hospital Weather-Resistant Brass self-grounding clip is permanently staked on for secure and reliable performance Wide receptacle face shelf provides exceptional support to the wallplate or box cover Body and face made of impact-resistant advanced engineering polymer for extreme durability Universal strap design provides ample support for electrical box installations and includes multiple break-off Ground terminal clamp allows for both back and side wiring Oversized brass terminal screw heads provide superior clamping force and electrical conductivity External wiring clamps allow for back or side wiring and provide visual verification of termina Molded in ribs prevent terminal screws from making contact with wall box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial, Educational Facilities, Office Environments, Commercial/Retail Facilities, Hospital |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | WBR20-I |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.06 in H x 1.71 in W x 1.07 in D |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2100 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.5000 in |
| Horsepower | 1 |
| Length | 12.7500 in |
| Material | PBT Polyester Blend |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Series | WBR20 |
| Standard | UL 498 |
| Temperature Rating | -40 to 75 |
| Terminal Type | Back/Side Wired |
| Type | Duplex Heavy Duty Indented Face Self-Grounding Standard Weather-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 07847790786 |
| UPC 12 | 078477907863 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 120/125 V |
| Industrial, Educational Facilities, Office Environments, Commercial/Retail Facilities, Hospital |
| Weather-Resistant |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and includes multiple break-off |
| Ground terminal clamp allows for both back and side wiring |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivity |
| External wiring clamps allow for back or side wiring and provide visual verification of termina |
| Molded in ribs prevent terminal screws from making contact with wall box |
