Leviton®

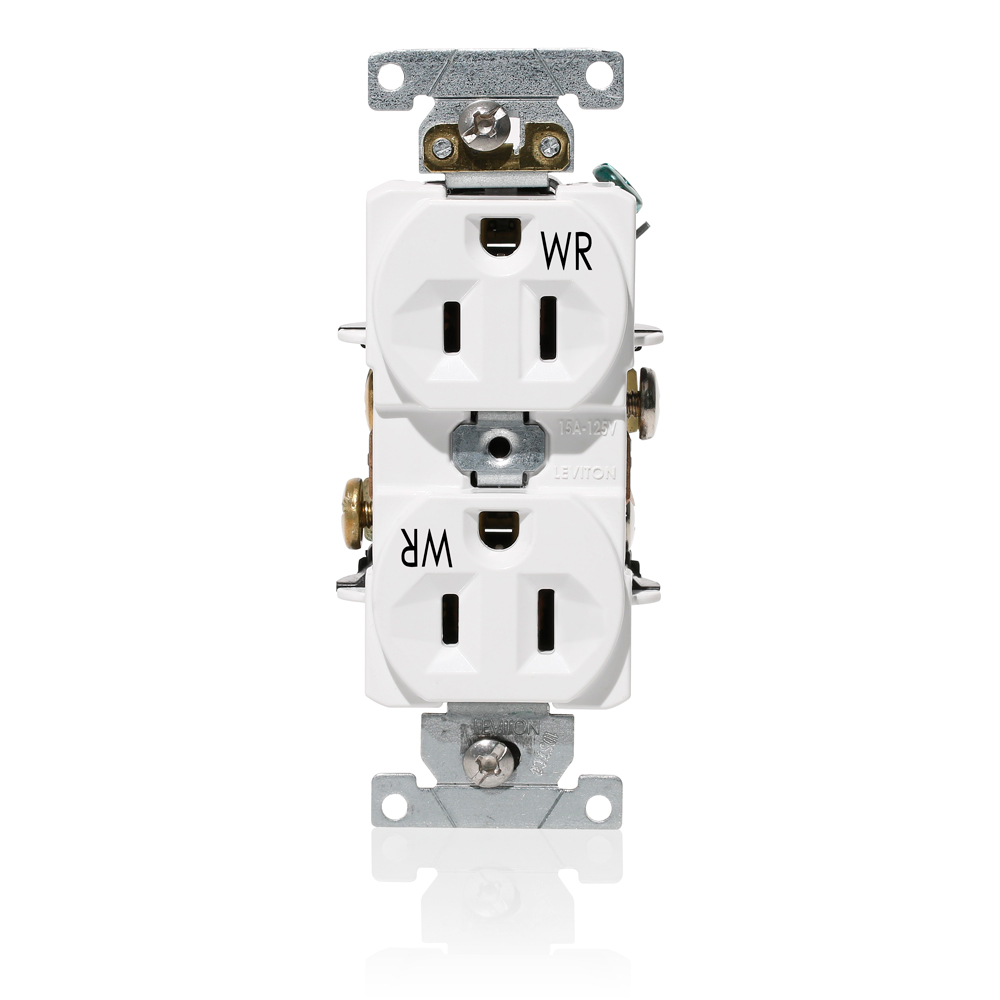

Leviton® WBR15-W Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® WBR15-W Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU675133
MFGR #WBR15-W
Your Cost: $14.99/ea
List: Leviton offers a large selection of 15 and 20 Amp commercial spec grade receptacles, including Decora® devices* available in a wide variety of colours, wiring options and other features. Leviton's commercial receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long-lasting service life and are a cost-saving alternative to the industrial devices.
Leviton offers a large selection of 15 and 20 Amp commercial spec grade receptacles, including Decora® devices* available in a wide variety of colours, wiring options and other features. Leviton's commercial receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long-lasting service life and are a cost-saving alternative to the industrial devices.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number WBR15-W Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.53 in W x 1.11 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.5000 in Horsepower 1/2 hp Length 12.7500 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-15R Number Of Poles 2 Phase 1 Size 46 H x 1.53 W x 1.11 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498 File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847739593 UPC 12 078477395936 Width 1.53 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Commercial Manufactured to withstand the demands of commercial and institutional applications Heavy-duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box Self grounding Nickel plated brass triple wipe line contacts Nickel plated brass 10-32 terminal screws Max 30C after 100 cycles OL at 150 percent rated current Duplex, weather resistant 14 - 10 AWG wire size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | WBR15-W |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.53 in W x 1.11 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.5000 in |
| Horsepower | 1/2 hp |
| Length | 12.7500 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.53 W x 1.11 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847739593 |
| UPC 12 | 078477395936 |
| Width | 1.53 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy-duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
| Self grounding |
| Nickel plated brass triple wipe line contacts |
| Nickel plated brass 10-32 terminal screws |
| Max 30C after 100 cycles OL at 150 percent rated current |
| Duplex, weather resistant |
| 14 - 10 AWG wire size |
